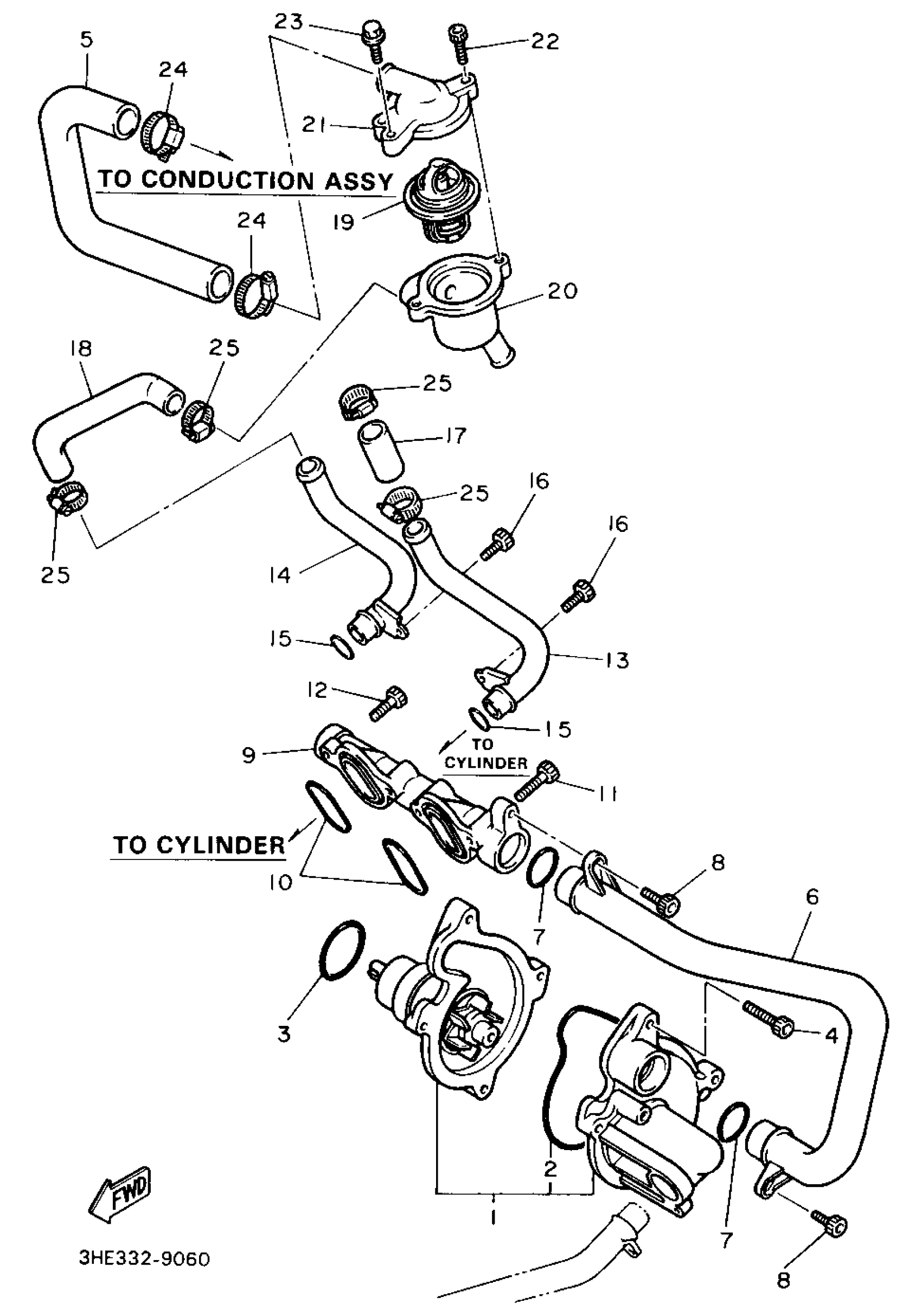

Yamaha FZR600W (FZR600) 1989 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

2TK-Y1242-00-00

Unavailable

2

O-RING

1WG-12439-00-00

$27.99

3

O-RING (626)

93210-33133-00

$2.92

4

BOLT,SOCKET

91317-06035-00

Unavailable

5

HOSE 4

3HE-12579-00-00

Unavailable

6

PIPE 1

1WG-12481-00-00

Unavailable

7

O-RING

93210-21190-00

$7.49

8

BOLT,SOCKET

91317-06012-00

$8.49

9

J0INT

1WG-12446-01-00

Unavailable

10

O-RING(1WG)

93210-17746-00

$7.49

11

BOLT,SOCKET

91317-06040-00

$3.76

12

BOLT,SOCKET

91317-06025-00

$5.60

13

PIPE 2

1WG-12482-00-00

Unavailable

14

PIPE 3

1WG-12483-00-00

Unavailable

15

O-RING (22U)

93210-15566-00

$7.49

16

BOLT,SOCKET

91317-06012-00

$8.49

17

HOSE 1

3HE-12576-00-00

Unavailable

18

HOSE 2

3HE-12577-00-00

Unavailable

19

THERMOSTAT ASSY

46X-12410-01-00

Unavailable

20

HOUSING, THERMOSTAT

1WG-12417-00-00

Unavailable

21

1500 1500

1WG-12413-01-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

BOLT, FLANGE

95817-06020-00

Unavailable

24

HOSE CLAMP ASSY

90450-32015-00

Unavailable

25

HOSE CLAMP ASSY

90450-28001-00

Unavailable
