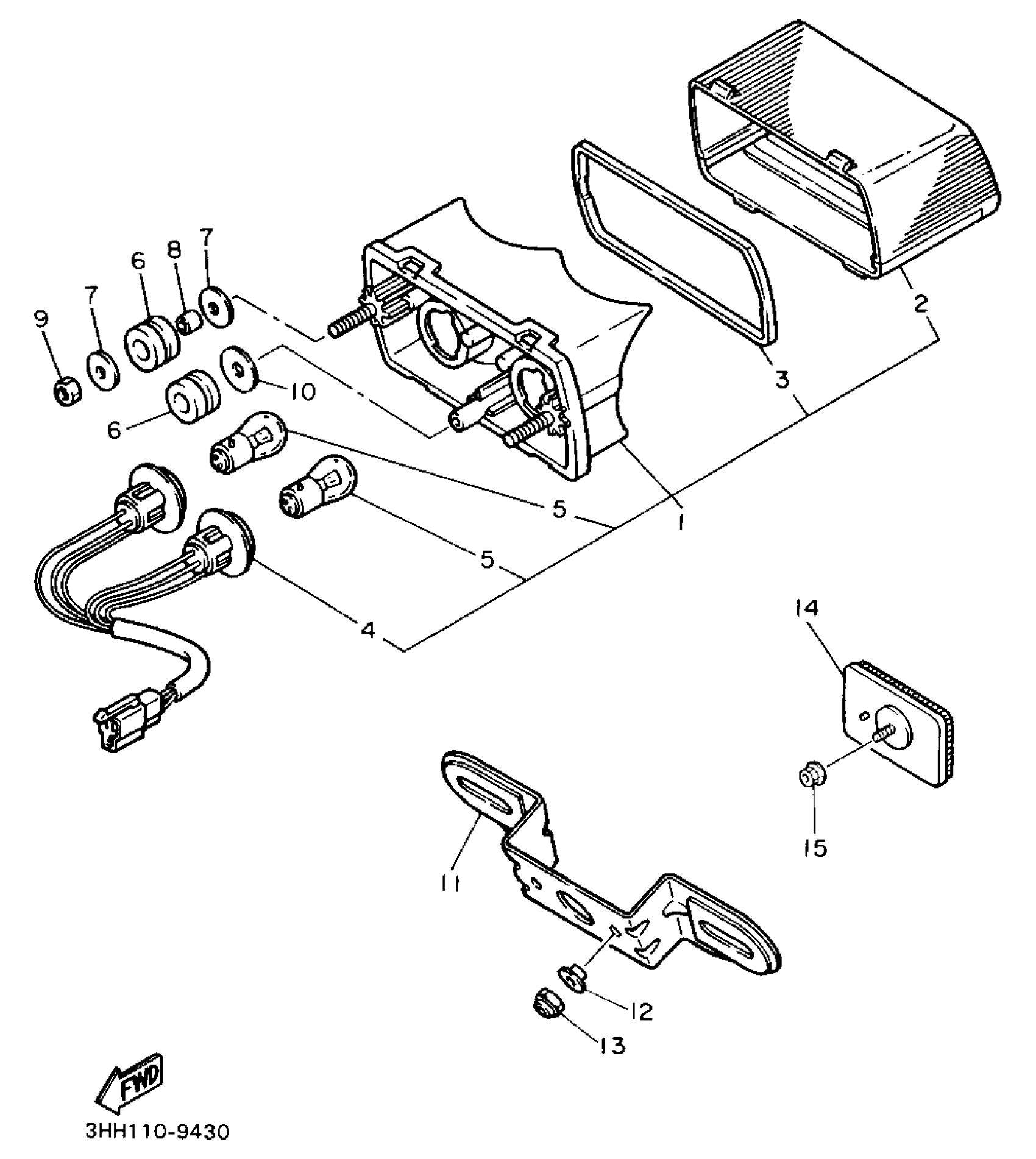

Yamaha FZR600W (FZR600) 1989 TAILLIGHT Diagram

TAILLIGHT UNIT ASSEMBLY

52X-84710-60-00

Unavailable

LENS, TAILLIGHT

47X-84721-00-00

$59.99

GASKET, TAIL LENS

47X-84723-00-00

Unavailable

. CORD ASSEMBLY

47X-84735-00-00

Unavailable

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

GROMMET

90480-18407-00

Unavailable

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

COLLAR(1AE)

90387-060N3-00

$10.49

NUT, HEXAGON

95380-06600-00

Unavailable

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

BRACKET, LICENSE

2LJ-84751-00-90

Unavailable

COLLAR(47X)

90387-061M0-00

$8.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

NUT, FLANGE(3GM)

95707-05500-00

$8.49
