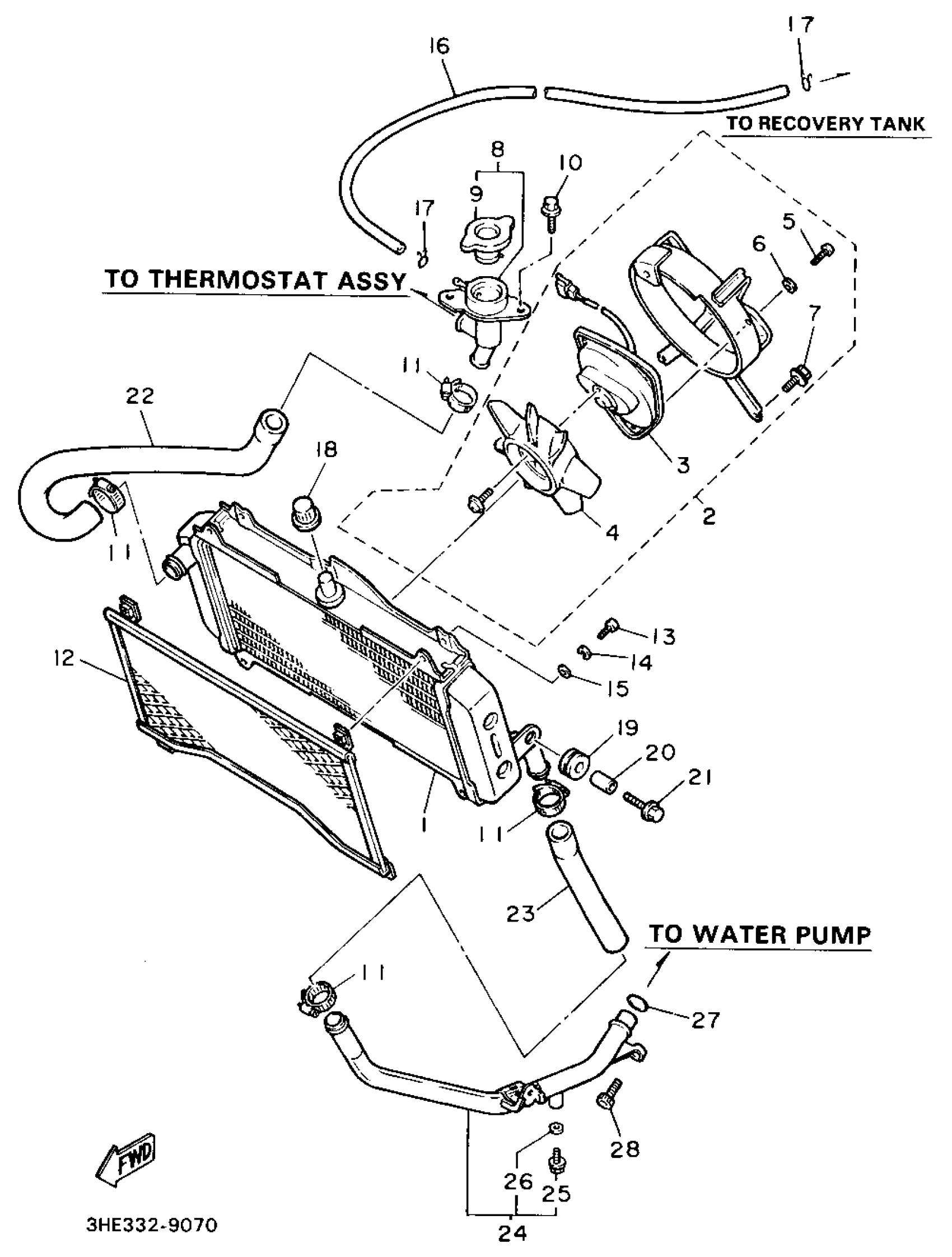

Yamaha FZR600W (FZR600) 1989 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

3HE-12461-00-00

Unavailable

2

BLOWER ASSEMBLY

3HE-12405-00-00

Unavailable

3

MOTOR ASSEMBLY

1AA-12630-00-00

Unavailable

4

FAN

1UF-12611-00-00

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

6

WASHER, PLAIN (646)

92990-05600-00

Unavailable

7

BOLT, WITH WASHER

90119-06242-00

$5.47

8

CONDUCTION ASSEMBLY

2TK-12590-00-00

Unavailable

9

CAP, RADIATOR

4FL-12462-00-00

$53.09

10

BOLT, FLANGE

95817-06010-00

$3.65

11

HOSE CLAMP ASSY

90450-32015-00

$14.22

12

PROTECTOR

3HE-12498-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$2.93

14

WASHER, SPRING

92907-06100-00

$0.98

15

WASHER(6TA)

92907-06600-00

$0.73

16

HOSE (L1500)

90445-090F6-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

18

PLUG(1WG)

90338-20188-00

Unavailable

19

GROMMET(1WG)

90480-15483-00

Unavailable

20

COLLAR(2UJ)

90387-061V1-00

Unavailable

21

BOLT, FLANGE

95817-06025-00

Unavailable

22

HOSE 3

3HE-12578-00-00

Unavailable

23

HOSE 5

3HE-12588-00-00

Unavailable

24

PIPE 4

2TK-12484-00-00

Unavailable

25

SCREW

90153-06029-00

Unavailable

26

GASKET 256113960000

90430-06014-00

Unavailable

27

O-RING

93210-21190-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06142-00

Unavailable
