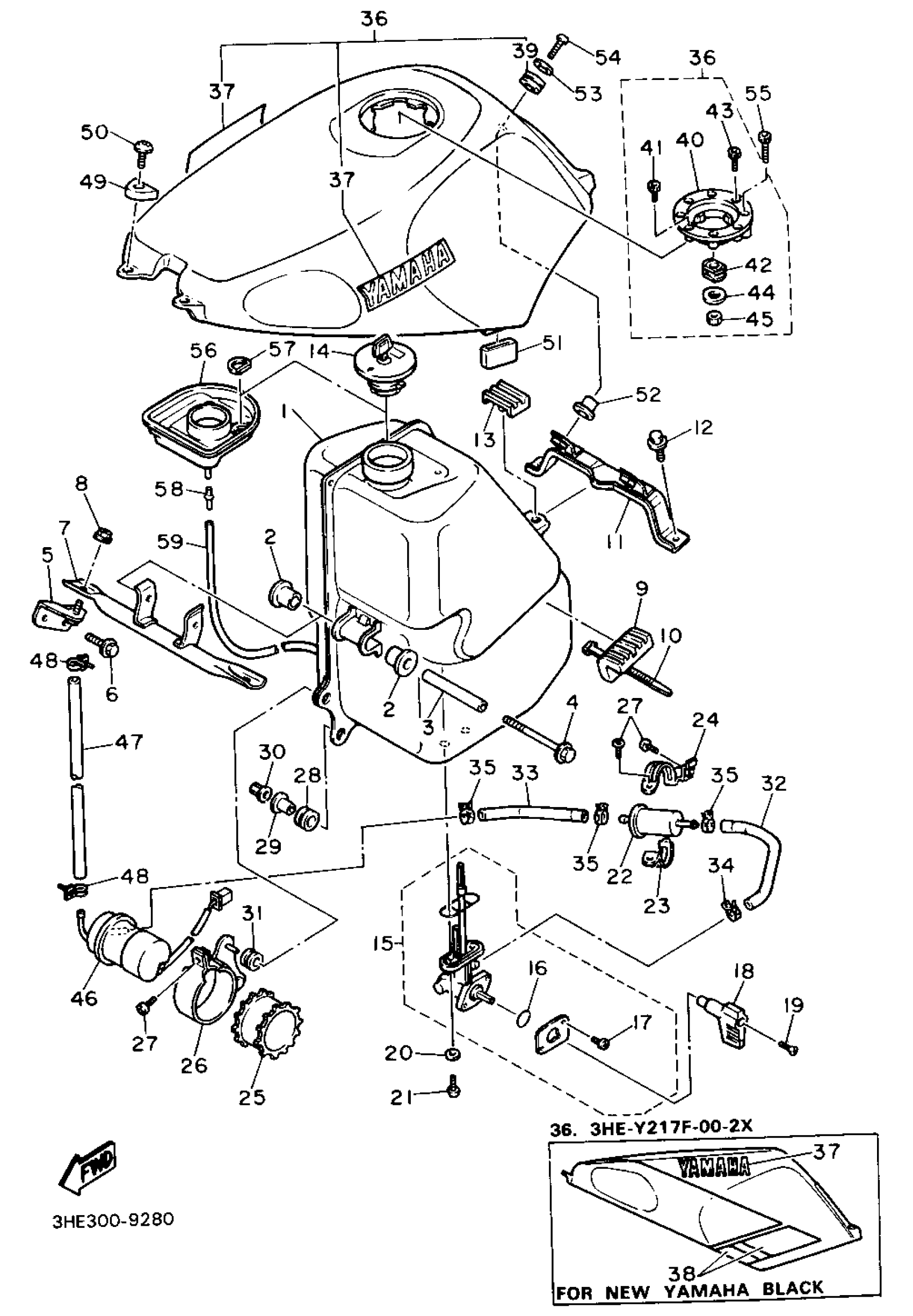

Yamaha FZR600W (FZR600) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3HE-24110-10-00

Unavailable

2

DAMPER, LOCATING 1

1HX-24181-00-00

Unavailable

3

COLLAR

90387-06380-00

Unavailable

4

BOLT, FLANGE

95817-06080-00

$4.72

5

BRACKET, TANK FITTING

3EN-21346-00-00

Unavailable

6

BOLT, FLANGE

95817-06016-00

$2.75

7

BRACKET, TANK FITTING

1WG-21345-00-00

Unavailable

8

NUT (22U)

90179-08410-00

$9.49

9

DAMPER, LOCATING 2

1HX-24182-00-00

Unavailable

10

BAND

1UA-82591-00-00

$4.78

11

BRACKET, TANK FITTING

1WG-21348-00-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

DAMPER, LOCATING 5

1WG-24185-00-00

Unavailable

14

CAP ASSEMBLY

1WG-24602-00-00

Unavailable

15

FUEL COCK ASSY 1

3HE-24500-01-00

$72.99

16

O-RING

4X8-24512-00-00

Unavailable

17

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

18

LEVER, COCK

3HE-24524-00-00

Unavailable

19

SCREW, FLAT

98707-04016-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

FILTER ASSY

1FK-24560-10-00

Unavailable

23

BAND, FILTER

26H-24568-00-00

Unavailable

24

BRACKET, FILTER

1WG-24566-00-00

Unavailable

25

BAND 1

1WG-24398-01-00

Unavailable

26

BRACKET,FUEL PUMP

3HE-24491-00-00

Unavailable

27

SCREW, BINDING

98907-05014-00

Unavailable

28

GROMET (3X3)

90480-14229-00

Unavailable

29

COLLAR 437216330000

90387-07391-00

Unavailable

30

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

31

GROMMET(1WG)

90480-11454-00

Unavailable

32

PIPE, FUEL 1

1WG-24311-00-00

Unavailable

33

HOSE

90445-137F4-00

Unavailable

34

CLIP(42X)

90467-10091-00

Unavailable

35

CLIP (7K7)

90467-11044-00

Unavailable

36

CVR TOP ASSEMBLY-SW/FRD

3HE-Y217F-00-0X

Unavailable

36

COVER TOP ASSEMBLY

3HE-Y217F-00-2X

Unavailable

37

EMBLEM, YAMAHA

99243-00160-00

Unavailable

37

EMBLEM, YAMAHA(3GM)

99226-00160-00

Unavailable

38

. GRAPHIC SET (NEW YAMAHA BLACK)

3HE-24250-10-00

Unavailable

39

GROMMET(3AK)

90480-18495-00

Unavailable

40

. PLATE, CAP

3HE-24614-00-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06134-00

Unavailable

42

DAMPER

1WG-24665-00-00

Unavailable

43

BOLT, HEXAGON SOCKET HEAD

90110-06133-00

Unavailable

44

WASHER, PLATE

90201-06380-00

Unavailable

45

NUT, HEXAGON

95380-06600-00

Unavailable

46

FUEL PUMP COMP.

3EN-13907-00-00

Unavailable

47

HOSE

90445-146F9-00

Unavailable

48

CLIP(3YX)

90467-13133-00

Unavailable

49

DAMPER, LOCATING 3

1WG-24183-00-00

Unavailable

50

SCREW, BINDING

90154-06040-00

Unavailable

51

GROMMET

4X7-21719-00-00

Unavailable

52

COLLAR

90387-112R6-00

Unavailable

53

WASHER, PLATE (J10)

90201-06697-00

Unavailable

54

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD

90110-06170-00

Unavailable

56

COVER, FILLER

1WG-2414A-00-00

Unavailable

57

WASHER, RING

1WG-24622-00-00

Unavailable

58

SPACER

90560-03220-00

Unavailable

59

HOSE (L1050)

90445-072G8-00

Unavailable
