Description

Price

1

DISC BRAKE ASSY

4HM-2581T-11-00

$329.99

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSEMBLY LEFT (LEFT)

3HE-2580T-02-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

3HE-W0057-00-00

Unavailable

5

.. CALIPER SEAL KIT

3HE-W0047-00-00

Unavailable

6

. BRAKE PAD KIT

3HE-W0045-11-00

Unavailable

7

SUPPORT, PAD

1WG-25919-00-00

$10.99

8

PIN, PAD

3HE-25924-00-00

Unavailable

9

CLIP, PAD PIN

3GM-25925-00-00

$11.99

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

COVER, DUST

51J-25836-01-00

Unavailable

12

CALIPER ASSY RIGHT

3HE-2580U-02-00

Unavailable

13

. PISTON ASSEMBLY, CALIPER

3HE-W0057-00-00

Unavailable

14

.. CALIPER SEAL KIT

3HE-W0047-00-00

Unavailable

15

. BRAKE PAD KIT

3HE-W0045-11-00

Unavailable

16

SUPPORT, PAD

1WG-25919-00-00

$10.99

17

PIN, PAD

3HE-25924-00-00

Unavailable

18

CLIP, PAD PIN

3GM-25925-00-00

$11.99

19

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

20

COVER, DUST

51J-25836-01-00

Unavailable

21

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

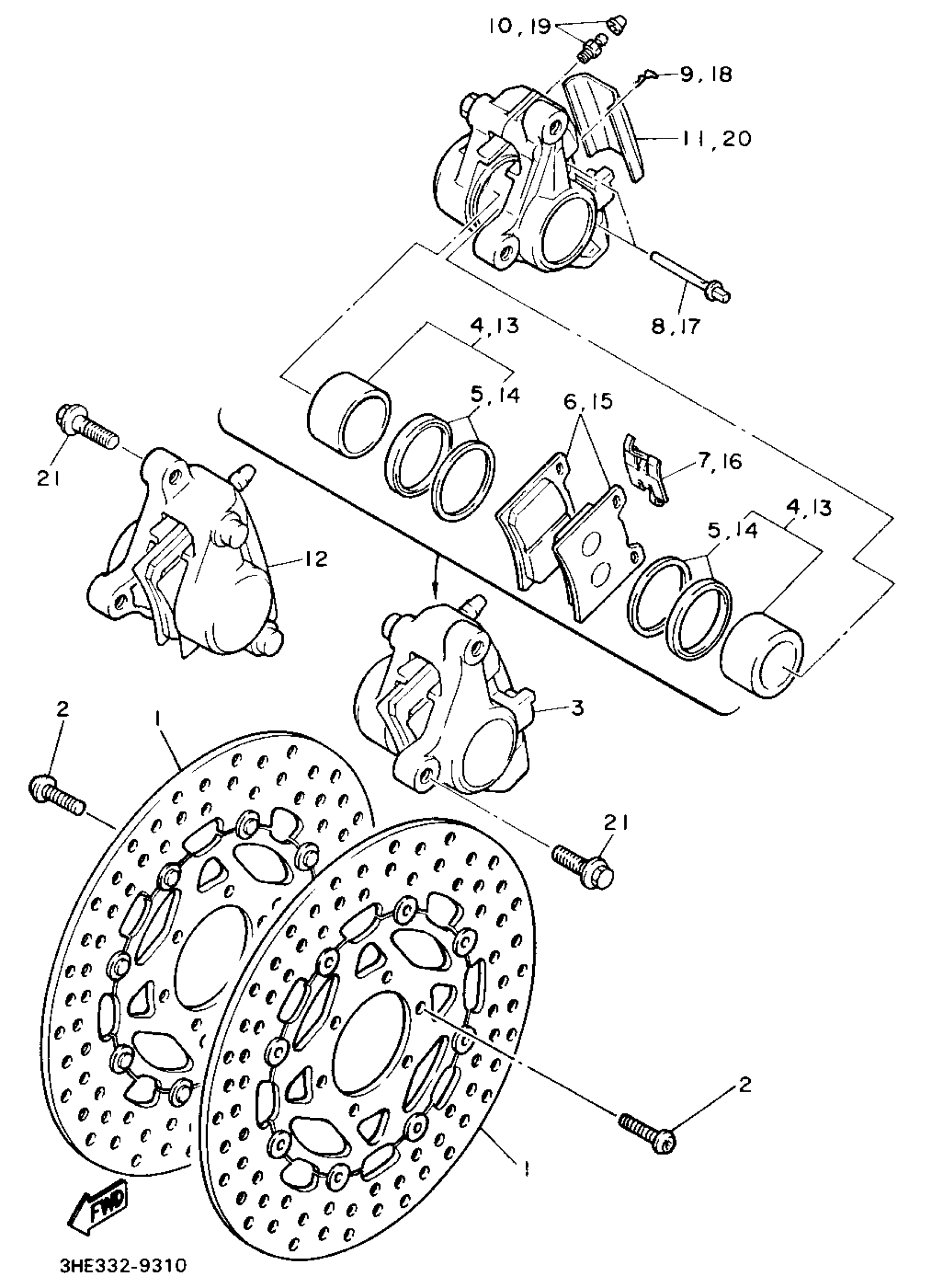

Yamaha FZR600W (FZR600) 1989 FRONT BRAKE CALIPER Diagram

DISC BRAKE ASSY

BOLT,HEX. SOCKET BUTTON

CALIPER ASSEMBLY LEFT (LEFT)

. PISTON ASSEMBLY, CALIPER

.. CALIPER SEAL KIT

. BRAKE PAD KIT

SUPPORT, PAD

PIN, PAD

CLIP, PAD PIN

BLEED SCREW KIT

COVER, DUST

CALIPER ASSY RIGHT

. PISTON ASSEMBLY, CALIPER

.. CALIPER SEAL KIT

. BRAKE PAD KIT

SUPPORT, PAD

PIN, PAD

CLIP, PAD PIN

BLEED SCREW KIT

COVER, DUST

BOLT, WASHER BASED(3VD)
