FAIRING COWLING

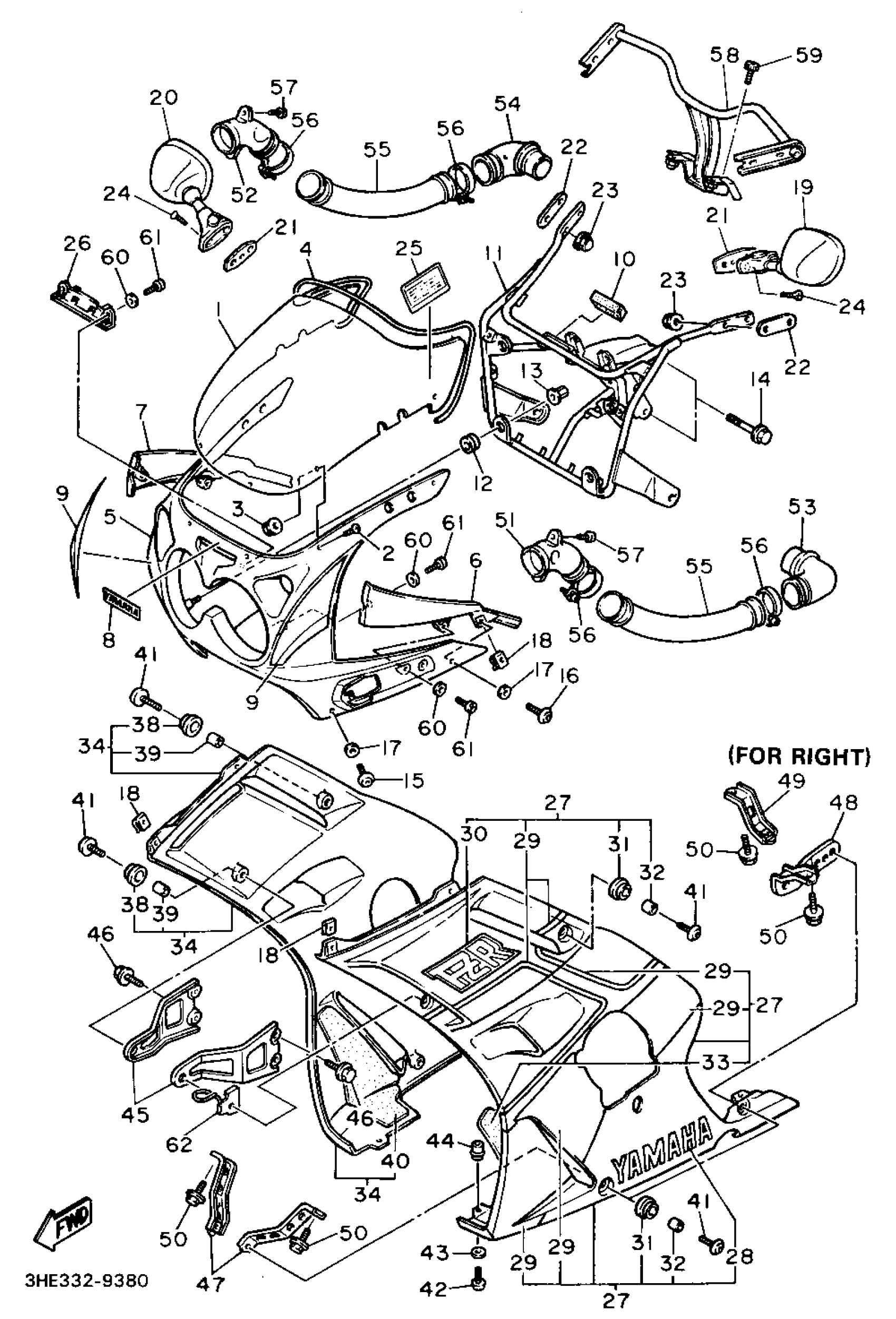

Yamaha FZR600W (FZR600) 1989 FAIRING COWLING Diagram
#
1
WINDSHIELD
3HH-28381-00-00
Unavailable
5
BODY, FRONT UPPER 1
3HE-2835G-00-7M
Unavailable
5
BODY, FRONT UPPER 1
3HE-2835G-00-GE
Unavailable
6
PANEL 1 (BLUISH WHITE COCKTAIL 1)
3EN-2835U-00-00
Unavailable
6
PANEL 1 (BLUISH BLACK)
3EN-2835U-20-00
Unavailable
7
PANEL 2 (BLUISH WHITE COCKTAIL 1)
3EN-2835V-00-00
Unavailable
7
PANEL 2 (BLUISH BLACK)
3EN-2835V-20-00
Unavailable
8
EMBLEM, YAMAHA
99243-00080-00
Unavailable
9
GRPHC SET, COWLING (SILKY WHITE)
3HE-28390-00-00
Unavailable
10
DAMPER, HEADLIGHT (2XJ-84345-00-00)
5X4-14462-00-00
Unavailable
11
STAY 1
3HE-28356-10-00
Unavailable
12
GROMET (3X3)
90480-14229-00
Unavailable
13
NUT (1AE)
90179-06500-00
Unavailable
14
BOLT, FLANGE
95817-08035-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
16
SCREW(3YF)
90149-05299-00
Unavailable
17
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
18
NUT, SPRING
90183-051A0-00
Unavailable
19
REAR VIEW MIRROR ASSY (LEFT)
3HE-26280-01-00
Unavailable
19
REAR VIEW MIRROR ASSEMBLY (LEFT)
3HE-26280-10-00
Unavailable
20
REAR VIEW MIRROR ASSY(RIGHT)
3HE-26290-00-00
Unavailable
20
REAR VIEW MIRROR ASSEMBLY (RIGHT)
3HE-26290-10-00
Unavailable
21
PLATE, MIRROR FITTING 1
1AE-26298-00-00
Unavailable
22
PLATE, MIRROR FITTING 1
3CV-26298-00-00
Unavailable
23
NUT, CROWN(1FN)
90176-06055-00
Unavailable
24
SCREW, FLAT
98707-06025-00
Unavailable
25
LABEL, CAUTION
3CK-2835Y-00-00
Unavailable
26
LID
3EN-28313-00-00
Unavailable
27
BODY, FRONT LOWER1
3HE-Y283J-01-2X
Unavailable
27
BODY, FRONT LOWER1
3HE-Y283J-21-6G
Unavailable
28
EMBLEM, YAMAHA
99233-00240-00
Unavailable
28
EMBLEM, YAMAHA
99246-00240-00
Unavailable
29
. GRAPHICSET3 COWLIN (SILKY WHITE)
3HE-2836V-00-00
Unavailable
29
. GRAPHICSET3 COWLIN (NEW YAMAHA BLACK)
3HE-2836V-20-00
Unavailable
30
. EMBLEM (SILKY WHITE)
3HE-28328-00-00
Unavailable
31
GROMMET
90480-13014-00
Unavailable
32
COLLAR(51L)
90387-067K6-00
Unavailable
33
. SEAT 2
3HE-2848K-00-00
Unavailable
34
BODY, FRONT LOWER2
3HE-Y283K-00-2X
Unavailable
34
BODY, FRONT LOWER2
3HE-Y283K-21-6G
Unavailable
35
EMBLEM, YAMAHA
99233-00240-00
Unavailable
35
EMBLEM, YAMAHA
99246-00240-00
Unavailable
36
. GRAPHICSET4 COWLIN (SILKY WHITE)
3HE-2836W-00-00
Unavailable
36
. GRAPHICSET4 COWLIN (NEW YAMAHA BLACK)
3HE-2836W-20-00
Unavailable
37
. EMBLEM (SILKY WHITE)
3HE-28338-00-00
Unavailable
38
GROMMET
90480-13014-00
Unavailable
39
COLLAR(51L)
90387-067K6-00
Unavailable
40
. SEAT 3
3HE-2848L-00-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
42
SCREW(3YF)
90149-05299-00
Unavailable
43
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
44
NUT(1KT)
90179-05523-00
Unavailable
45
STAY, SIDE 1
3HE-2831U-00-00
Unavailable
46
BOLT, FLANGE
95817-06012-00
Unavailable
47
BRACKET 1
1WG-2836A-00-00
Unavailable
48
BRACKET 1
3EN-2836A-01-00
Unavailable
49
BRACKET 2
1WG-2836E-00-00
Unavailable
50
BOLT, FLANGE
95817-06010-00
Unavailable
51
DUCT 1
3EN-2838N-00-00
Unavailable
52
DUCT 2
3EN-2838R-00-00
Unavailable
53
DUCT 3
3EN-2838T-00-00
Unavailable
54
DUCT 4
3EN-2838U-00-00
Unavailable
55
DUCT 5
3HE-2838J-01-00
Unavailable
56
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
57
SCREW, BINDING
90154-06046-00
Unavailable
58
STAY, MIRROR 1
3HE-2831W-00-00
Unavailable
59
BOLT,SOCKET
91317-06016-00
Unavailable
60
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
61
SCREW, PAN TAP.2 SLIT
97707-50614-00
Unavailable
62
HOLDER
3HE-21596-00-00
Unavailable
