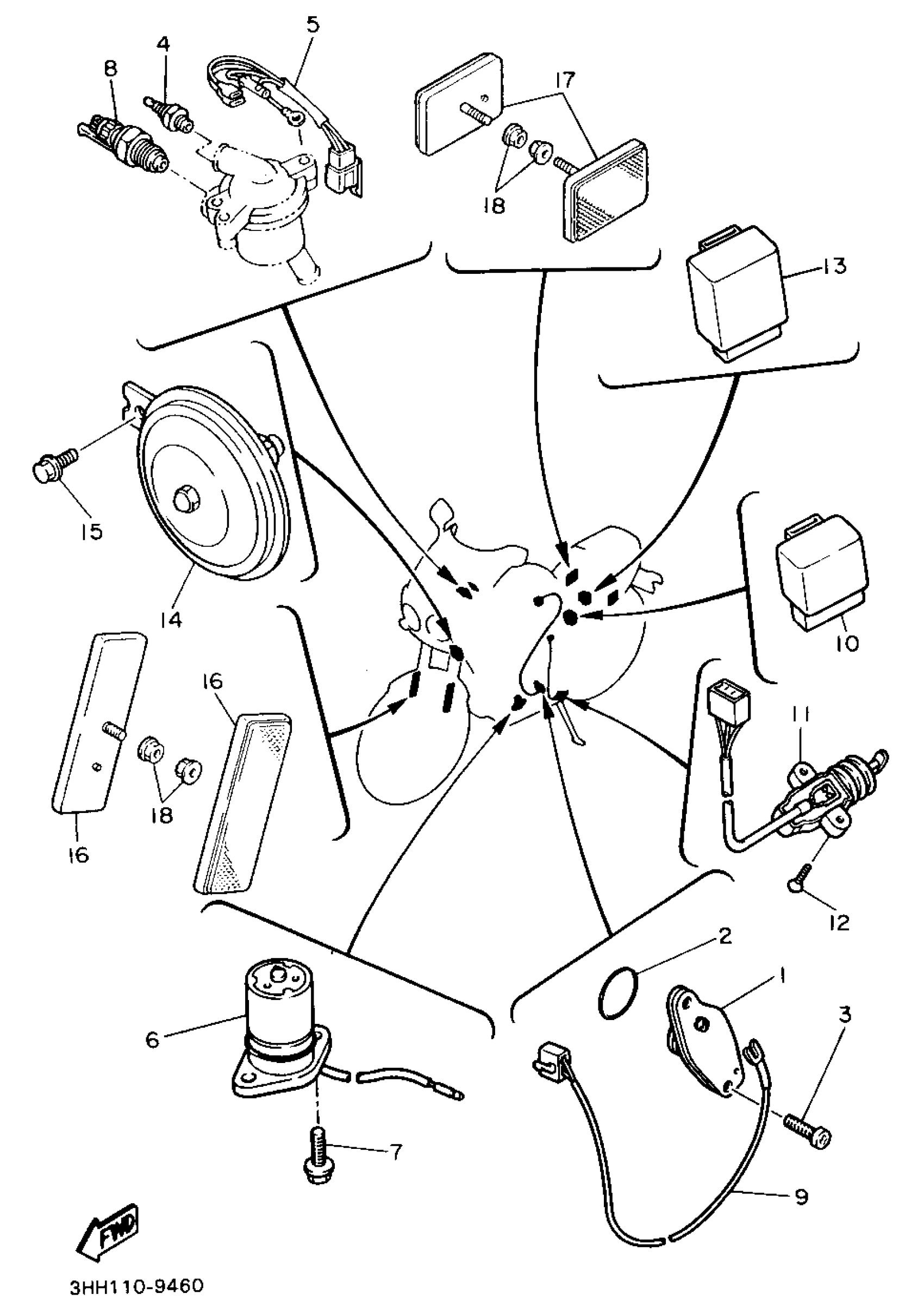

Yamaha FZR600W (FZR600) 1989 ELECTRICAL 2 Diagram

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

O-RING (371)

93210-29196-00

$8.49

SCREW, PAN

98507-06014-00

$8.49

THERMO UNIT

11H-83591-00-00

$105.99

WIRE, SUB LEAD

2GH-82509-00-00

Unavailable

OIL LEVEL GAUGE ASSEMBLY

1WG-85720-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

WIRE, LEAD

1WG-82541-00-00

Unavailable

RELAY ASSY

3EN-81950-02-00

$69.99

SWITCH, SIDE STAND

3FH-82566-00-00

Unavailable

SCREW, FLAT

98707-05014-00

$9.49

FLASHER RELAY ASSY

2UJ-83350-01-00

Unavailable

HORN

2KG-83371-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
