Description

Price

1

PLATE, ADAPTOR

3TJ-13461-00-00

$56.99

2

BOLT, UNION

90401-20007-00

Unavailable

3

O-RING(1KF)

93210-87723-00

Unavailable

4

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

$18.99

5

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

6

O-RING (611)

93210-10096-00

$3.76

7

COVER, STRAINER

1WG-13417-00-00

Unavailable

8

GASKET, STRAINER COVER

4TV-13414-00-00

Unavailable

9

BOLT,SOCKET

91317-06025-00

$5.60

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

12

GASKET

214-11198-01-00

$3.17

13

CLAMP

90465-10306-00

Unavailable

14

PIPE, DELIVERY 1

3HE-13161-00-00

Unavailable

15

BOLT,SOCKET

91317-06012-00

$8.49

16

BOLT, UNION(1HX)

90401-10106-00

Unavailable

17

GASKET

90430-10188-00

Unavailable

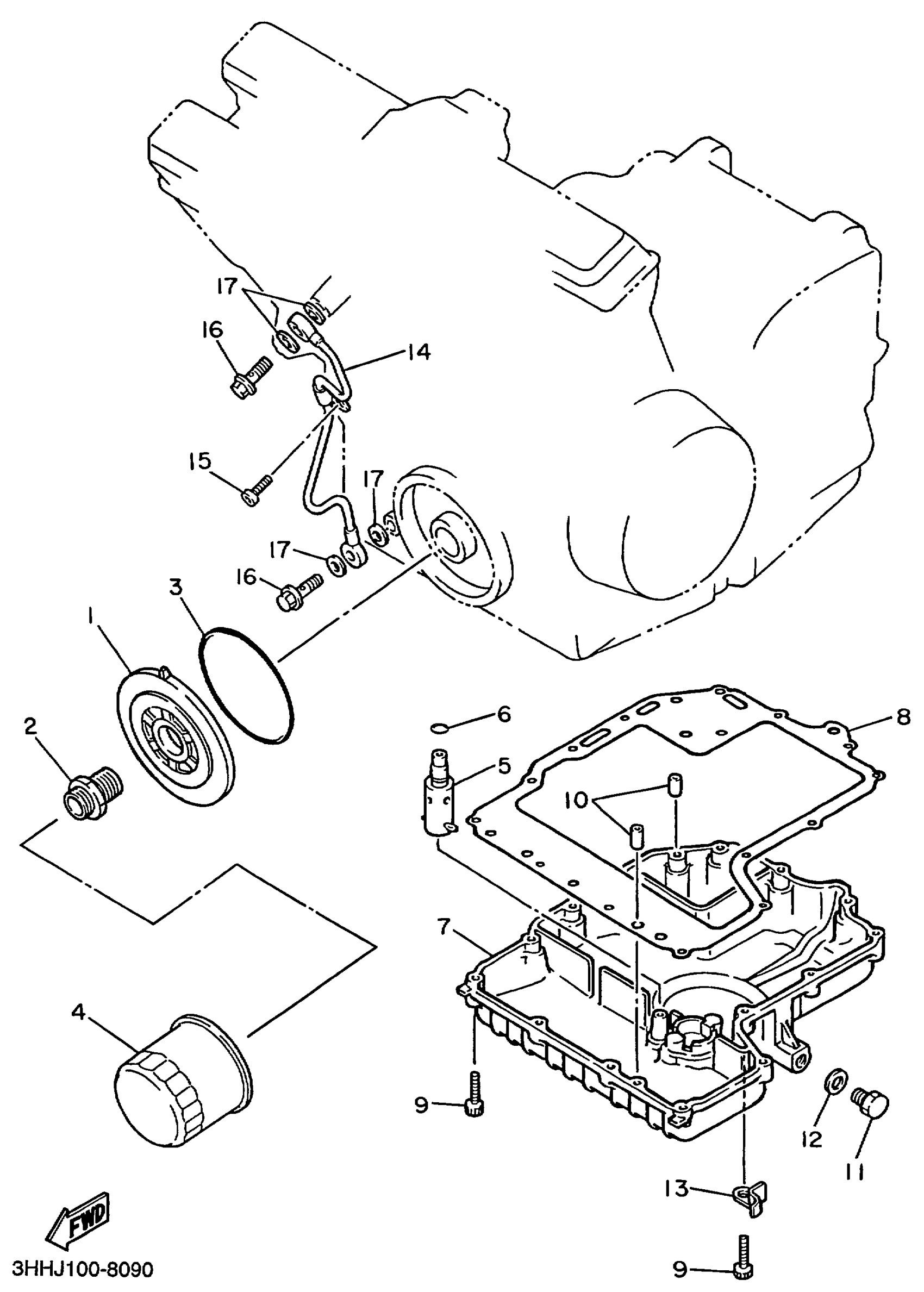

Yamaha FZR600RLC (FZR600R CA) 3UUA 1999 OIL COOLER Diagram

PLATE, ADAPTOR

BOLT, UNION

O-RING(1KF)

ELEMENT ASSY, OIL CLEANER

RELIEF VALVE ASSY

O-RING (611)

COVER, STRAINER

GASKET, STRAINER COVER

BOLT,SOCKET

PIN, DOWEL(3XW)

PLUG, STRAIGHT SCREW(3FA)

GASKET

CLAMP

PIPE, DELIVERY 1

BOLT,SOCKET

BOLT, UNION(1HX)

GASKET
