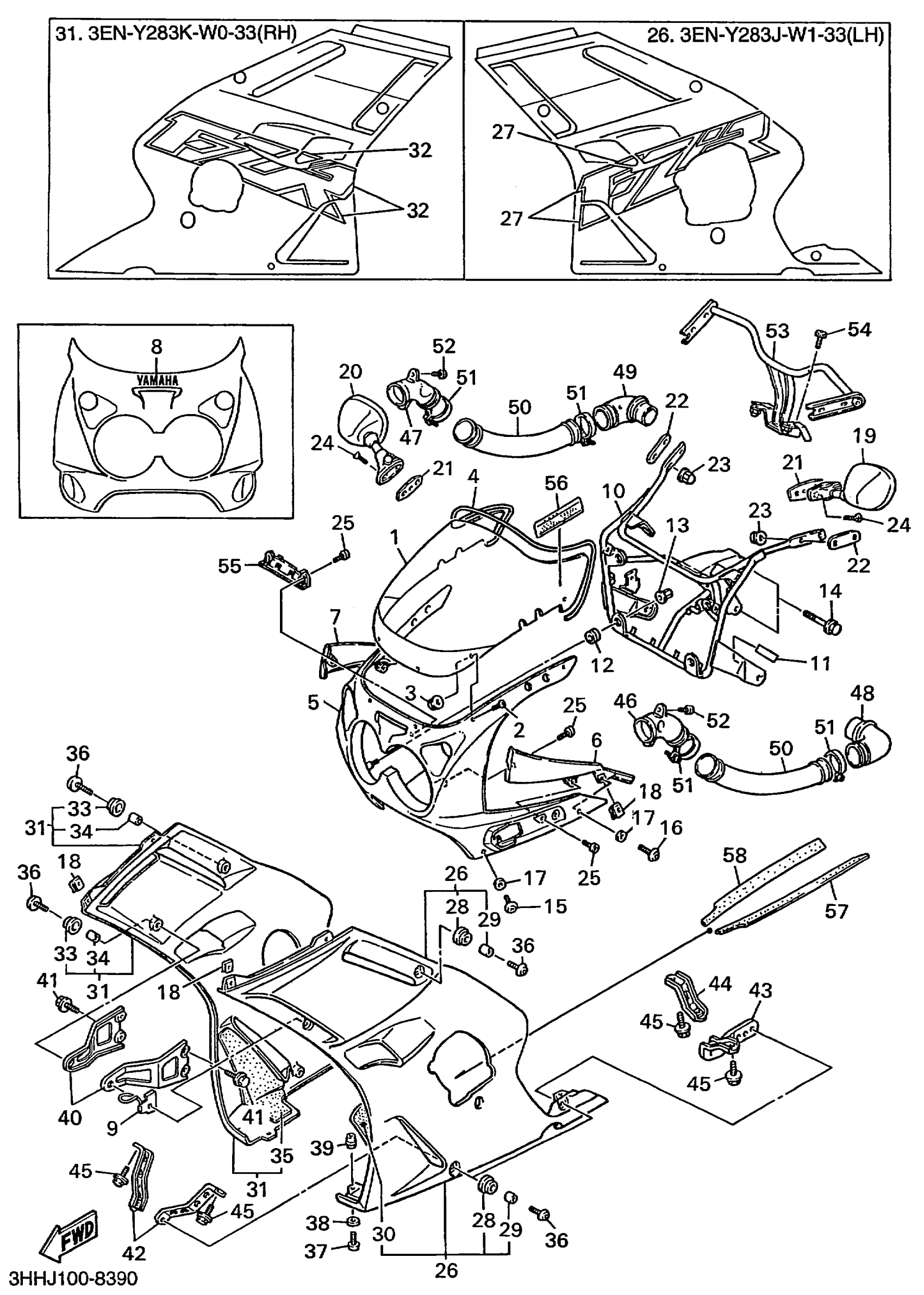

Yamaha FZR600RLC (FZR600R CA) 3UUA 1999 COWLING 1 Diagram
#
1
WINDSHIELD
3HH-28381-10-00
Unavailable
5
BODY,FRONT UPPER 1 - YAM BLACK
3HE-2835G-00-33
Unavailable
6
PANEL 1 (BLUISH BLACK)
3EN-2835U-20-00
Unavailable
7
PANEL 2 (BLUISH BLACK)
3EN-2835V-20-00
Unavailable
9
HOLDER
3HE-21596-00-00
Unavailable
10
STAY 1
3HE-28356-30-00
Unavailable
11
DAMPER
5G3-21747-00-00
Unavailable
16
SCREW(3YF)
90149-05299-00
Unavailable
17
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
18
NUT, SPRING
90183-051A0-00
Unavailable
19
REAR VIEW MIRROR ASSEMBLY (LEFT)
3HE-26280-10-00
Unavailable
20
REAR VIEW MIRROR ASSEMBLY (RIGHT)
3HE-26290-10-00
Unavailable
21
PLATE, MIRROR FITTING 1
1AE-26298-00-00
Unavailable
22
PLATE, MIRROR FITTING 1
3CV-26298-00-00
Unavailable
23
NUT, CROWN(1FN)
90176-06055-00
Unavailable
24
SCREW, FLAT
98707-06025-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
26
BODY, FRONT LOWER 1 (YAMAHA BLACK)
3EN-Y283J-W1-33
Unavailable
27
. GRAPHIC SET, LOWER COVER 1
3HH-28301-D0-00
Unavailable
28
GROMMET
90480-13014-00
Unavailable
29
COLLAR(51L)
90387-067K6-00
Unavailable
30
. SEAT 2
3HE-2848K-00-00
Unavailable
31
BODY, FRONT LOWER 2 (YAMAHA BLACK)
3EN-Y283K-W0-33
Unavailable
32
. GRAPHIC SET, LOWER COVER 2
3HH-28303-D0-00
Unavailable
33
GROMMET
90480-13014-00
Unavailable
34
COLLAR(51L)
90387-067K6-00
Unavailable
35
. SEAT 3
3HE-2848L-00-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
37
SCREW(3YF)
90149-05299-00
Unavailable
38
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
39
NUT(1KT)
90179-05523-00
Unavailable
40
STAY, SIDE 1
3HE-2831U-00-00
Unavailable
41
BOLT, FLANGE
95817-06012-00
Unavailable
42
BRACKET 1
1WG-2836A-00-00
Unavailable
43
BRACKET 1
3EN-2836A-01-00
Unavailable
44
BRACKET 2
1WG-2836E-00-00
Unavailable
45
BOLT, FLANGE
95817-06010-00
Unavailable
46
DUCT 1
3EN-2838N-00-00
Unavailable
47
DUCT 2
3EN-2838R-00-00
Unavailable
48
DUCT 3
3EN-2838T-00-00
Unavailable
49
DUCT 4
3EN-2838U-00-00
Unavailable
50
DUCT 5
3HE-2838J-01-00
Unavailable
51
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
52
SCREW, BINDING
90154-06046-00
Unavailable
53
STAY, MIRROR 1
3HE-2831W-00-00
Unavailable
54
BOLT,SOCKET
91317-06016-00
Unavailable
55
LID
3EN-28313-00-00
Unavailable
56
LABEL, CAUTION
3JJ-2835Y-00-00
Unavailable
57
SEAT 4
3HF-2848M-00-00
Unavailable
58
SEAT 5
3HF-2848N-00-00
Unavailable
