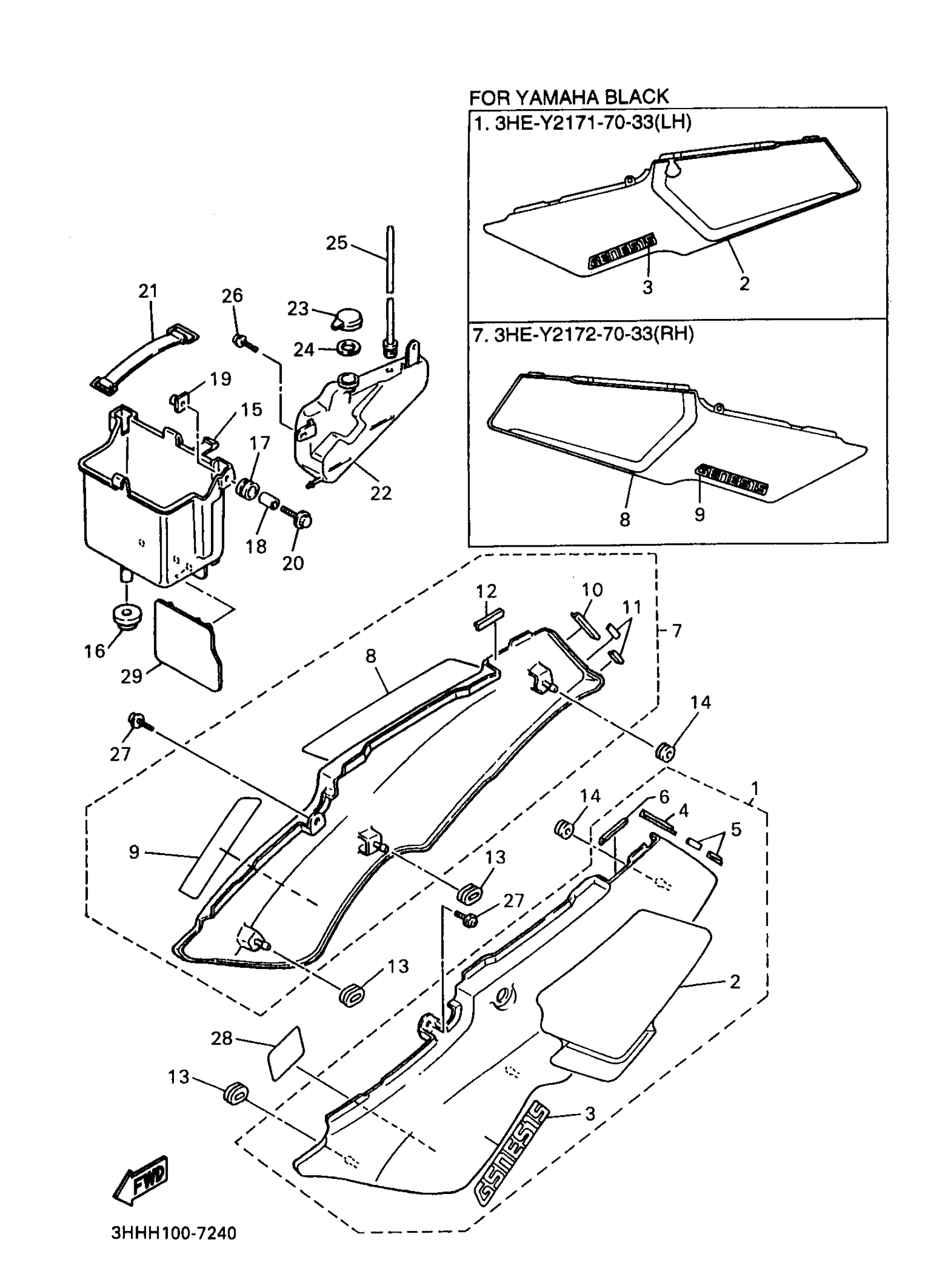

Yamaha FZR600RJC (FZR600R CA) 3UU8 1997 SIDE COVER Diagram
#
1
COVER, SIDE 1
3HE-Y2171-10-P3
Unavailable
1
COVER, SIDE 1
3HE-Y2171-70-33
Unavailable
2
. GRAPHIC 1 (YAMAHA BLACK)
3HH-2173E-90-00
Unavailable
2
. GRAPHIC 1 (BLUE METALLIC C)
3UU-2173E-00-00
Unavailable
3
. EMBLEM
3LE-28315-40-00
Unavailable
4
. SEAL 2
3HE-21735-00-00
Unavailable
5
. SEAL 1
3HE-21732-00-00
Unavailable
6
SEAL 2
2GH-21735-00-00
Unavailable
7
COVER, SIDE 2
3HE-Y2172-10-P3
Unavailable
7
COVER, SIDE 2
3HE-Y2172-70-33
Unavailable
8
. GRAPHIC 2
3HH-2173F-90-00
Unavailable
8
. GRAPHIC 2
3UU-2173F-00-00
Unavailable
9
. EMBLEM
3LE-28315-40-00
Unavailable
10
. SEAL 2
3HE-21735-00-00
Unavailable
11
. SEAL 1
3HE-21732-00-00
Unavailable
12
SEAL 2
2GH-21735-00-00
Unavailable
13
GROMMET(41Y)
90480-01401-00
Unavailable
14
GROMMET (431)
90480-14052-00
Unavailable
15
BOX, BATTERY
1WG-2177G-00-00
Unavailable
16
GROMMET (31A)
90480-22362-00
Unavailable
17
GROMET (3X3)
90480-14229-00
Unavailable
18
COLLAR 437216330000
90387-07391-00
Unavailable
19
PLATE
31A-14477-10-00
Unavailable
20
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
21
BAND,BATTERY
7H3-82131-00-00
Unavailable
22
TANK, RECOVERY
1WG-21871-00-00
Unavailable
23
CAP
1AA-21815-00-00
Unavailable
24
GASKET
1AA-21874-00-00
Unavailable
25
PIPE, OVERFLOW (L1400)
4BH-21877-00-00
Unavailable
26
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
27
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
28
PLATE, EPA 1
3HH-2179V-90-00
Unavailable
28
PLATE, EPA 2
3UU-2179R-70-00
Unavailable
29
FLAP
34X-21691-00-00
Unavailable
