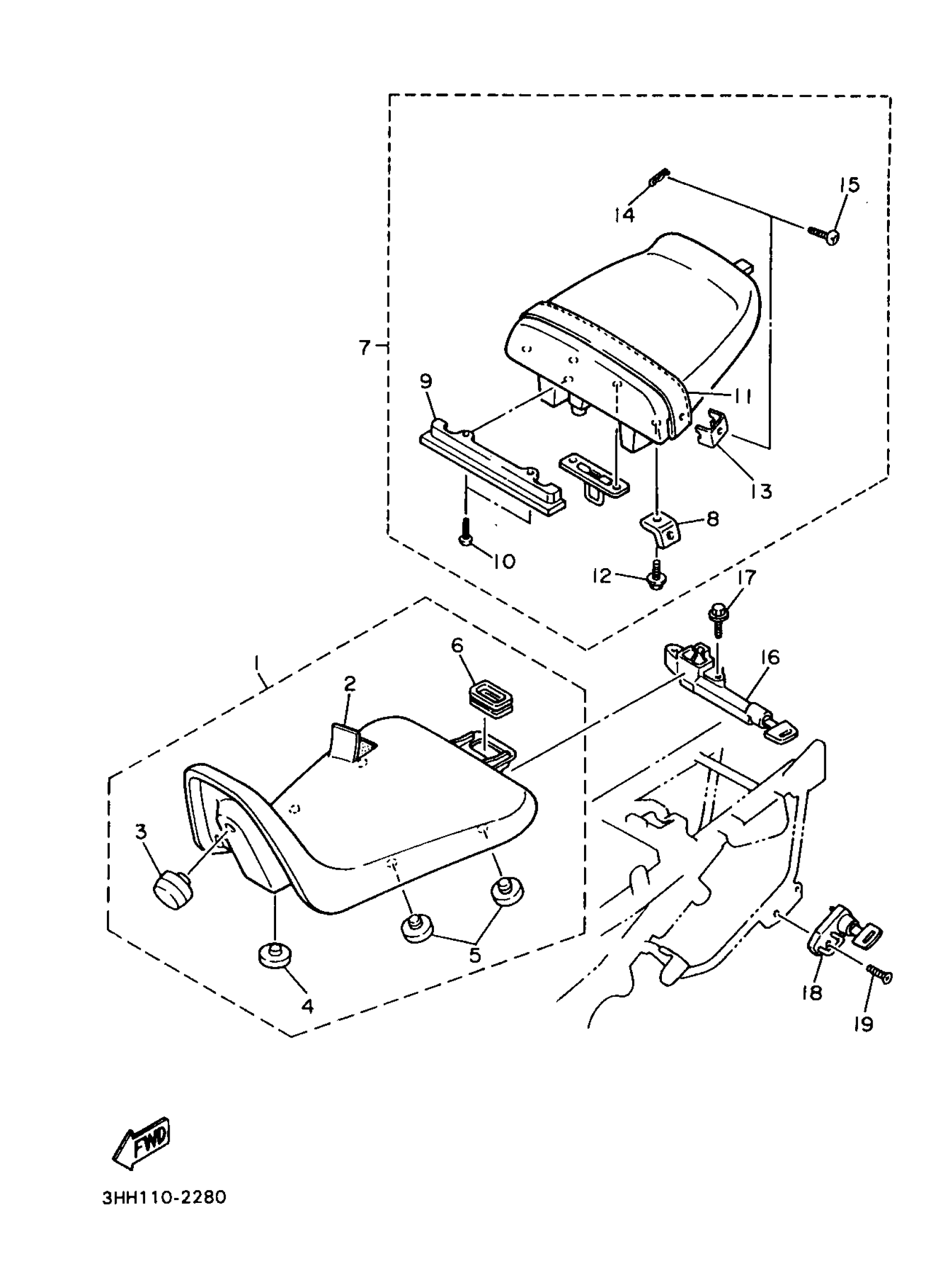

Yamaha FZR600RJC (FZR600R CA) 3UU8 1997 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

3HE-24710-00-00

Unavailable

2

. COVER, SINGLE SEAT

3HE-24711-00-00

Unavailable

3

PAD, SEAT

1T4-24741-00-00

Unavailable

4

PAD, SEAT

116-24741-00-00

Unavailable

5

PAD, SEAT

22W-24741-00-00

$8.99

6

. GROMMET

3HE-24742-00-00

Unavailable

7

TANDEM SEAT ASSEMBLY

3HE-24750-00-00

Unavailable

8

BRACKET, SEAT

4K0-24748-00-00

Unavailable

9

. COVER

3HE-24796-00-00

Unavailable

10

. SCREW, TAPPING

90164-05026-00

Unavailable

11

. BAND, SEAT

3HE-24734-00-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

PLATE

4L0-24712-11-00

$5.49

14

CLIP (156-83525-00)

90468-10050-00

$3.05

15

BOLT, SEAT FITTING

47X-24739-00-00

Unavailable

16

SEAT LOCK ASSY

3HH-24705-01-00

Unavailable

17

BOLT, FLANGE

95817-06030-00

Unavailable

18

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

19

SCREW (3H1)

90149-06150-00

Unavailable
