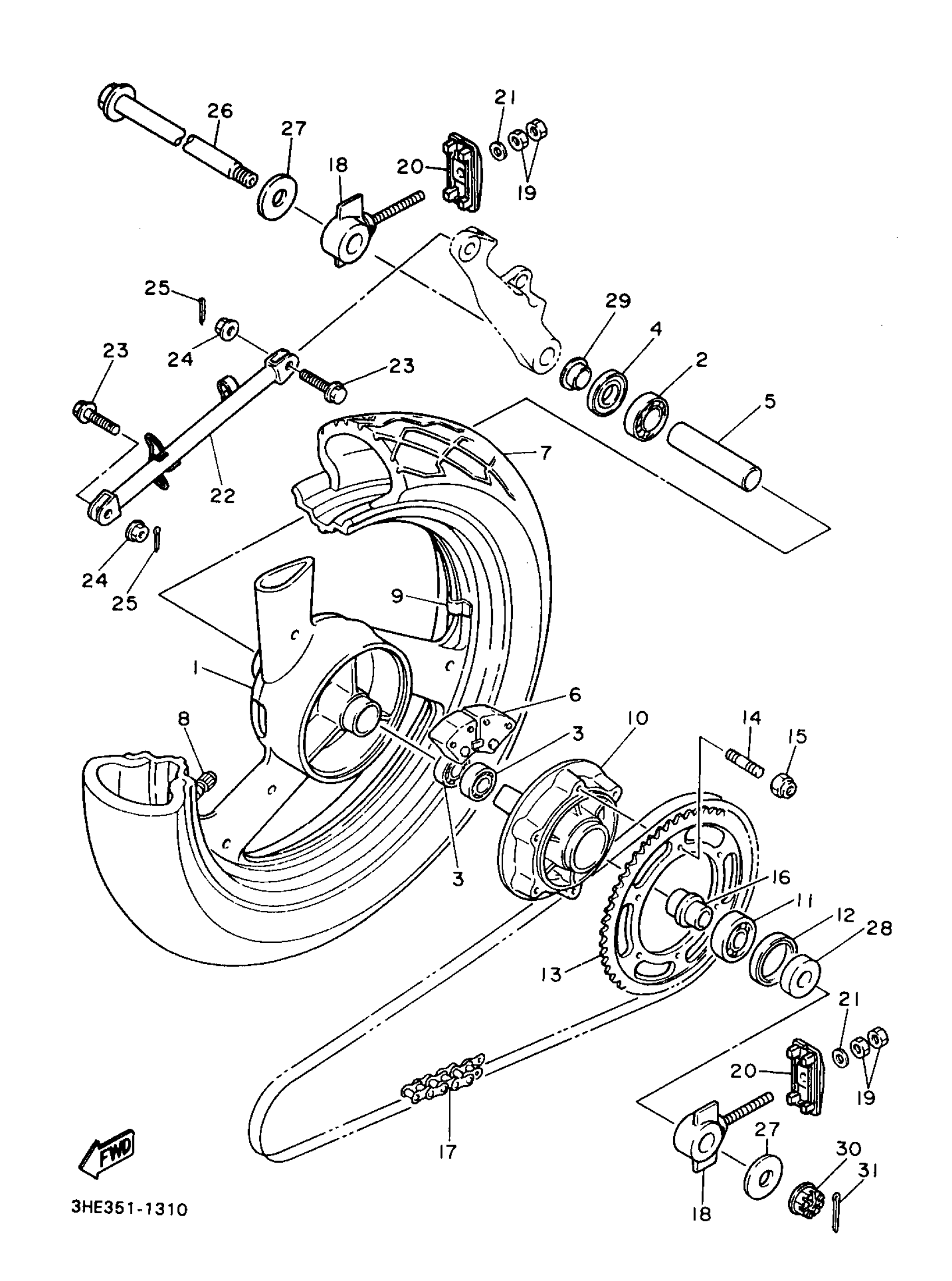

Yamaha FZR600RJC (FZR600R CA) 3UU8 1997 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
3HE-25338-50-35
Unavailable
1
CAST WHEEL, REAR
3HE-25338-50-P1
Unavailable
5
COLLAR
90387-174V8-00
Unavailable
7
TIRE (MCS 140/60 VR18 V240)
94114-185X6-00
Unavailable
9
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
10
CLUTCH, HUB
1UF-25366-00-00
Unavailable
12
OIL SEAL(47X)
93105-42024-00
Unavailable
13
SPROCKET, DRIVEN (45T)
1AE-25445-21-00
Unavailable
14
BOLT, STUD(1TX)
90116-10485-00
Unavailable
15
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
16
COLLAR(47X)
90387-177K0-00
Unavailable
17
CHAIN(3HE)
94581-59106-00
Unavailable
18
PULLER, CHAIN 1
3HH-25388-00-00
Unavailable
19
NUT(6TA)
95337-08600-00
Unavailable
20
END 1
3HH-22174-00-00
Unavailable
21
WASHER(6TA)
92907-08600-00
Unavailable
22
BAR, TENSION
3HE-25371-51-00
Unavailable
23
BOLT, WASHER BASED(47X)
90105-08321-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
PIN, COTTER (648)
91490-20015-00
Unavailable
26
AXLE, WHEEL
3HE-25381-01-00
Unavailable
27
WASHER, PLATE(3HE)
90201-170T3-00
Unavailable
28
COLLAR
90387-177Y5-00
Unavailable
29
COLLAR (3HE)
90387-177Y4-00
Unavailable
30
NUT, CASTLE (2H6)
90171-16024-00
Unavailable
31
PIN, COTTER
91490-30030-00
Unavailable
