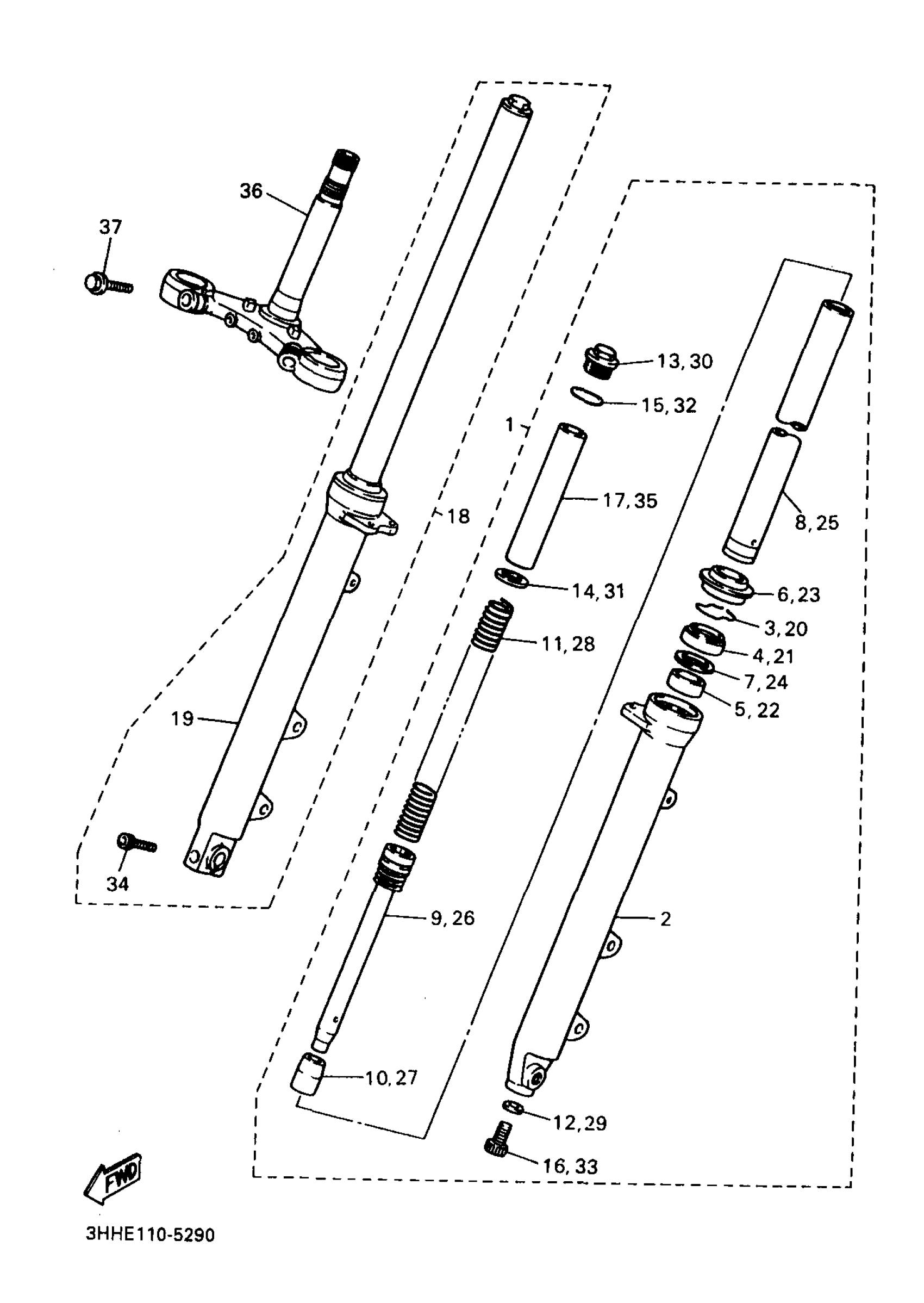

Yamaha FZR600RJC (FZR600R CA) 3UU8 1997 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (LH)
3HE-23102-12-00
Unavailable
2
. TUBE, OUTER (LEFT)
3HE-23126-10-00
Unavailable
8
. INNER TUBE COMP1
3HE-23110-01-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
3HE-23170-00-00
Unavailable
10
SPINDLE, TAPER
2YK-23173-00-00
Unavailable
11
. SPRING, FRONT FORK
3HE-23141-00-00
Unavailable
13
. BOLT, CAP
3EN-23111-00-00
Unavailable
14
. WASHER, SPRING UPPER
4DN-23149-40-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
17
. SPACER
1WG-23118-00-00
Unavailable
18
FRONT FORK ASY R
3HE-23103-12-00
Unavailable
19
. TUBE, OUTER (RIGHT)
3HE-23136-10-00
Unavailable
25
. INNER TUBE COMP1
3HE-23110-01-00
Unavailable
26
. CYLINDER COMP, FRONT FORK
3HE-23170-00-00
Unavailable
27
SPINDLE, TAPER
2YK-23173-00-00
Unavailable
28
. SPRING, FRONT FORK
3HE-23141-00-00
Unavailable
30
. BOLT, CAP
3EN-23111-00-00
Unavailable
31
. WASHER, SPRING UPPER
4DN-23149-40-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
34
BOLT,SOCKET
91314-08040-00
Unavailable
35
. SPACER
1WG-23118-00-00
Unavailable
36
UNDER BRACKET COMP.
1WG-23340-01-00
Unavailable
37
BOLT 2
2NX-23356-00-00
Unavailable
