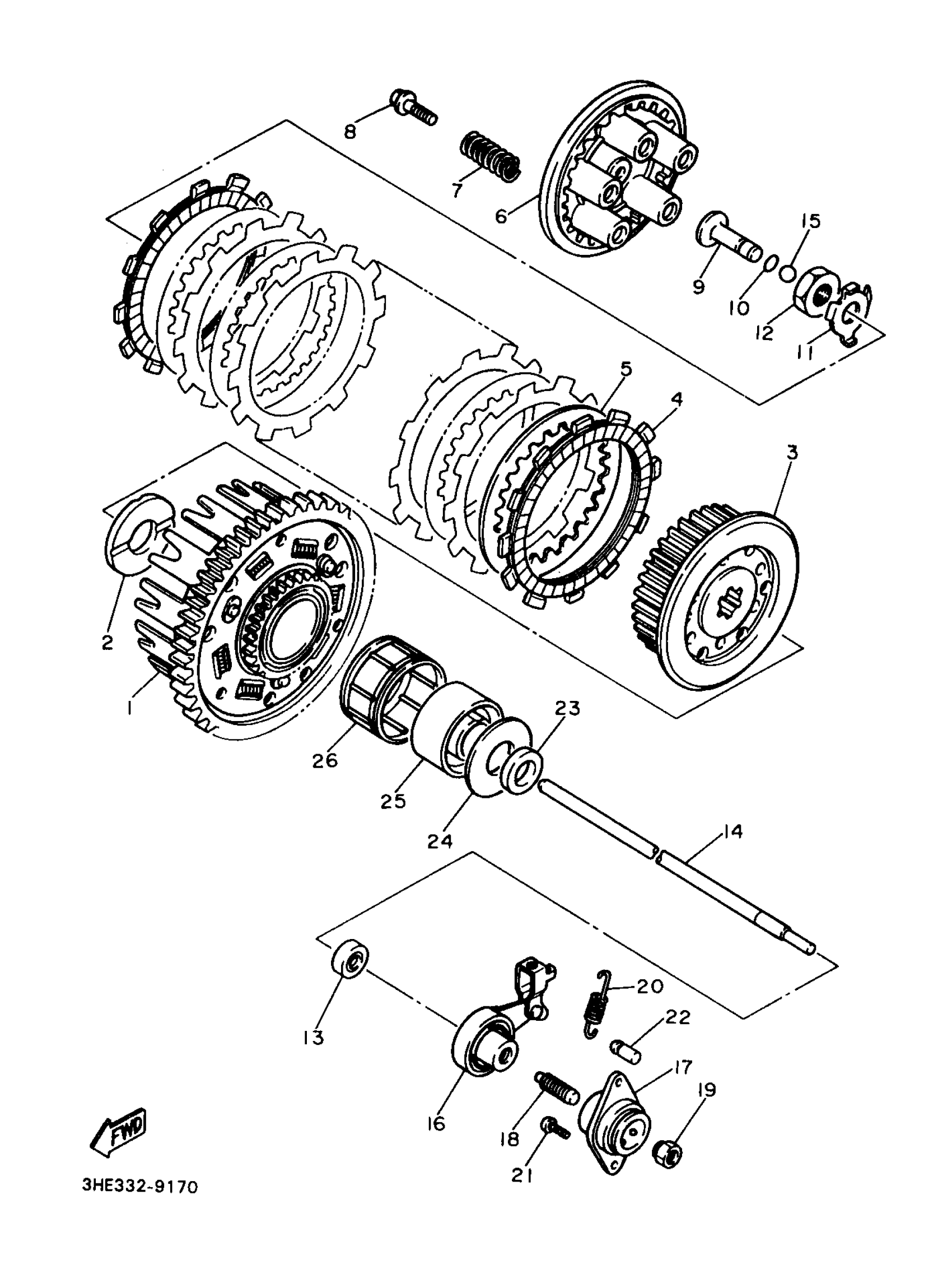

Yamaha FZR600RJC (FZR600R CA) 3UU8 1997 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

3HE-16150-00-00

Unavailable

2

PLATE, THRUST 1

1WG-16154-00-00

Unavailable

3

BOSS, CLUTCH

3HE-16371-00-00

Unavailable

4

PLATE, FRICTION

3XP-16321-00-00

$19.99

5

PLATE, CLUTCH 1

131-16324-10-00

$20.99

6

PLATE, PRESSURE 1

2TK-16351-00-00

$41.99

7

SPRING, COMPRESSION(1WG)

90501-227E0-00

$9.49

8

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

9

ROD, PUSH 1

1WG-16356-00-00

Unavailable

10

O-RING (2H7)

93210-48364-00

$8.49

11

WASHER, LOCK (33M)

90215-18225-00

$14.99

12

NUT, HEXAGON (2H7)

90170-18221-00

$14.99

13

SEAL, PUSH ROD (8.0X21X5.5)

93109-08058-00

Unavailable

14

ROD, PUSH 2

1WG-16357-02-00

Unavailable

15

BALL

93505-16006-00

$8.49

16

PUSH LEVER ASSEMBLY

1WG-16340-01-00

Unavailable

17

BALL SCREW HOUSING ASSY

1WG-16304-00-00

Unavailable

18

BOLT SET 256163430100

90113-08021-00

Unavailable

19

NUT

90179-08179-00

Unavailable

20

SPRING, TENSION(4JH)

90506-11488-00

Unavailable

21

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

22

HOOK, SPRING

132-16346-00-00

Unavailable

23

COLLAR(1WG)

90387-212R3-00

Unavailable

24

PLATE, THRUST 2

1WG-16164-00-00

Unavailable

25

SPACER 1

1WG-16181-00-00

Unavailable

26

BEARING, CYLINDRICAL(1WG)

93310-345R8-00

Unavailable
