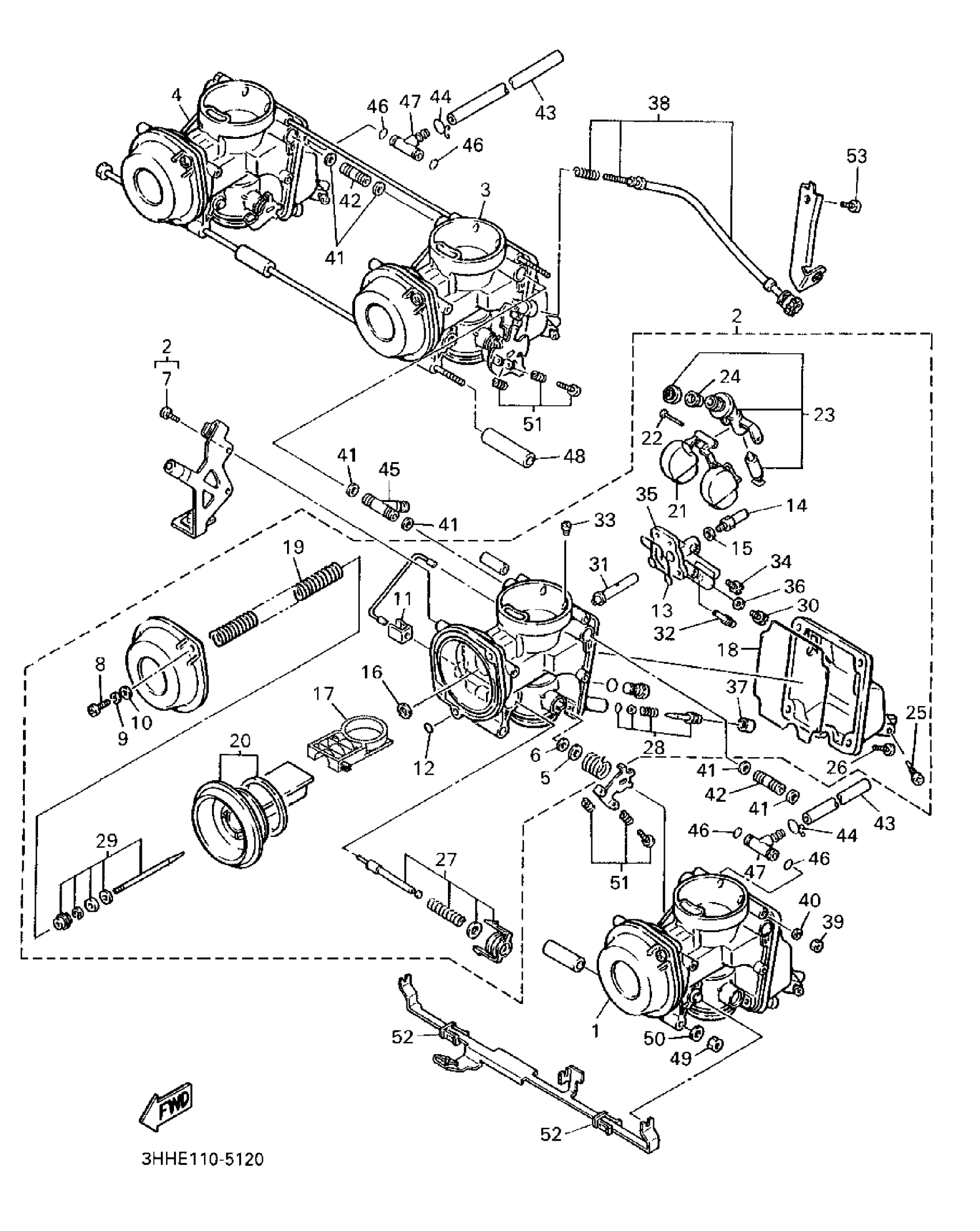

Yamaha FZR600RJC (FZR600R CA) 3UU8 1997 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
3HH-14901-04-00
Unavailable
1
CARBURETOR ASSEMBLY 1
3UU-14901-04-00
Unavailable
2
CARBURETOR ASSEMBLY 2
3HH-14902-04-00
Unavailable
2
CARBURETOR ASSEMBLY 2
3UU-14902-04-00
Unavailable
3
CARBURETOR ASSEMBLY 3
3HH-14903-04-00
Unavailable
3
CARBURETOR ASSEMBLY 3
3UU-14903-04-00
Unavailable
4
CARBURETOR ASSEMBLY 4
3HH-14904-04-00
Unavailable
4
CARBURETOR ASSEMBLY 4
3UU-14904-04-00
Unavailable
6
.. SEAL
256-14997-00-00
Unavailable
6
.. SEAL
256-14997-00-00
Unavailable
11
. PLATE
3EN-14243-00-00
Unavailable
12
SEAL
3EN-14239-00-00
Unavailable
13
O-RING
3GM-14147-00-00
Unavailable
14
SCREW
1AE-14565-00-00
Unavailable
15
WASHER,MAIN JET
137-14153-00-00
Unavailable
16
O-RING
1AE-14147-00-00
Unavailable
17
. BLOCK JET ASSEMBLY (3EN-1411A-00-00)
3EN-1411E-00-00
Unavailable
18
SEAL
3GM-14997-00-00
Unavailable
19
. SPRING, DIAPHRAGM
3HE-14933-00-00
Unavailable
20
. DIAPHRAGM ASSEMBLY
3HE-14940-00-00
Unavailable
21
. FLOAT
3HE-14985-00-00
Unavailable
22
PIN, FLOAT
353-14186-00-00
Unavailable
23
NEEDLE VALVE SET
3HH-14107-10-00
Unavailable
24
O-RING
3EN-14147-00-00
Unavailable
25
PLUG, DRAIN
12R-14191-00-00
Unavailable
26
SCREW, PAN
98517-05012-00
Unavailable
27
STARTER SET
3EN-1410A-01-00
Unavailable
28
PILOT SCREW SET
12R-14105-00-00
Unavailable
29
. NEEDLE SET
3HH-1490J-00-00
Unavailable
30
JET,MAIN #107.5
3G2-1423A-72-00
Unavailable
31
. NOZZLE, MAIN
3EN-14141-90-00
Unavailable
32
JET, PILOT (#32.5)
4G0-14142-32-A0
Unavailable
33
. JET, PILOT AIR (1325)
830-1423A-77-00
Unavailable
34
. JET, POWER (#50)
3G2-14231-10-00
Unavailable
34
JET,MAIN #52.5
3G2-1423A-61-00
Unavailable
35
. BLOCK JET ASSEMBLY
3HE-1411A-00-00
Unavailable
36
O-RING
1AE-14227-00-00
Unavailable
37
CAP
3F9-14118-00-00
Unavailable
38
THROTTLE SCREW SET
3HE-14103-00-00
Unavailable
39
NUT, HEXAGON (663)
95380-05600-00
Unavailable
40
WASHER,NEEDLE
812-14235-00-00
Unavailable
41
SEAL
3EN-14997-00-00
Unavailable
42
SPACER
3HE-14163-00-00
Unavailable
43
PIPE
3EN-14197-00-00
Unavailable
44
CLIP, PIPE
8U9-14139-00-00
Unavailable
45
PIPE, STARTER CONNECTING
3EN-14988-00-00
Unavailable
46
O-RING
36Y-14147-00-00
Unavailable
47
NIPPLE
17A-14251-00-00
Unavailable
48
PIPE
3HE-14148-00-00
Unavailable
49
NUT, HEXAGON
95380-06600-00
Unavailable
50
WASHER, PLAIN (646)
92990-06600-00
Unavailable
51
STOP SCREW SET
4KM-1490K-00-00
Unavailable
52
HOLDER
3EN-14261-00-00
Unavailable
53
GASKET, EXHAUST
98507-05008-00
Unavailable
