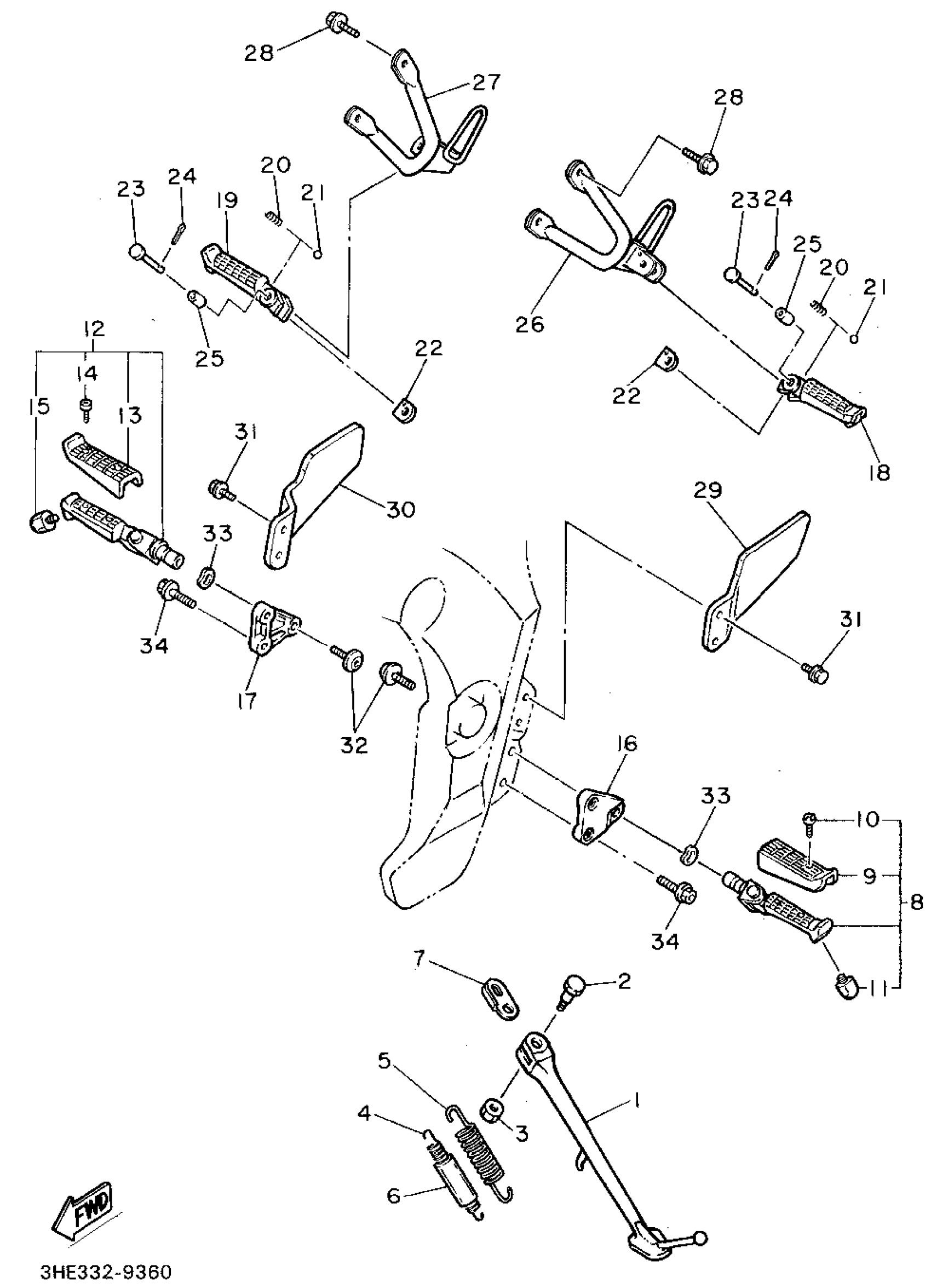

Yamaha FZR600RGC (FZR600R CA) 1995 STAND FOOTREST Diagram

#

Description
Price

1

STAND,SIDE

4BP-27311-00-00

Unavailable

2

BOLT(2GH)

90109-104E6-00

$9.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING, TENSION (4K0)

90506-18224-00

$5.60

5

SPRING, TENSION (4K0)

90506-26225-00

$11.49

6

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

7

LINK, SIDE STAND

3VD-27315-00-00

$7.99

8

FRONT FOOTREST ASSEMBLY (LEFT)

3HE-27410-00-00

Unavailable

9

COVER, FOOTREST

2GH-27413-00-00

$45.99

10

SCREW, PAN HEAD

98507-05014-00

$8.49

11

BOLT

3HE-27435-00-00

$28.99

12

FRONT FOOTREST ASSEMBLY (RIGHT)

3HE-27420-00-00

Unavailable

13

COVER, FOOTREST

2GH-27413-00-00

$45.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

3HE-27435-00-00

$28.99

16

BRACKET 2

3HE-27442-00-00

Unavailable

17

BRACKET 3

3HE-27443-00-00

Unavailable

18

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

19

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

20

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

21

BALL

93501-04011-00

Unavailable

22

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

23

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

24

PIN, COTTER

91490-20025-00

Unavailable

25

COLLAR (24R)

90387-064H8-00

Unavailable

26

BRACKET 4

3HE-2741L-00-00

Unavailable

27

BRACKET 5

3HE-2742L-01-00

Unavailable

28

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

29

PLATE 1

3HE-27445-01-00

Unavailable

30

PLATE 2

3HE-27446-01-00

Unavailable

31

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

33

WASHER, WAVE(46X)

90206-17084-00

Unavailable

34

BOLT, FLANGE(4GY)

95024-08025-00

Unavailable
