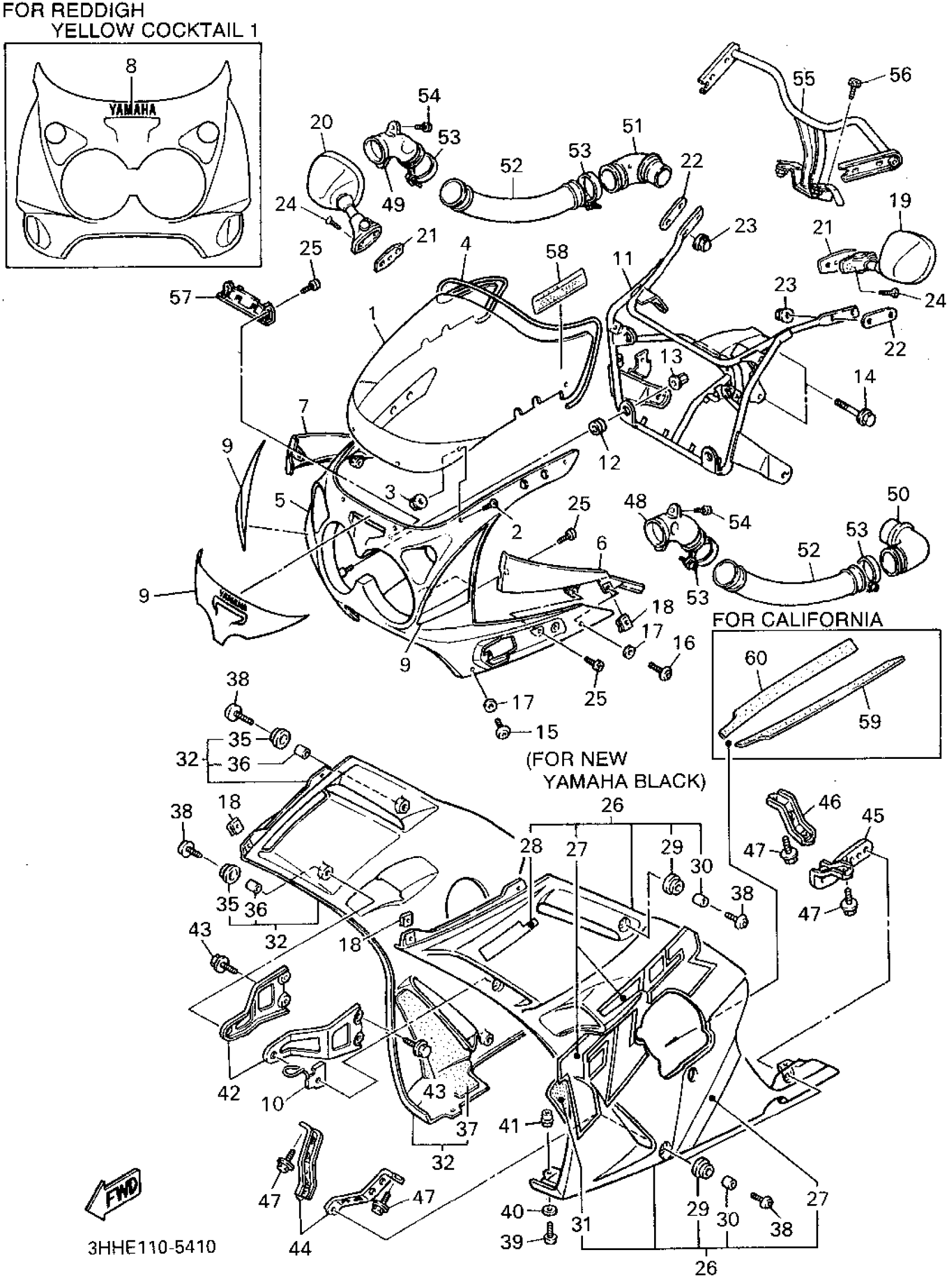

Yamaha FZR600RGC (FZR600R CA) 1995 COWLING 1 Diagram
#
1
WINDSHIELD
3HH-28381-10-00
Unavailable
5
BODY,FRONT UPPER 1 - YAM BLACK
3HE-2835G-00-33
Unavailable
5
BODY, FRONT UPPER 1 (REDDISH YELLOW COCKTAIL 1)
3HE-2835G-00-P2
Unavailable
6
PANEL 1 (BLUISH BLACK)
3EN-2835U-20-00
Unavailable
7
PANEL 2 (BLUISH BLACK)
3EN-2835V-20-00
Unavailable
8
EMBLEM, YAMAHA
99243-00080-00
Unavailable
9
GRAPHIC SET, COWLING (NEW YAMAHA BLACK)
3HH-28390-80-00
Unavailable
10
HOLDER
3HE-21596-00-00
Unavailable
11
STAY 1
3HE-28356-30-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
16
SCREW(3YF)
90149-05299-00
Unavailable
17
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
18
NUT, SPRING
90183-051A0-00
Unavailable
19
REAR VIEW MIRROR ASSEMBLY (LEFT)
3HE-26280-10-00
Unavailable
20
REAR VIEW MIRROR ASSEMBLY (RIGHT)
3HE-26290-10-00
Unavailable
21
PLATE, MIRROR FITTING 1
1AE-26298-00-00
Unavailable
22
PLATE, MIRROR FITTING 1
3CV-26298-00-00
Unavailable
23
NUT, CROWN(1FN)
90176-06055-00
Unavailable
24
SCREW, FLAT
98707-06025-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
26
BODY, FRONT LOWER 1 (NEW YAMAHA BLACK) (VERY DARK MAGENTA COCKTAIL 1)
3EN-Y283J-0C-1Y
Unavailable
26
BODY, FRONT LOWER 1 (REDDISH YELLOW COCKTAIL 1)
3EN-Y283J-E1-P0
Unavailable
27
. GRAPHIC SET, LOWER COVER 1 (NEW YAMAHA BLACK) (VERY DARK MAGENTA COCKTAIL 1)
3HH-28301-80-00
Unavailable
27
. GRAPHIC SET, LOWER COVER 1 (REDDISH YELLOW COCKTAIL 1)
3HH-28301-90-00
Unavailable
28
. EMBLEM (NEW YAMAHA BLACK)
3HH-28328-40-00
Unavailable
29
GROMMET
90480-13014-00
Unavailable
30
COLLAR(51L)
90387-067K6-00
Unavailable
31
. SEAT 2
2HE-2848K-00-00
Unavailable
32
BODY, FRONT LOWER 2 (NEW YAMAHA BLACK)
3EN-Y283K-0G-1Y
Unavailable
32
BODY, FRONT LOWER 2 (REDDISH YELLOW COCKTAIL 1)
3EN-Y283K-0H-P0
Unavailable
33
. GRAPHIC SET, LOWER COVER 2 (NEW YAMAHA BLACK)
3HH-28303-80-00
Unavailable
33
. GRAPHIC SET LOWER COVER 2 (REDDISH YELLOW COCKTAIL 1)
3HH-28303-90-00
Unavailable
34
. EMBLEM (NEW YAMAHA BLACK)
3HH-28328-40-00
Unavailable
35
GROMMET
90480-13014-00
Unavailable
36
COLLAR(51L)
90387-067K6-00
Unavailable
37
. SEAT 3
3HE-2848L-00-00
Unavailable
38
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
39
SCREW(3YF)
90149-05299-00
Unavailable
40
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
41
NUT(1KT)
90179-05523-00
Unavailable
42
STAY, SIDE 1
3HE-2831U-00-00
Unavailable
43
BOLT, FLANGE
95817-06012-00
Unavailable
44
BRACKET 1
1WG-2836A-00-00
Unavailable
45
BRACKET 1
3EN-2836A-01-00
Unavailable
46
BRACKET 2
1WG-2836E-00-00
Unavailable
47
BOLT, FLANGE
95817-06010-00
Unavailable
48
DUCT 1
3EN-2838N-00-00
Unavailable
49
DUCT 2
3EN-2838R-00-00
Unavailable
50
DUCT 3
3EN-2838T-00-00
Unavailable
51
DUCT 4
3EN-2838U-00-00
Unavailable
52
DUCT 5
3HE-2838J-01-00
Unavailable
53
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
54
SCREW, BINDING
90154-06046-00
Unavailable
55
STAY, MIRROR 1
3HE-2831W-00-00
Unavailable
56
BOLT,SOCKET
91317-06016-00
Unavailable
57
LID
3EN-28313-00-00
Unavailable
58
LABEL, CAUTION
3JJ-2835Y-00-00
Unavailable
59
SEAT 4
3HF-2848M-00-00
Unavailable
60
SEAT 5
3HF-2848N-00-00
Unavailable
