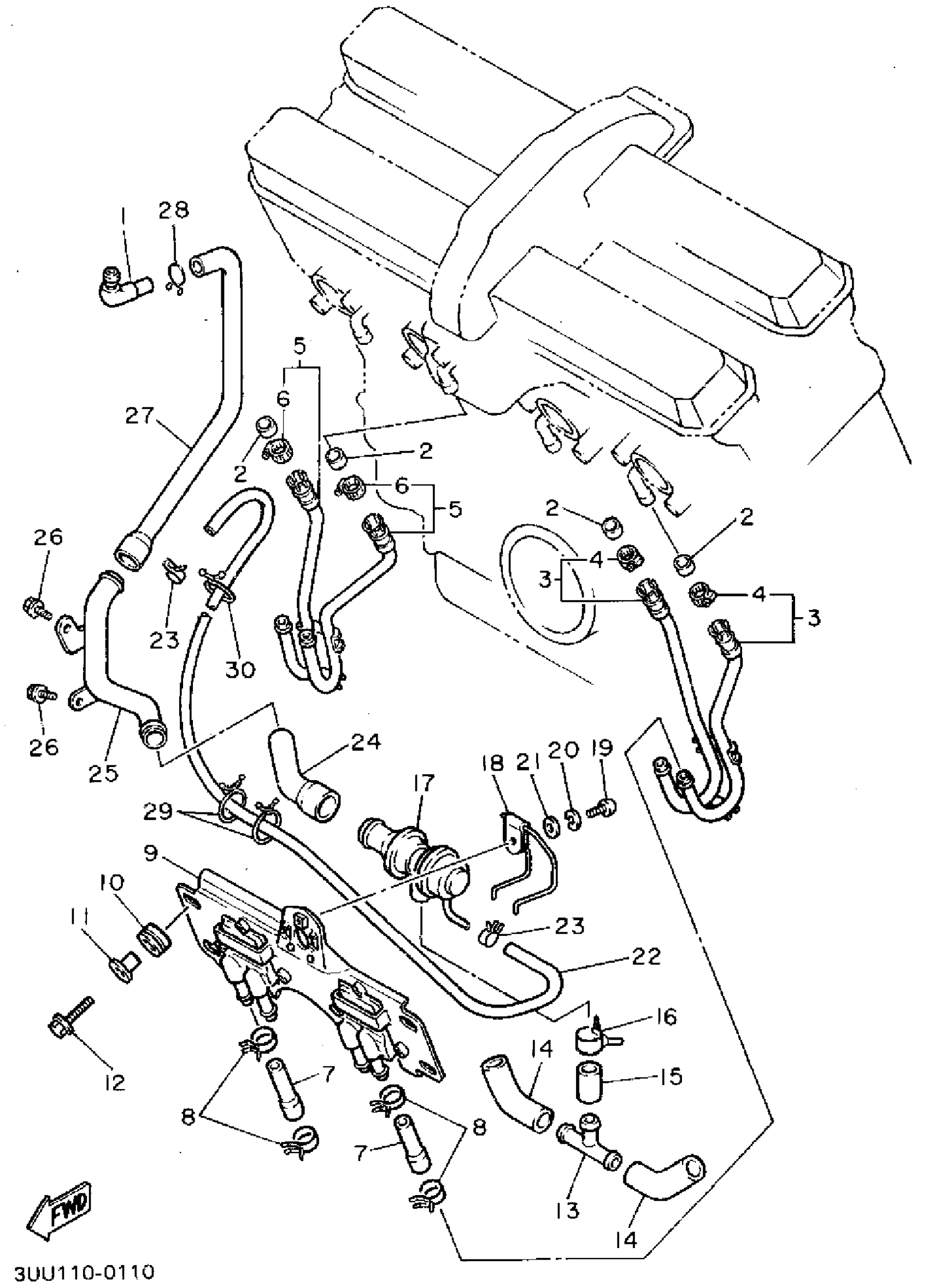

Yamaha FZR600RFC (FZR600R CA) 1994 EMISSION CONTROL DEVICE Diagram

#

Description
Price

1

PIPE

31A-14419-00-00

$7.99

2

GASKET, MUFFLER

42H-14714-10-00

Unavailable

3

PIPE 2

3HW-14872-00-00

Unavailable

4

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

5

PIPE 3

3HW-14873-00-00

Unavailable

6

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

7

HOSE, BEND 3

2LJ-14883-00-00

Unavailable

8

CLIP

90468-08104-00

$3.93

9

REED VALVE ASSEMBLY

3HW-14808-00-00

Unavailable

10

GROMET (3X3)

90480-14229-00

$8.49

11

COLLAR 437216330000

90387-07391-00

Unavailable

12

BOLT, SMALL FLANGE

95027-06025-00

$4.16

13

PIPE 4

[2L-J1487-40-00

Unavailable

14

HOSE, BEND 1

2LJ-14881-00-00

Unavailable

15

HOSE, BEND 2

2LJ-14882-00-00

Unavailable

16

CLIP(3TB)

90467-17128-00

Unavailable

17

AIR CUT VALVE ASSEMBLY

3HF-14840-00-00

Unavailable

18

CLAMP (1RV)

90462-20188-00

Unavailable

19

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

HOSE (L770)

90445-090G9-00

Unavailable

23

CLIP(41W)

90467-08092-00

Unavailable

24

HOSE, BEND 5

3HW-14885-00-00

Unavailable

25

PIPE 5

3HW-14875-00-00

Unavailable

26

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

27

HOSE, BEND 4

3HW-14884-00-00

Unavailable

28

CLIP (371)

90467-14015-00

Unavailable

29

CLAMP (8M1)

90464-30040-00

Unavailable

30

CLAMP

90464-25267-00

Unavailable
