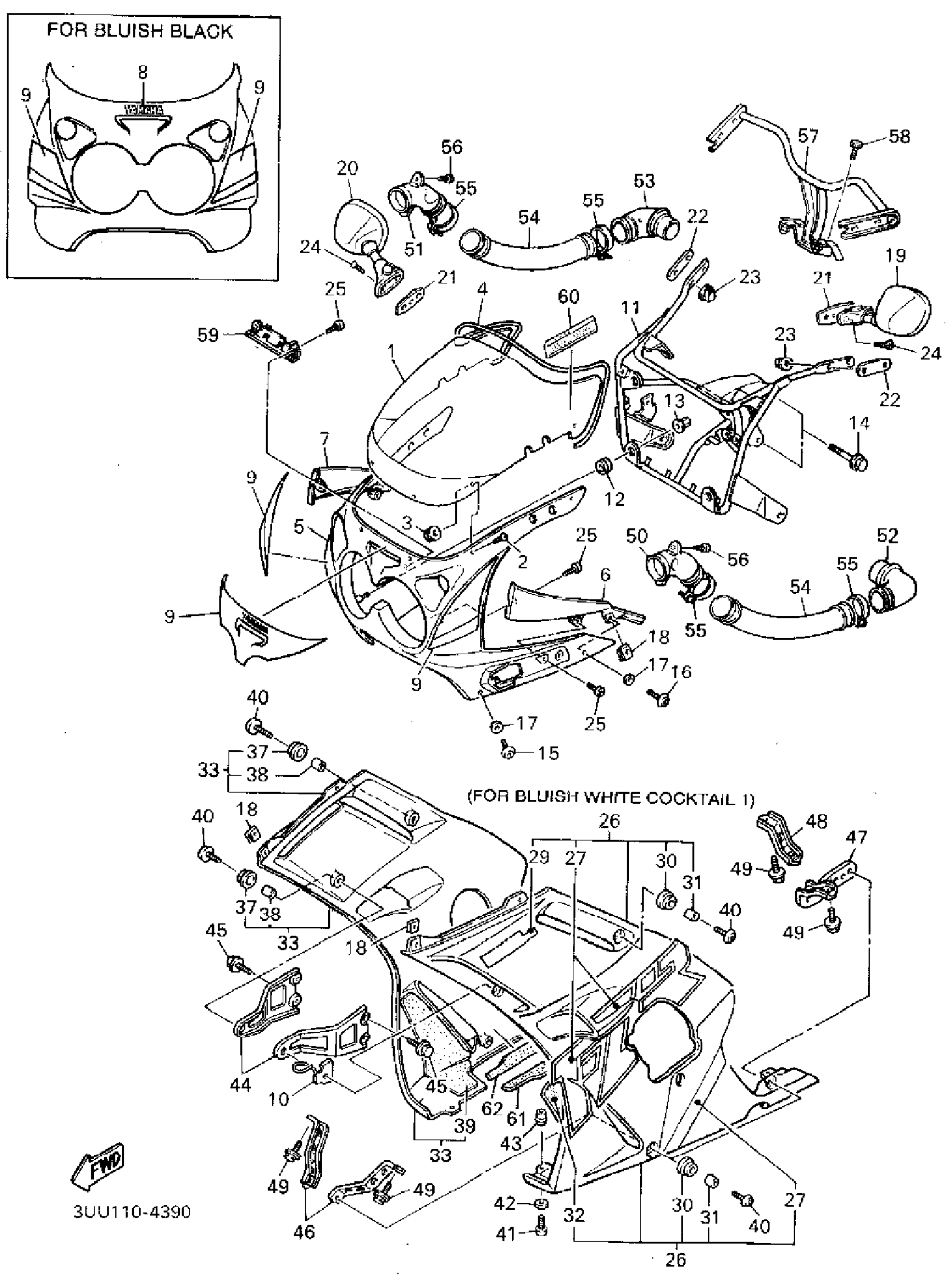

Yamaha FZR600RFC (FZR600R CA) 1994 COWLING 1 Diagram
#
1
WINDSHIELD
3HH-28381-10-00
Unavailable
5
BODY, FRONT UPPER 1
3HE-2835G-00-MW
Unavailable
5
BODY, FRONT UPPER 1
3HE-2835G-00-P1
Unavailable
6
PANEL 1 (BLUISH WHITE COCKTAIL 1)
3EN-2835U-00-00
Unavailable
6
PANEL 1 (BLUISH BLACK)
3EN-2835U-20-00
Unavailable
7
PANEL 2 (BLUISH WHITE COCKTAIL 1)
3EN-2835V-00-00
Unavailable
7
PANEL 2 (BLUISH BLACK)
3EN-2835V-20-00
Unavailable
9
GRAPHIC SET, COWLING (BLUISH WHITE COCKTAIL 1)
3HH-28390-61-00
Unavailable
9
GRAPHIC SET, COWLING (BLUISH BLACK)
3HH-28390-70-00
Unavailable
10
HOLDER
3HE-21596-00-00
Unavailable
11
STAY 1
3HE-28356-30-00
Unavailable
12
GROMET (3X3)
90480-14229-00
Unavailable
13
NUT (1AE)
90179-06500-00
Unavailable
14
BOLT, FLANGE
95817-08035-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
16
SCREW(3YF)
90149-05299-00
Unavailable
17
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
18
NUT, SPRING
90183-051A0-00
Unavailable
19
REAR VIEW MIRROR ASSY (LEFT)
3HE-26280-01-00
Unavailable
19
REAR VIEW MIRROR ASSEMBLY (LEFT)
3HE-26280-10-00
Unavailable
20
REAR VIEW MIRROR ASSY(RIGHT)
3HE-26290-00-00
Unavailable
20
REAR VIEW MIRROR ASSEMBLY (RIGHT)
3HE-26290-10-00
Unavailable
21
PLATE, MIRROR FITTING 1
1AE-26298-00-00
Unavailable
22
PLATE, MIRROR FITTING 1
3CV-26298-00-00
Unavailable
23
NUT, CROWN(1FN)
90176-06055-00
Unavailable
24
SCREW, FLAT
98707-06025-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
26
BODY, FRONT LOWER 1
3EN-Y283J-0A-MW
Unavailable
26
BODY, FRONT LOWER 1
3EN-Y283J-0B-0Y
Unavailable
27
. GRAPHIC SET, LOWER COVER 1 (BLUISH WHITE COCKTAIL 1)
3HH-28301-61-00
Unavailable
27
. GRAPHIC SET, LOWER COVER 1 (BLUISH BLACK)
3HH-28301-70-00
Unavailable
28
. EMBLEM (BLUISH BLACK)
3HH-28315-50-00
Unavailable
29
. EMBLEM (BLUISH WHITE COCKTAIL 1)
3HH-28328-30-00
Unavailable
29
EMBLEM, YAMAHA
99246-00200-00
Unavailable
30
GROMMET
90480-13014-00
Unavailable
31
COLLAR(51L)
90387-067K6-00
Unavailable
32
. SEAT 2
3HE-2848K-00-00
Unavailable
33
BODY, FRONT LOWER 2
3EN-Y283K-0B-MW
Unavailable
33
BODY, FRONT LOWER 2
3EN-Y283K-0F-0Y
Unavailable
34
. GRAPHIC SET, LOWER COVER 2 (BLUISH WHITE COCKTAIL 1)
3HH-28303-61-00
Unavailable
34
. GRAPHIC SET, LOWER COVER 2 (BLUISH BLACK)
3HH-28303-70-00
Unavailable
35
. EMBLEM (BLUISH BLACK)
3HH-28315-50-00
Unavailable
36
. EMBLEM (BLUISH WHITE COCKTAIL 1)
3HH-28328-30-00
Unavailable
36
EMBLEM, YAMAHA
99246-00200-00
Unavailable
37
GROMMET
90480-13014-00
Unavailable
38
COLLAR(51L)
90387-067K6-00
Unavailable
39
. SEAT 3
3HE-2848L-00-00
Unavailable
40
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
41
SCREW(3YF)
90149-05299-00
Unavailable
42
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
43
NUT(1KT)
90179-05523-00
Unavailable
44
STAY, SIDE 1
3HE-2831U-00-00
Unavailable
45
BOLT, FLANGE
95817-06012-00
Unavailable
46
BRACKET 1
1WG-2836A-00-00
Unavailable
47
BRACKET 1
3EN-2836A-01-00
Unavailable
48
BRACKET 2
1WG-2836E-00-00
Unavailable
49
BOLT, FLANGE
95817-06010-00
Unavailable
50
DUCT 1
3EN-2838N-00-00
Unavailable
51
DUCT 2
3EN-2838R-00-00
Unavailable
52
DUCT 3
3EN-2838T-00-00
Unavailable
53
DUCT 4
3EN-2838U-00-00
Unavailable
54
DUCT 5
3HE-2838J-01-00
Unavailable
55
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
56
SCREW, BINDING
90154-06046-00
Unavailable
57
STAY, MIRROR 1
3HE-2831W-00-00
Unavailable
58
BOLT,SOCKET
91317-06016-00
Unavailable
59
LID
3EN-28313-00-00
Unavailable
60
LABEL, CAUTION
3JJ-2835Y-00-00
Unavailable
61
SEAT 4
3HF-2848M-00-00
Unavailable
62
SEAT 5
3HF-2848N-00-00
Unavailable
