Description

Price

1

PEDAL, BRAKE

3HE-27211-00-00

Unavailable

2

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

3

SPRING, TENSION(46X)

90506-20377-00

$8.49

4

HOSE(3GM)

90446-17346-00

$5.60

5

MASTER CYLINDER ASSEMBLY

1WG-25850-50-00

Unavailable

6

CYL KIT,MASTER

1WG-W0042-50-00

Unavailable

7

CONNECTOR

29L-2582A-50-00

Unavailable

8

O-RING (22U)

93210-15566-00

$7.49

9

SCREW, PAN HEAD

98511-04012-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

BOLT, BUTTON

92017-08025-00

$8.49

13

JOINT

31A-27222-00-00

$43.99

14

. NUT

95380-08700-00

Unavailable

15

PIN W/HOLE 307181180000

90240-08013-00

$8.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

PIN, COTTER

91490-20025-00

Unavailable

18

TANK, RESERVOIR

31A-25894-01-00

Unavailable

19

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

20

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

21

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

22

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

23

PLATE

31A-14477-10-00

Unavailable

24

HOSE, RESERVOIR

1WG-25895-00-00

Unavailable

25

CLIP (5K4)

90467-14057-00

Unavailable

26

HOSE, BRAKE 1

3HE-25872-60-00

Unavailable

27

BOLT, UNION(3GM)

90401-10159-00

Unavailable

28

WASHER, PLATE(481)

90201-10118-00

Unavailable

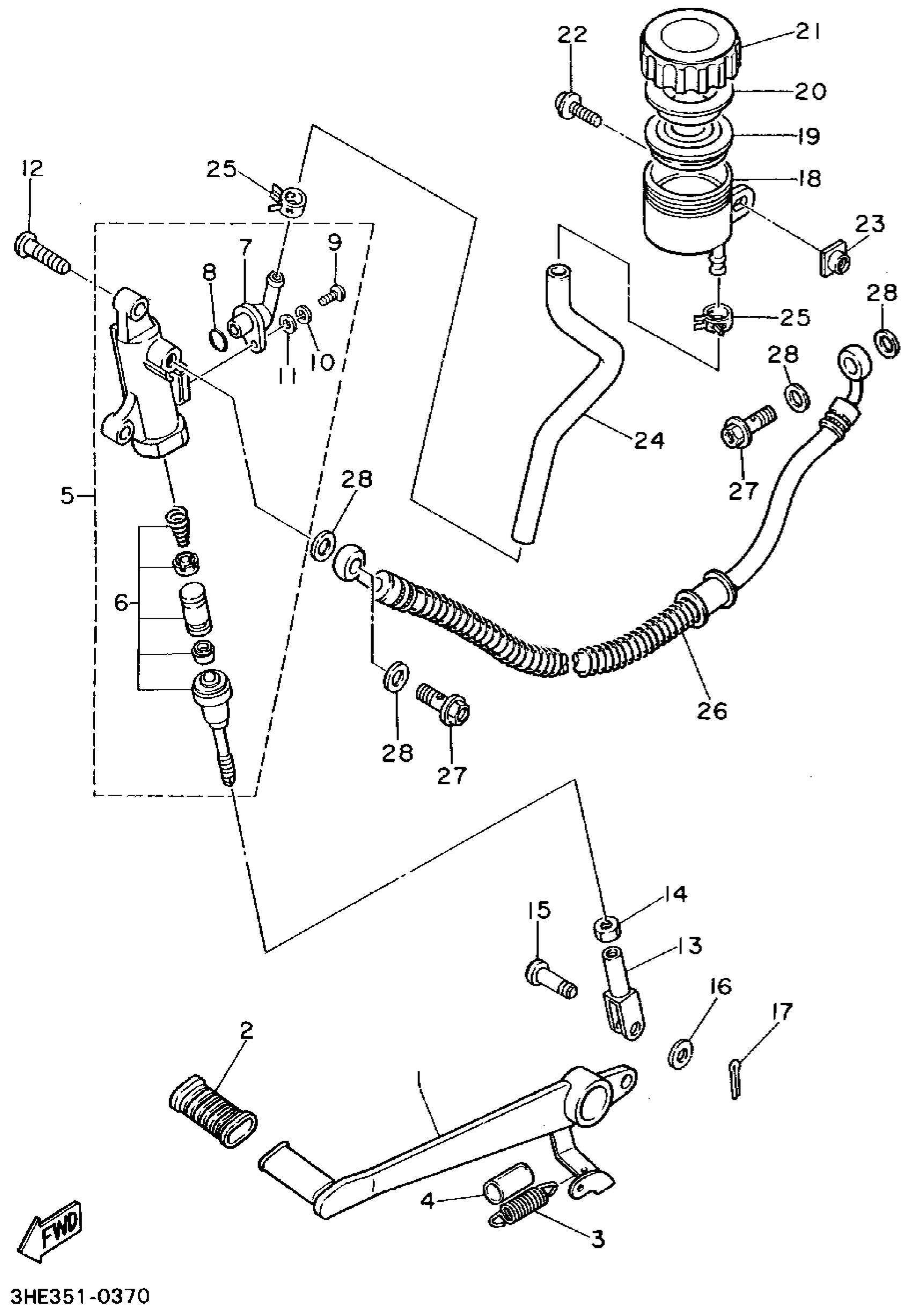

Yamaha FZR600RF (FZR600R) 1994 REAR MASTER CYLINDER Diagram

PEDAL, BRAKE

COVER, SHIFT PEDAL

SPRING, TENSION(46X)

HOSE(3GM)

MASTER CYLINDER ASSEMBLY

CYL KIT,MASTER

CONNECTOR

O-RING (22U)

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

WASHER, PLAIN (646)

BOLT, BUTTON

JOINT

. NUT

PIN W/HOLE 307181180000

WASHER, PLATE 1562722600

PIN, COTTER

TANK, RESERVOIR

DIAPHRAGM, RESERVER

BUSH,DIAPHRAGM

CAP, RESERVOIR

SCREW, WITH WASHER (5U8)

PLATE

HOSE, RESERVOIR

CLIP (5K4)

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)
