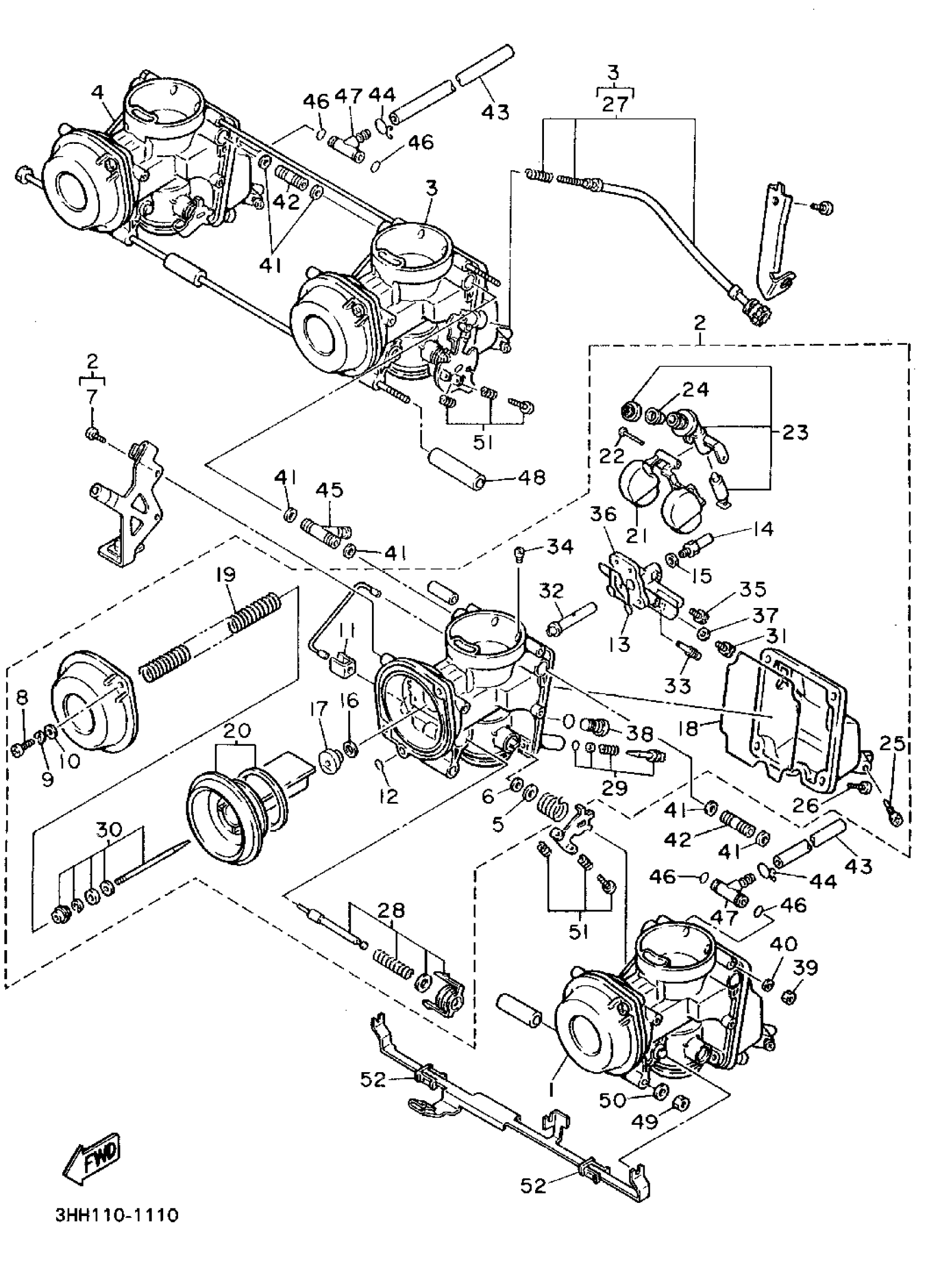

Yamaha FZR600RF (FZR600R) 1994 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3HH-14901-04-00

Unavailable

2

CARBURETOR ASSEMBLY 2

3HH-14902-04-00

Unavailable

3

CARBURETOR ASSEMBLY 3

3HH-14903-04-00

Unavailable

4

CARBURETOR ASSEMBLY 4

3HH-14904-04-00

Unavailable

5

WASHER (3H1)

1A8-14953-00-00

$6.99

6

.. SEAL

256-14997-00-00

Unavailable

6

.. SEAL

256-14997-00-00

Unavailable

7

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

8

SCREW, PAN HEAD

90157-05M19-00

Unavailable

9

WASHER(3SX)

92907-05100-00

$8.49

10

WASHER(1RW)

92907-05600-00

$3.78

11

. PLATE

3EN-14243-00-00

Unavailable

12

SEAL

3EN-14239-00-00

Unavailable

13

O-RING

3GM-14147-00-00

$7.99

14

SCREW

1AE-14565-00-00

$30.99

15

WASHER,MAIN JET

137-14153-00-00

Unavailable

16

O-RING

1AE-14147-00-00

Unavailable

17

. BLOCK JET ASSEMBLY (3EN-1411A-00-00)

3EN-1411E-00-00

Unavailable

18

SEAL

3GM-14997-00-00

Unavailable

19

. SPRING, DIAPHRAGM

3HE-14933-00-00

Unavailable

20

. DIAPHRAGM ASSEMBLY

3HE-14940-00-00

Unavailable

21

. FLOAT

3HE-14985-00-00

Unavailable

22

PIN, FLOAT

353-14186-00-00

Unavailable

23

NEEDLE VALVE SET

3HH-14107-10-00

Unavailable

24

O-RING

3EN-14147-00-00

Unavailable

25

PLUG, DRAIN

12R-14191-00-00

Unavailable

26

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

27

THROTTLE SCREW SET

3HE-14103-00-00

Unavailable

28

STARTER SET

3EN-1410A-01-00

Unavailable

29

PILOT SCREW SET

12R-14105-00-00

Unavailable

30

. NEEDLE SET

3HH-1490J-00-00

Unavailable

31

JET,MAIN #107.5

3G2-1423A-72-00

Unavailable

32

. NOZZLE, MAIN

3EN-14141-90-00

Unavailable

33

JET, PILOT (#32.5)

4G0-14142-32-A0

Unavailable

34

. JET, PILOT AIR (1325)

830-1423A-77-00

Unavailable

35

JET,MAIN #52.5

3G2-1423A-61-00

Unavailable

36

. BLOCK JET ASSEMBLY

3HE-1411A-00-00

Unavailable

37

O-RING

1AE-14227-00-00

Unavailable

38

CAP

3F9-14118-00-00

Unavailable

39

NUT, HEXAGON (663)

95380-05600-00

Unavailable

40

WASHER,NEEDLE

812-14235-00-00

Unavailable

41

SEAL

3EN-14997-00-00

Unavailable

42

SPACER

3HE-14163-00-00

Unavailable

43

PIPE

3EN-14197-00-00

Unavailable

44

CLIP, PIPE

8U9-14139-00-00

Unavailable

45

PIPE, STARTER CONNECTING

3EN-14988-00-00

Unavailable

46

O-RING

36Y-14147-00-00

Unavailable

47

NIPPLE

17A-14251-00-00

Unavailable

48

PIPE

3HE-14148-00-00

Unavailable

49

NUT, U FLANGE

95604-06200-00

Unavailable

50

WASHER, PLAIN (646)

92990-06600-00

Unavailable

51

STOP SCREW SET

4KM-1490K-00-00

Unavailable

52

HOLDER

3EN-14261-00-00

Unavailable
