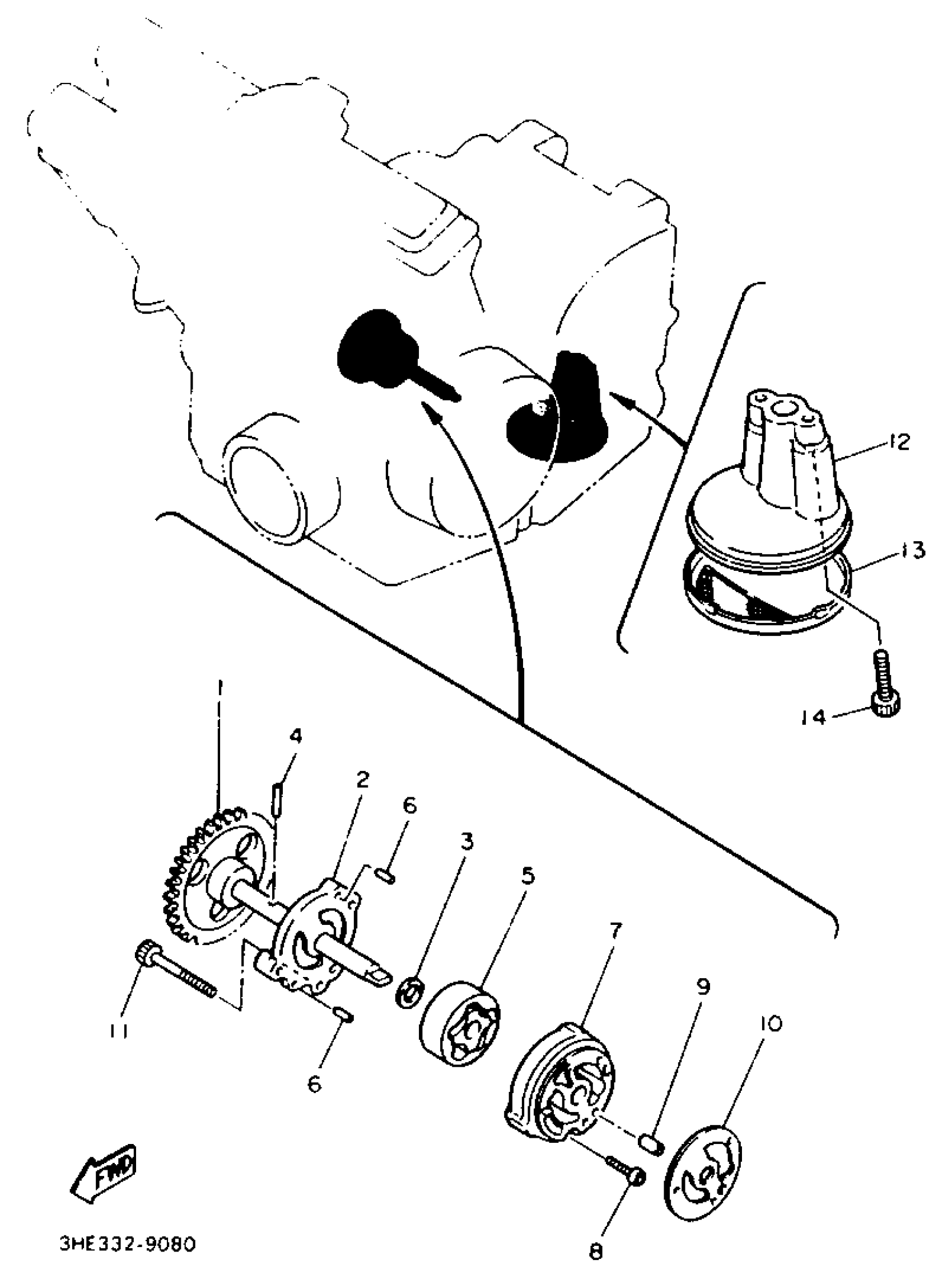

Yamaha FZR600REC (FZR600R CA) 1993 OIL PUMP Diagram

#

Description
Price

1

PUMP SHAFT ASSEMBLY

1WG-13330-01-00

Unavailable

2

COVER, PUMP

1WG-13316-00-00

Unavailable

3

WASHER, PLATE(1WG)

90201-113K2-00

$9.49

4

PIN,DOWEL

93603-17070-00

$4.14

5

ROTOR ASSY 1

1WG-13310-00-00

Unavailable

6

PIN, DOWEL (341)

93603-09106-00

$2.28

7

HOUSING, ROTOR

1WG-13336-00-00

Unavailable

8

SCREW PAN HEAD

98580-06020-00

$8.49

9

PIN, DOWEL(N04)

91808-12024-00

$4.24

10

GASKET, PUMP COVER

1WG-13329-00-00

$7.99

11

BOLT,SOCKET

91317-06050-00

$3.88

12

HOUSING, STRAINER

1WG-13412-00-00

Unavailable

13

STRAINER, OIL

4H7-13411-02-00

Unavailable

14

BOLT, HEX SKT HEADSOCKET HEAD

90110-06099-00

Unavailable
