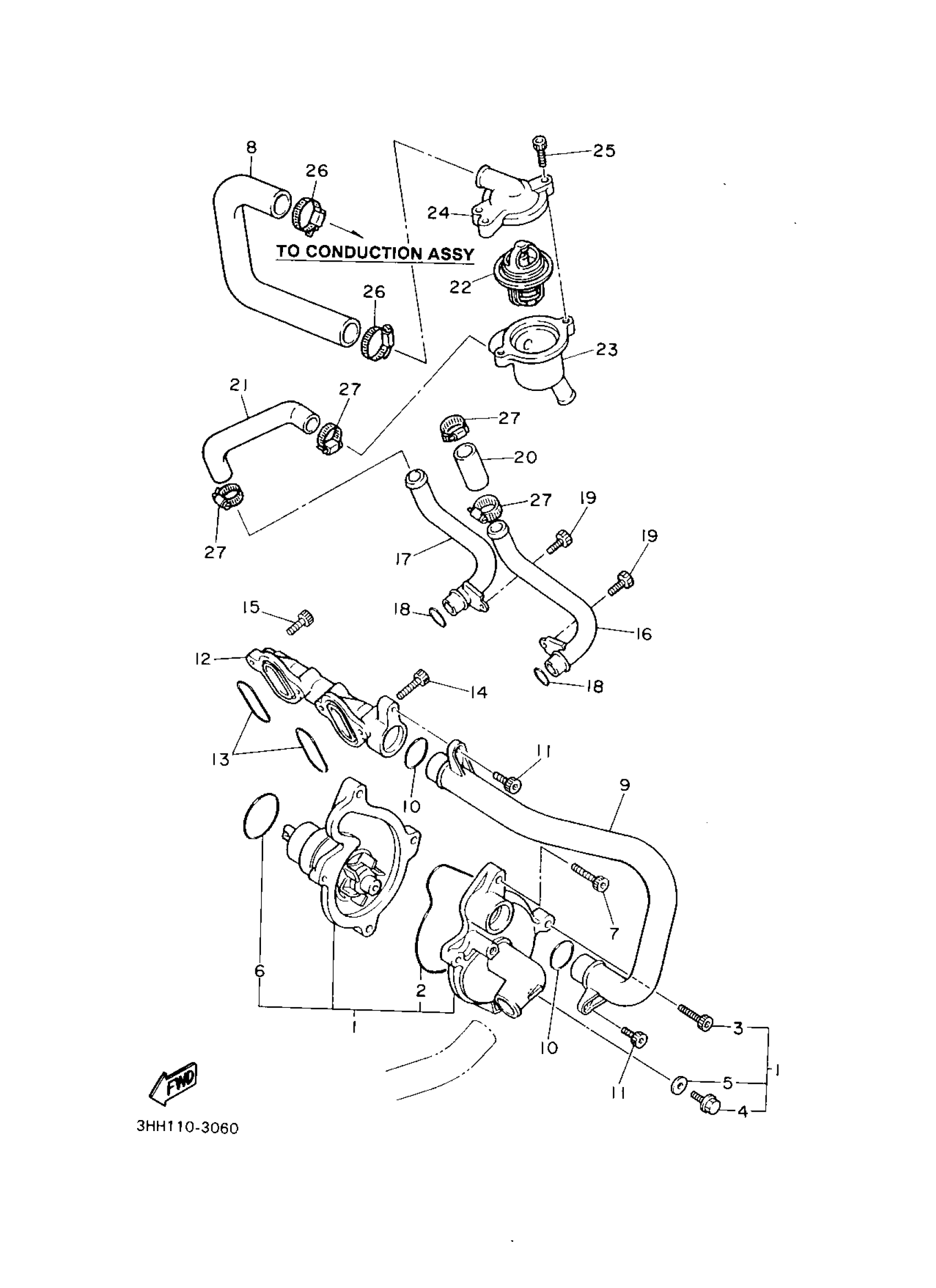

Yamaha FZR600RE (FZR600R) 1993 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY (O-RING)

3TJ-Y1242-00-00

Unavailable

2

O-RING

1WG-12439-00-00

$27.99

3

BOLT,SOCKET HEAD

91314-06025-00

$8.49

4

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

5

GASKET 256113960000

90430-06014-00

Unavailable

6

O-RING (626)

93210-33133-00

$2.92

7

BOLT,SOCKET

91317-06035-00

Unavailable

8

HOSE 4

3HE-12579-00-00

Unavailable

9

PIPE 1

1WG-12481-00-00

Unavailable

10

O-RING

93210-21190-00

$7.49

11

BOLT,SOCKET

91317-06012-00

$8.49

12

J0INT

1WG-12446-01-00

Unavailable

13

O-RING(1WG)

93210-17746-00

$7.49

14

BOLT,SOCKET

91317-06040-00

$3.76

15

BOLT,SOCKET

91317-06025-00

$5.60

16

PIPE 2

1WG-12482-00-00

Unavailable

17

PIPE 3

1WG-12483-00-00

Unavailable

18

O-RING (22U)

93210-15566-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

$8.49

20

HOSE 1

3HE-12576-00-00

Unavailable

21

HOSE 2

3HE-12577-00-00

Unavailable

22

THERMOSTAT ASSY

46X-12410-01-00

Unavailable

23

HOUSING, THERMOSTAT

1WG-12417-00-00

Unavailable

24

1500 1500

1WG-12413-01-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

26

HOSE CLAMP ASSY

90450-32015-00

Unavailable

27

HOSE CLAMP ASSY

90450-28001-00

Unavailable
