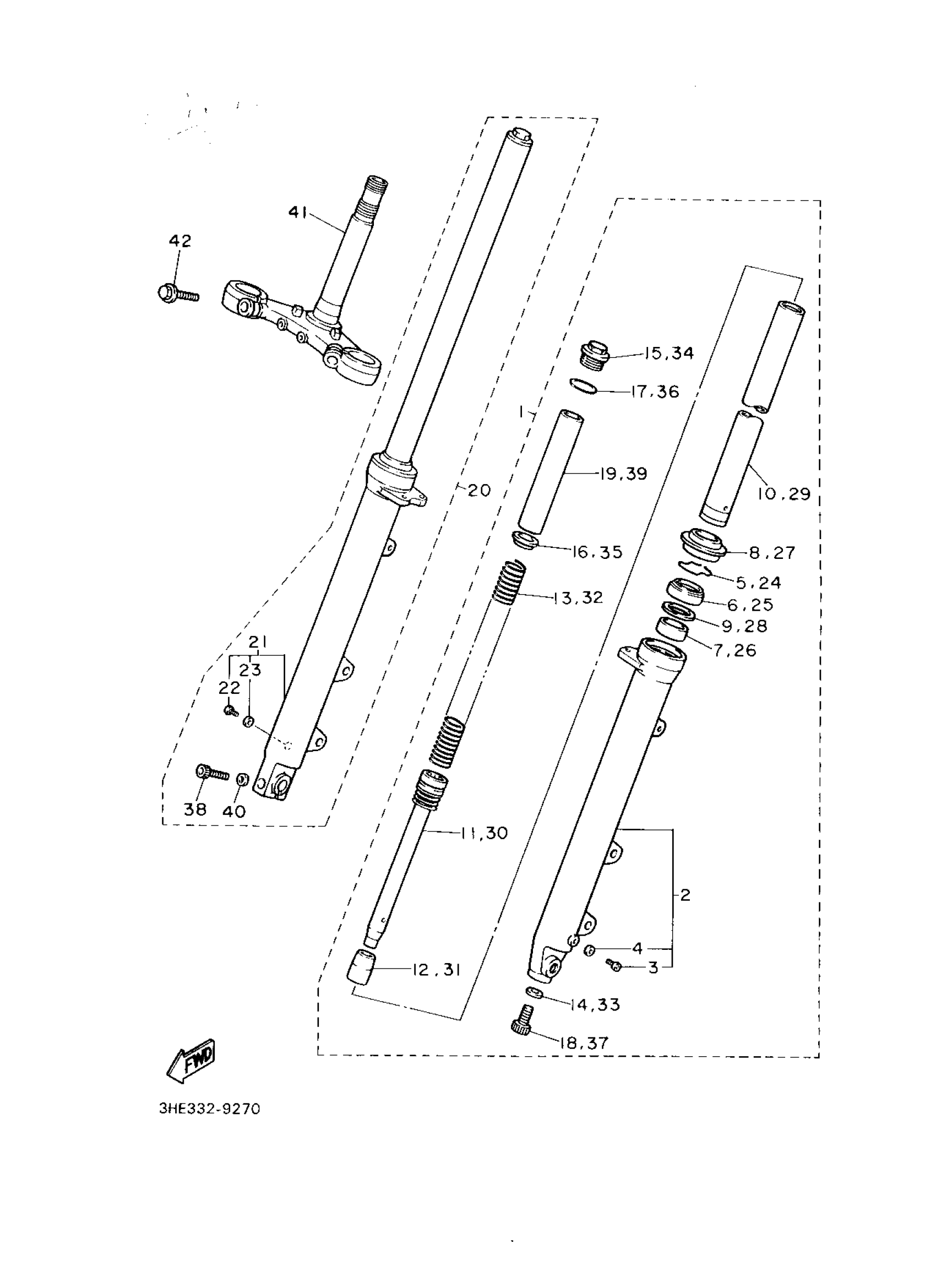

Yamaha FZR600RE (FZR600R) 1993 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (LH)

3HE-23102-12-00

Unavailable

2

. TUBE, OUTER (LEFT)

3HE-23126-10-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

RING, SNAP

3R4-23153-00-00

$8.99

6

OIL SEAL

3EN-23145-00-00

$25.99

7

METAL, SLIDE 1

2YK-23125-00-00

$43.99

8

SEAL, DUST

3EN-23144-01-00

$27.99

9

WASHER

4V2-23146-L0-00

$29.99

10

. INNER TUBE COMP 1

3BF-23110-50-00

Unavailable

11

. CYLINDER COMP, FRONT FORK

3HE-23170-00-00

Unavailable

12

SPINDLE, TAPER

2YK-23173-00-00

Unavailable

13

. SPRING, FRONT FORK

3HE-23141-00-00

Unavailable

14

GASKET

509-23158-L0-00

$16.49

15

. BOLT, CAP

3EN-23111-00-00

Unavailable

16

. SEAT, SPRING UPPER

1FK-23142-00-00

Unavailable

17

O-RING

1W4-23114-L0-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

19

. SPACER

1WG-23118-00-00

Unavailable

20

FRONT FORK ASY R

3HE-23103-12-00

Unavailable

21

. TUBE, OUTER (RIGHT)

3HE-23136-10-00

Unavailable

22

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

23

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

24

RING, SNAP

3R4-23153-00-00

$8.99

25

OIL SEAL

3EN-23145-00-00

$25.99

26

METAL, SLIDE 1

2YK-23125-00-00

$43.99

27

SEAL, DUST

3EN-23144-01-00

$27.99

28

WASHER

4V2-23146-L0-00

$29.99

29

. INNER TUBE COMP 1

3BF-23110-50-00

Unavailable

30

. CYLINDER COMP, FRONT FORK

3HE-23170-00-00

Unavailable

31

SPINDLE, TAPER

2YK-23173-00-00

Unavailable

32

. SPRING, FRONT FORK

3HE-23141-00-00

Unavailable

33

GASKET

509-23158-L0-00

$16.49

34

. BOLT, CAP

3EN-23111-00-00

Unavailable

35

. SEAT, SPRING UPPER

1FK-23142-00-00

Unavailable

36

O-RING

1W4-23114-L0-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

38

BOLT,SOCKET

91314-08040-00

Unavailable

39

. SPACER

1WG-23118-00-00

Unavailable

40

WASHER PLATE 141181390000

90201-08085-00

Unavailable

41

UNDER BRACKET COMP.

1WG-23340-01-00

Unavailable

42

BOLT 2

2NX-23356-00-00

Unavailable
