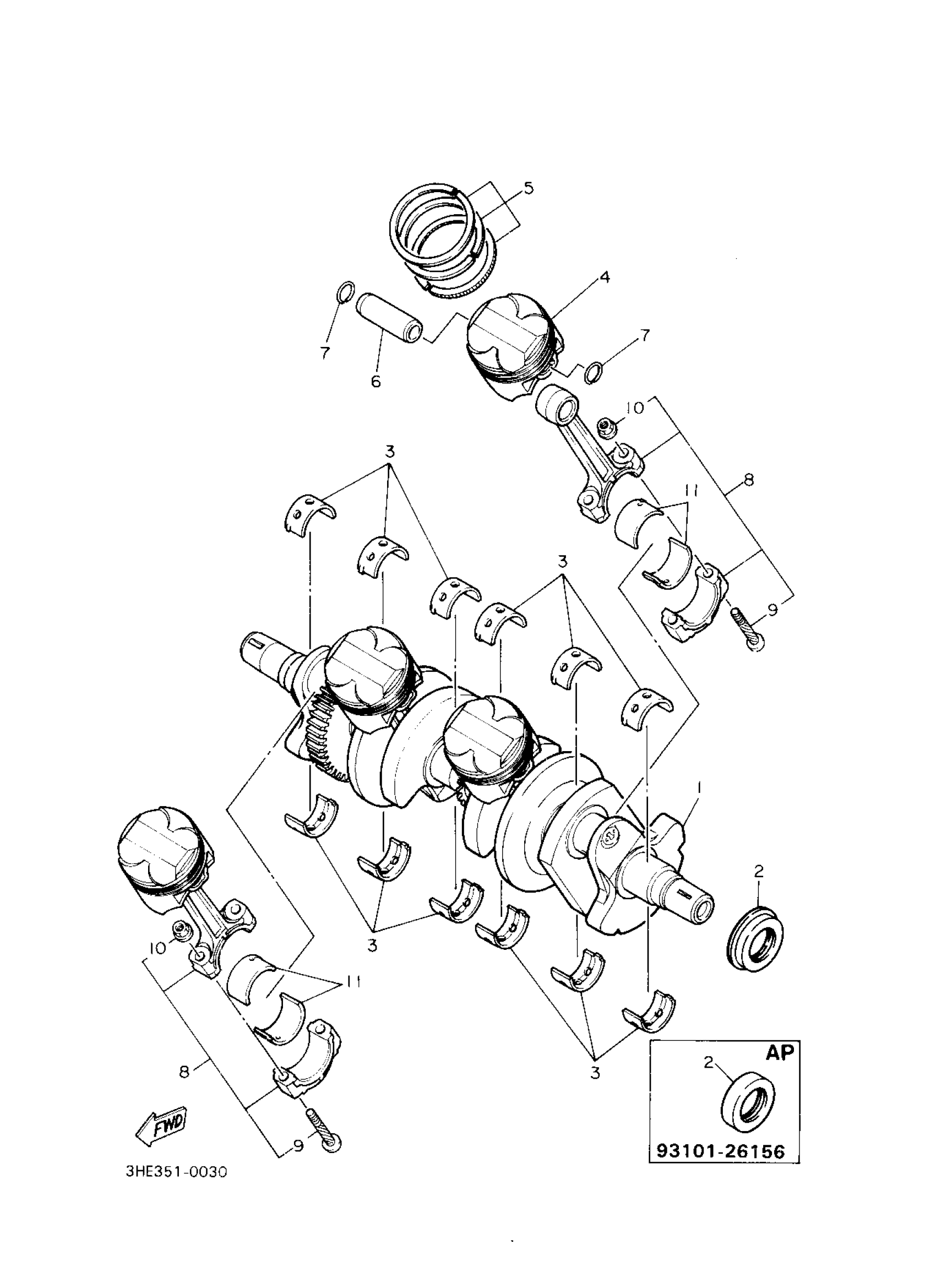

Yamaha FZR600RE (FZR600R) 1993 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

3HE-11411-00-00

Unavailable

2

OIL SEAL

93101-26156-00

Unavailable

2

OIL SEAL

93101-26156-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-00-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-10-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-20-00

$17.49

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-30-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-40-00

Unavailable

4

PISTON (STD)

3HE-11631-00-00

Unavailable

4

PISTON (0.50MM O/S)

3HE-11636-00-00

$91.99

4

PISTON (1.00MM O/S)

3HE-11638-00-00

Unavailable

5

PISTON RING SET (STD)

3HE-11610-00-00

Unavailable

5

PISTON RING SET (2ND O/S)

3HE-11610-20-00

Unavailable

5

PISTON RING SET (1.00MM O/S)

3HE-11610-40-00

Unavailable

6

PIN, PISTON

3HE-11633-00-00

Unavailable

7

CIRCLIP (1L9)

93450-17044-00

Unavailable

8

CONNECTING ROD ASSEMBLY

3HE-11650-01-00

Unavailable

9

BOLT, CONNECTING ROD

1WG-11654-00-00

Unavailable

10

. NUT

90179-07531-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

1WG-11656-00-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

1WG-11656-10-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

1WG-11656-20-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

1WG-11656-30-00

Unavailable
