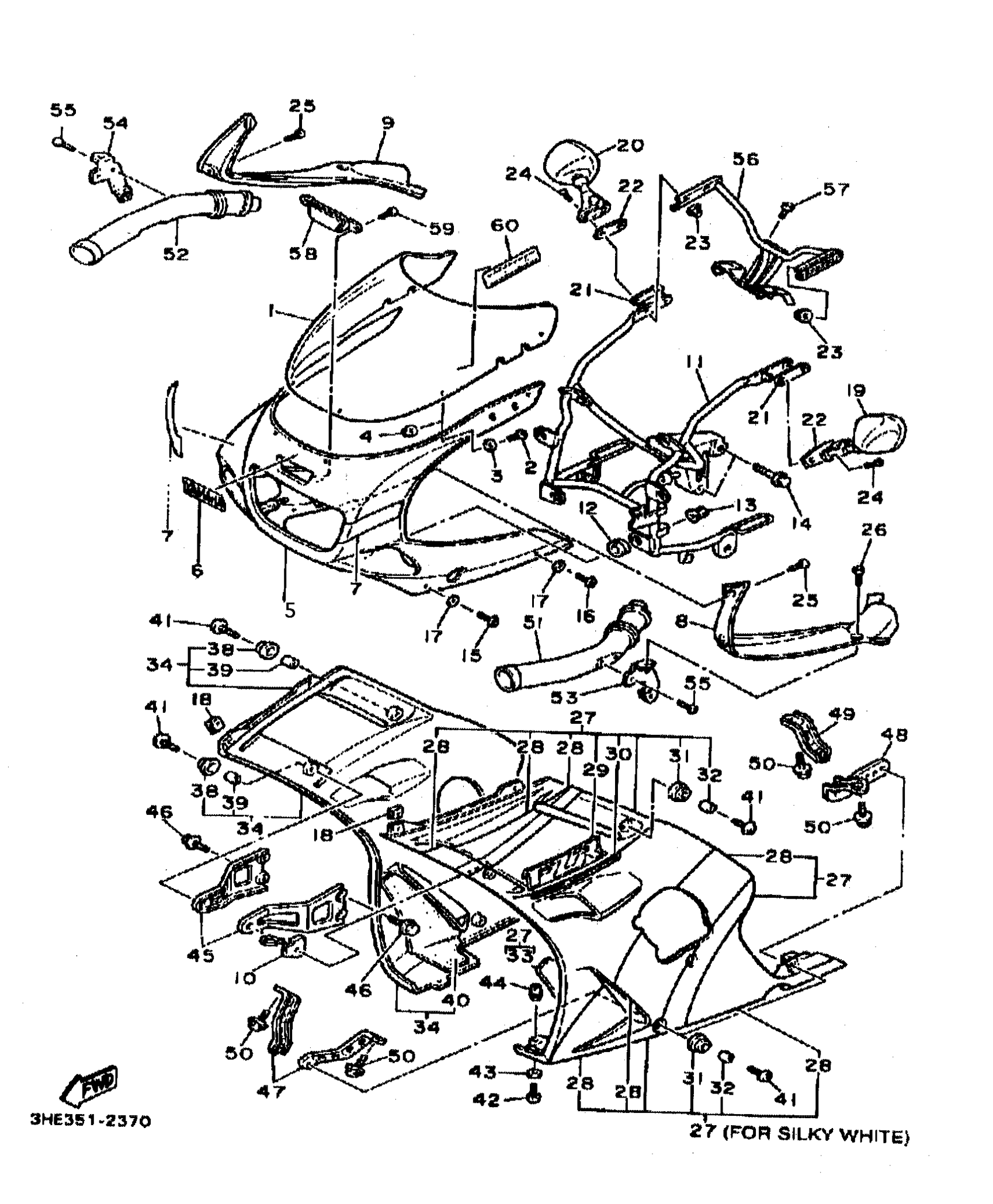

Yamaha FZR600RD (FZR600) 4NA2 1992 COWLING 1 Diagram
#
1
WINDSHIELD
3HE-28381-50-00
Unavailable
5
BODY, FRONT UPPER 1
3HE-2835G-50-KM
Unavailable
5
BODY, FRONT UPPER 1
3HE-Y283G-90-0X
Unavailable
7
GRAPHIC SET, COWLING
3HE-28390-70-00
Unavailable
7
GRAPHIC SET, COWLING (NEAT BLUE)
3HH-28390-30-00
Unavailable
8
PANEL 1
3HE-2835U-50-00
Unavailable
9
PANEL 2
3HE-2835V-50-00
Unavailable
10
HOLDER
3HE-21596-00-00
Unavailable
11
STAY 1
3HE-28356-50-00
Unavailable
13
NUT (1AE)
90179-06500-00
Unavailable
14
BOLT, FLANGE
95817-08035-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
16
SCREW(3YF)
90149-05299-00
Unavailable
17
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
18
NUT, SPRING
90183-051A0-00
Unavailable
19
REAR VIEW MIRROR ASSY (LEFT)
3HE-26280-01-00
Unavailable
19
REAR VIEW MIRROR ASSEMBLY (LEFT)
3HE-26280-10-00
Unavailable
20
REAR VIEW MIRROR ASSY(RIGHT)
3HE-26290-00-00
Unavailable
20
REAR VIEW MIRROR ASSEMBLY (RIGHT)
3HE-26290-10-00
Unavailable
21
PLATE, MIRROR FITTING 1
3CV-26298-00-00
Unavailable
22
PLATE, MIRROR FITTING 2
3CV-26299-00-00
Unavailable
23
NUT, CROWN(1FN)
90176-06055-00
Unavailable
24
SCREW, FLAT
98707-06030-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
26
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
27
BODY, FRONT LOWER 1
3EN-Y283J-L1-GE
Unavailable
27
BODY, FRONT LOWER 1
3EN-Y283J-N1-KM
Unavailable
28
. GRAPHIC SET, LOWER COVER 1
3HE-28301-71-00
Unavailable
28
. GRAHIC SET, LOWER COVER 1
3HH-28301-30-00
Unavailable
29
. EMBLEM
3HE-28315-70-00
Unavailable
29
. EMBLEM
3HH-28315-30-00
Unavailable
30
. EMBLEM
3HE-28328-71-00
Unavailable
31
GROMMET
90480-13014-00
Unavailable
32
COLLAR(51L)
90387-067K6-00
Unavailable
33
. SEAT 2
3HE-2848K-00-00
Unavailable
34
BODY, FRONT LOWER 2
3EN-Y283K-L0-GE
Unavailable
34
BODY, FRONT LOWER 2
3EN-Y283K-N0-KM
Unavailable
35
. GRAPHIC SET, LOWER COVER 2
3HE-28303-71-00
Unavailable
35
. GRAPHIC SET, LOWER COVER 2
3HH-28303-30-00
Unavailable
36
. EMBLEM
3HE-28315-70-00
Unavailable
36
. EMBLEM
3HH-28315-30-00
Unavailable
37
. EMBLEM
3HE-28328-71-00
Unavailable
38
GROMMET
90480-13014-00
Unavailable
39
COLLAR(51L)
90387-067K6-00
Unavailable
40
. SEAT 3
3HE-2848L-00-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
42
SCREW(3YF)
90149-05299-00
Unavailable
43
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
44
NUT(1KT)
90179-05523-00
Unavailable
45
STAY, SIDE 1
3HE-2831U-00-00
Unavailable
46
BOLT, FLANGE
95817-06012-00
Unavailable
47
BRACKET 1
1WG-2836A-00-00
Unavailable
48
BRACKET 1
3EN-2836A-01-00
Unavailable
49
BRACKET 2
1WG-2836E-00-00
Unavailable
50
BOLT, FLANGE
95817-06010-00
Unavailable
51
DUCT 1
3HE-2838N-50-00
Unavailable
52
DUCT 2
3HE-2838R-50-00
Unavailable
53
STAY, FRONT BUMPER 1
3HE-28413-50-00
Unavailable
54
STAY, FRONT BUMPER 2
3HE-28414-50-00
Unavailable
55
SCREW, PAN TAP.2 SLIT
97707-40612-00
Unavailable
56
STAY, MIRROR 1
3HE-2831W-50-00
Unavailable
57
BOLT,SOCKET
91317-06016-00
Unavailable
58
CAP
3LK-84378-00-KM
Unavailable
58
CAP
3LK-84378-00-P1
Unavailable
59
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
60
LABEL, CAUTION
3JJ-2835Y-00-00
Unavailable
