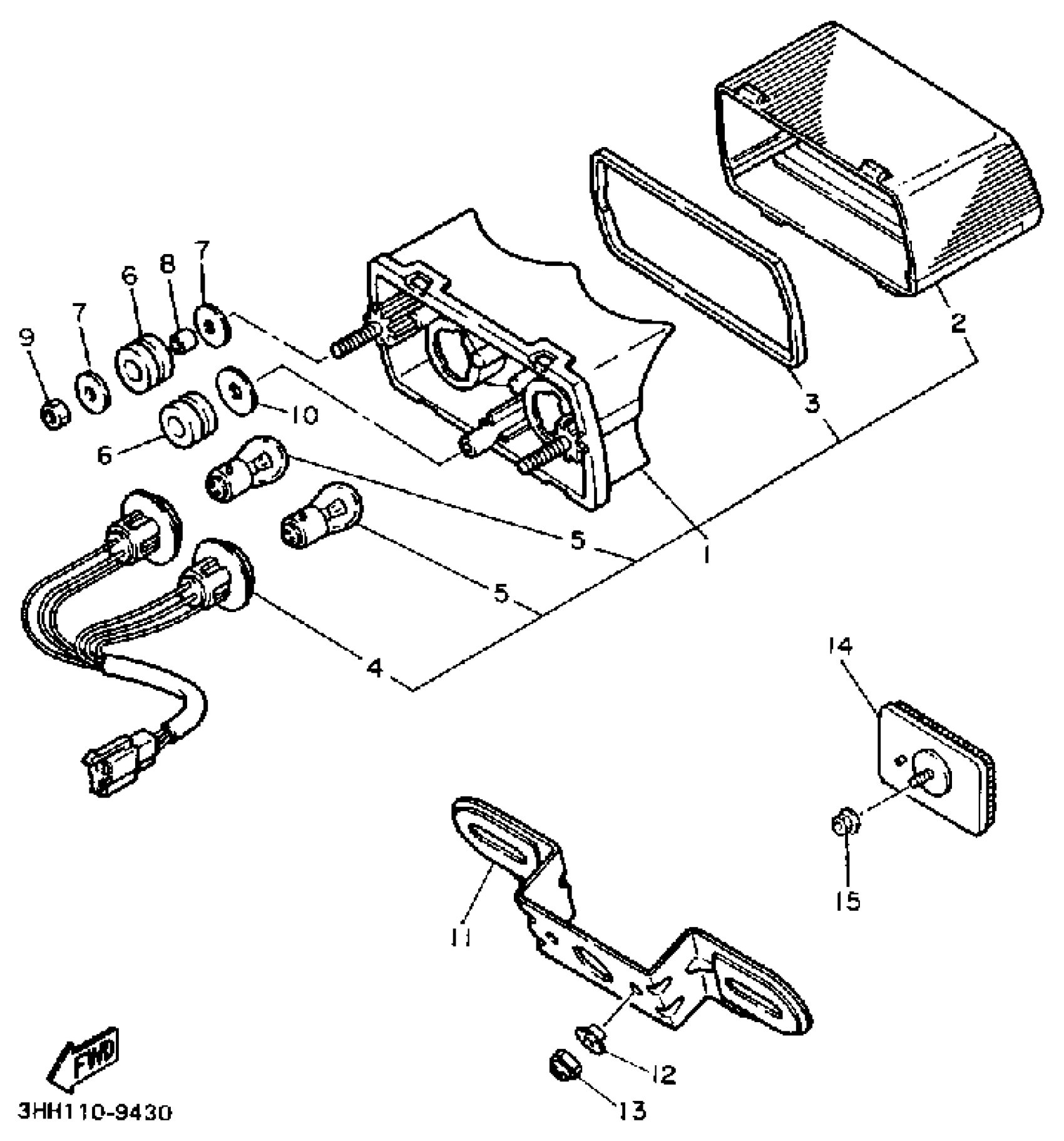

Yamaha FZR600RB (FZR600) 1991 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

52X-84710-60-00

Unavailable

2

LENS, TAILLIGHT

47X-84721-00-00

Unavailable

3

GASKET, TAIL LENS

47X-84723-00-00

Unavailable

4

. CORD ASSEMBLY

47X-84735-00-00

Unavailable

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

6

GROMMET

90480-18407-00

Unavailable

7

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

8

COLLAR(1AE)

90387-060N3-00

$8.61

9

NUT, HEXAGON

95380-06600-00

$4.11

10

WASHER, PLAIN(3BM)

92907-10200-00

$3.34

11

BRACKET, LICENSE

2LJ-84751-00-90

Unavailable

12

COLLAR(47X)

90387-061M0-00

$6.61

13

NUT, SELF-LOCKING

95617-06100-00

$2.17

14

REAR REFLECTOR ASSY

4KM-85130-00-00

$18.99

15

NUT, FLANGE(3GM)

95707-05500-00

$5.76
