Description

Price

1

RADIATOR ASSEMBLY

3HE-12461-00-00

Unavailable

2

BLOWER ASSEMBLY

3HE-12405-00-00

Unavailable

3

MOTOR ASSEMBLY

1AA-12630-00-00

Unavailable

4

FAN

1UF-12611-00-00

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

WASHER, PLAIN (646)

92990-05600-00

$0.80

7

BOLT, WITH WASHER

90119-06242-00

$7.49

8

CONDUCTION ASSEMBLY

2TK-12590-00-00

Unavailable

9

CAP, RADIATOR

4FL-12462-00-00

$62.99

10

BOLT, FLANGE

95817-06010-00

$4.73

11

HOSE CLAMP ASSY

90450-32015-00

$17.99

12

PROTECTOR

3HE-12498-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78

14

WASHER, SPRING

92907-06100-00

$4.25

15

WASHER(6TA)

92907-06600-00

$2.72

16

HOSE (L1500)

90445-090F6-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

18

PLUG(1WG)

90338-20188-00

Unavailable

19

GROMMET(1WG)

90480-15483-00

Unavailable

20

COLLAR(2UJ)

90387-061V1-00

Unavailable

21

BOLT, FLANGE

95817-06025-00

Unavailable

22

HOSE 3

3HE-12578-00-00

Unavailable

23

HOSE 5

3HE-12588-00-00

Unavailable

24

PIPE 4

2TK-12484-00-00

Unavailable

25

SCREW

90153-06029-00

Unavailable

26

GASKET 256113960000

90430-06014-00

Unavailable

27

O-RING

93210-21190-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06142-00

Unavailable

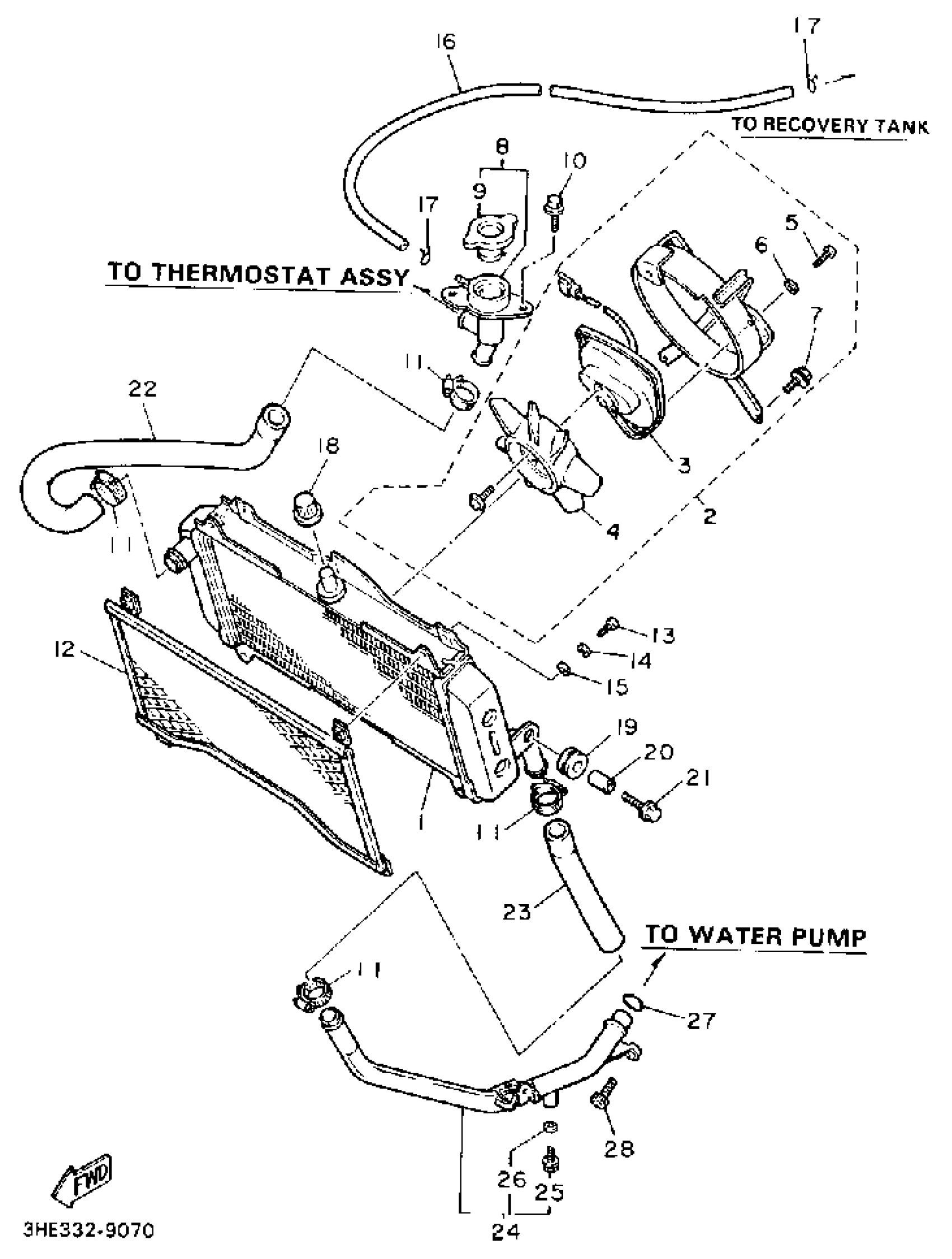

Yamaha FZR600RA (FZR600) 1990 RADIATOR HOSE Diagram

RADIATOR ASSEMBLY

BLOWER ASSEMBLY

MOTOR ASSEMBLY

FAN

SCREW, PAN HEAD(62X)

WASHER, PLAIN (646)

BOLT, WITH WASHER

CONDUCTION ASSEMBLY

CAP, RADIATOR

BOLT, FLANGE

HOSE CLAMP ASSY

PROTECTOR

SCREW, PAN

WASHER, SPRING

WASHER(6TA)

HOSE (L1500)

CLIP 101235600

PLUG(1WG)

GROMMET(1WG)

COLLAR(2UJ)

BOLT, FLANGE

HOSE 3

HOSE 5

PIPE 4

SCREW

GASKET 256113960000

O-RING

BOLT, HEXAGON SOCKET HEAD(1WG)
