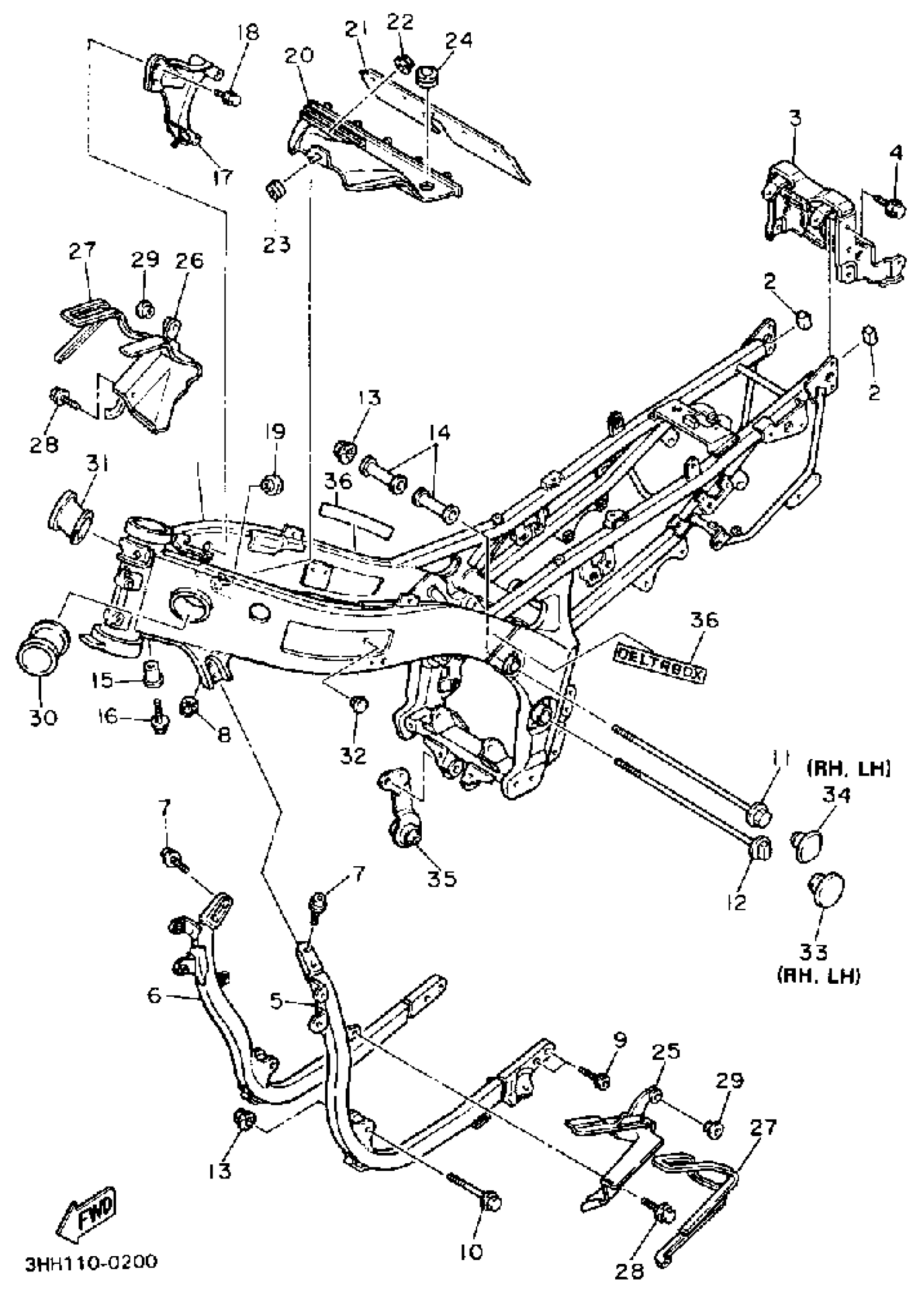

Yamaha FZR600RA (FZR600) 1990 FRAME Diagram
#
1
FRAME
3HW-21110-01-35
Unavailable
3
BRACKET, TAILLIGHT
3HE-2117E-00-00
Unavailable
5
TUBE,DOWN
3HE-21140-00-T9
Unavailable
6
DOWN TUBE COMP.2
3HE-21150-00-T9
Unavailable
11
BOLT,FLANGE
95817-10295-00
Unavailable
14
SPACER
1WG-21459-00-00
Unavailable
15
BRACKET, RADIATOR 3
1WG-2142M-00-00
Unavailable
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
BRACKET
3HE-21238-00-00
Unavailable
18
BOLT, FLANGE
95817-06012-00
Unavailable
19
GROMMET (509)
90480-18171-00
Unavailable
20
GUIDE, AIR
3HE-2137Y-00-00
Unavailable
21
COVER
1WG-2139W-00-00
Unavailable
22
NUT, W/ WASHER
95707-06600-00
Unavailable
23
GROMMET(41Y)
90480-01401-00
Unavailable
24
GROMMET
90480-13014-00
Unavailable
25
SCOOP, AIR 1
3HE-2137W-00-00
Unavailable
26
SCOOP, AIR 2
3HE-2137X-00-00
Unavailable
27
DAMPER 2
3HE-2139U-00-00
Unavailable
28
BOLT, WITH WASHER
90119-06093-00
Unavailable
29
COLLAR (8G8)
90387-06681-00
Unavailable
30
COVER 2
3HE-2117M-00-00
Unavailable
31
COVER 3
3HE-2117N-00-00
Unavailable
32
PLUG(2GH)
90338-15202-00
Unavailable
33
COVER 4
3HE-2117R-00-00
Unavailable
34
COVER 5
3HE-2117T-00-00
Unavailable
35
STAY, MUFFLER 2
3HE-21446-00-00
Unavailable
36
EMBLEM 1
3HE-2118E-00-00
Unavailable
