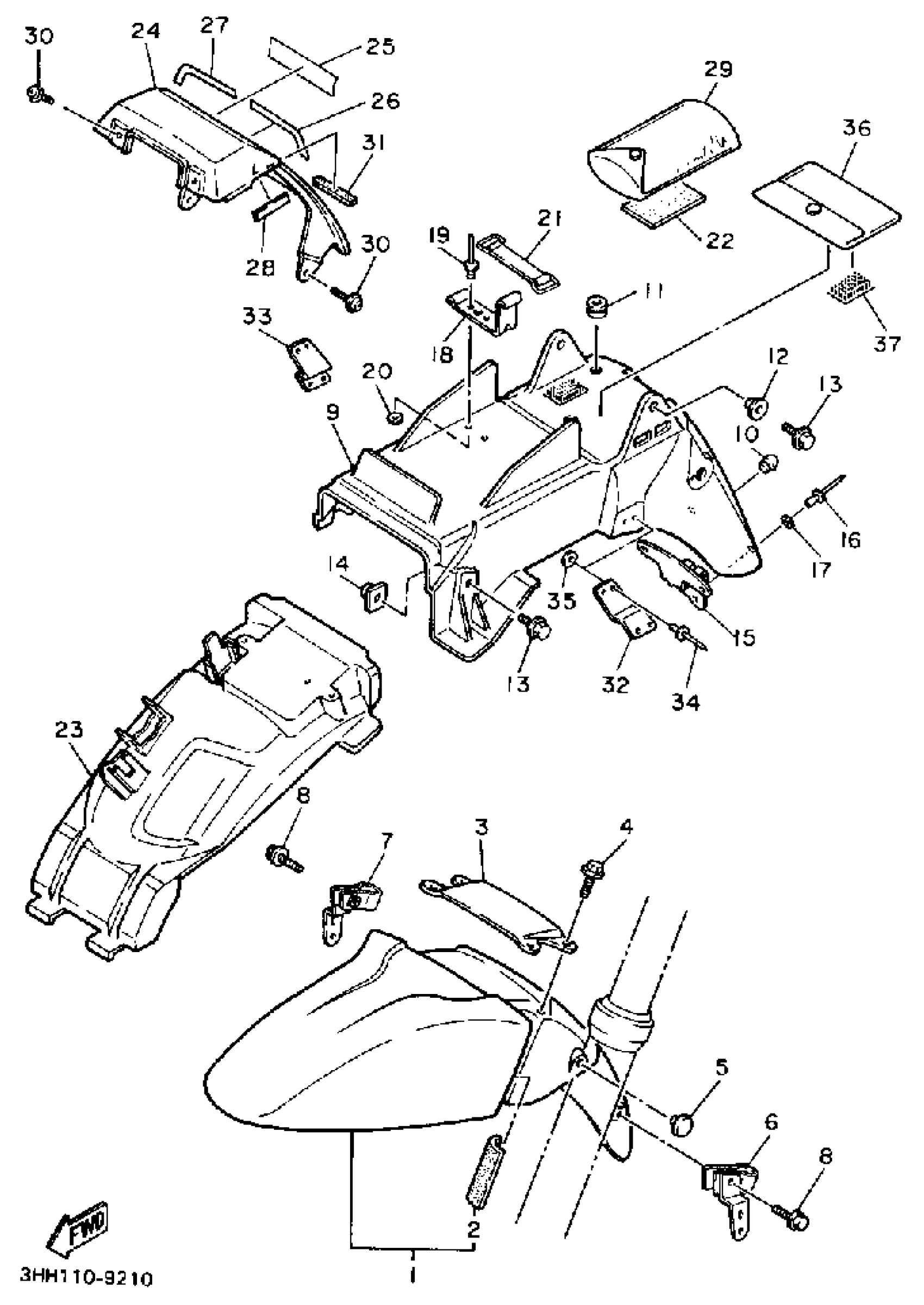

Yamaha FZR600RA (FZR600) 1990 FENDER Diagram
#
1
FENDER, FRONT
3FH-21510-00-0X
Unavailable
1
FENDER,FRONT
3FH-21510-00-4X
Unavailable
2
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
3
BRACE, FORK
46X-2313A-00-00
Unavailable
6
HOLDER,BRKE HOSE 1
3LK-25875-00-00
Unavailable
7
HOLDER,BRKE HOSE 2
4PR-25876-10-00
Unavailable
9
FENDER, REAR
3HE-21611-10-00
Unavailable
10
DAMPER 2
2MG-21639-00-00
Unavailable
11
GROMMET
90480-10258-00
Unavailable
14
PLATE
31A-14477-10-00
Unavailable
15
BRACKET,REFLECT 1
3HE-85132-01-00
Unavailable
16
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
17
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
18
HOOK
25G-28379-00-00
Unavailable
19
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
20
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
21
BAND, BATTERY
26L-82131-00-00
Unavailable
22
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
23
GUARD, MUD
3HE-21629-00-00
Unavailable
24
COVER, REAR FENDER
3HE-21651-00-GE
Unavailable
24
COVER, REAR FENDER
3HE-21651-00-P0
Unavailable
25
EMBLEM, YAMAHA
99246-00100-00
Unavailable
25
EMBLEM, YAMAHA
99246-00100-00
Unavailable
26
SEAL 1
2GH-21575-00-00
Unavailable
27
SEAL 2
2GH-21576-00-00
Unavailable
28
SEAL 2
2GH-21735-00-00
Unavailable
29
TOOL KIT
1WG-W2810-00-00
Unavailable
30
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
31
SEAL 4
J44-78248-00-00
Unavailable
32
BRACKET, REAR STAY
2LJ-21688-00-00
Unavailable
33
BRACKET, REAR STAY 2
2LJ-21689-00-00
Unavailable
34
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
35
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
36
POUCH
4U7-28186-00-00
Unavailable
37
HOOK
4K5-2814E-10-00
Unavailable
