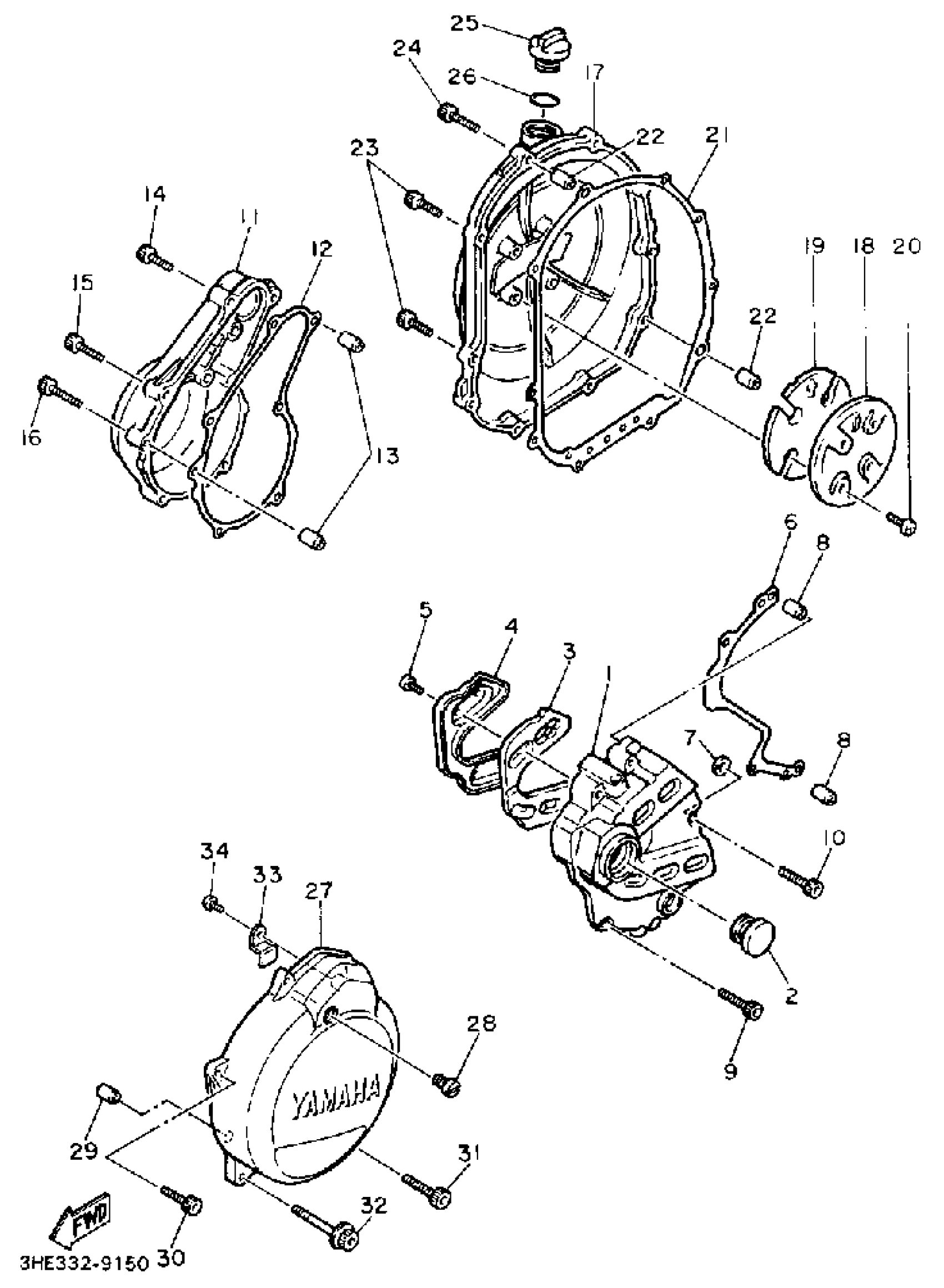

Yamaha FZR600RA (FZR600) 1990 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2TK-15411-00-00

Unavailable

2

COVER, CAP

1L9-15417-00-00

Unavailable

3

DAMPER, ENGINE MOUNT 1

1WG-15316-00-00

Unavailable

4

COVER, CAP 2

1WG-15427-00-00

Unavailable

5

SCREW, BINDING

98907-05008-00

$2.18

6

GASKET, CRANKCASE COVER 1

3HE-15451-10-00

$8.99

7

GASKET

3FA-15467-00-00

$6.99

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

BOLT,SOCKET

91317-06040-00

$3.76

10

BOLT,SOCKET

91317-06050-00

$3.88

11

COVER, CRANKCASE 2

2TK-15421-00-00

Unavailable

12

GASKET, CRANKCASE COVER 2

3HE-15461-10-00

Unavailable

13

PIN, DOWEL(3XW)

91808-16023-00

$8.49

14

BOLT,SOCKET HEAD

91314-06025-00

$8.49

15

BOLT, SOCKET

91314-06035-00

$8.49

16

BOLT, SOCKET

91314-06045-00

Unavailable

17

COVER, CRANKCASE 3

2TK-15431-01-00

Unavailable

18

COVER, GENERATOR 2

1WG-15425-00-00

Unavailable

19

DAMPER, ENGINE MOUNT 2

1WG-15326-00-00

Unavailable

20

SCREW, BINDING

98907-05008-00

$2.18

21

GASKET, CRANKCASE COVER 3

3HE-15462-10-00

Unavailable

22

PIN, DOWEL(3XW)

91808-16023-00

$8.49

23

BOLT,SOCKET HEAD

91314-06025-00

$8.49

24

BOLT, SOCKET

91314-06035-00

$8.49

25

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

26

O-RING(1KT)

93210-27778-00

Unavailable

27

COVER, GENERATOR

3HE-15415-01-00

Unavailable

28

PLUG, STRAIGHT SCREW

90340-08002-00

Unavailable

29

PIN, DOWEL(3XW)

91808-16023-00

$8.49

30

BOLT,SOCKET HEAD

91314-06025-00

$8.49

31

BOLT, SOCKET

91314-06035-00

$8.49

32

BOLT, FLANGE (3HE)

90109-063F9-00

Unavailable

33

CLAMP(3KM)

90462-10182-00

Unavailable

34

SCREW PAN HEAD

98580-06010-00

Unavailable
