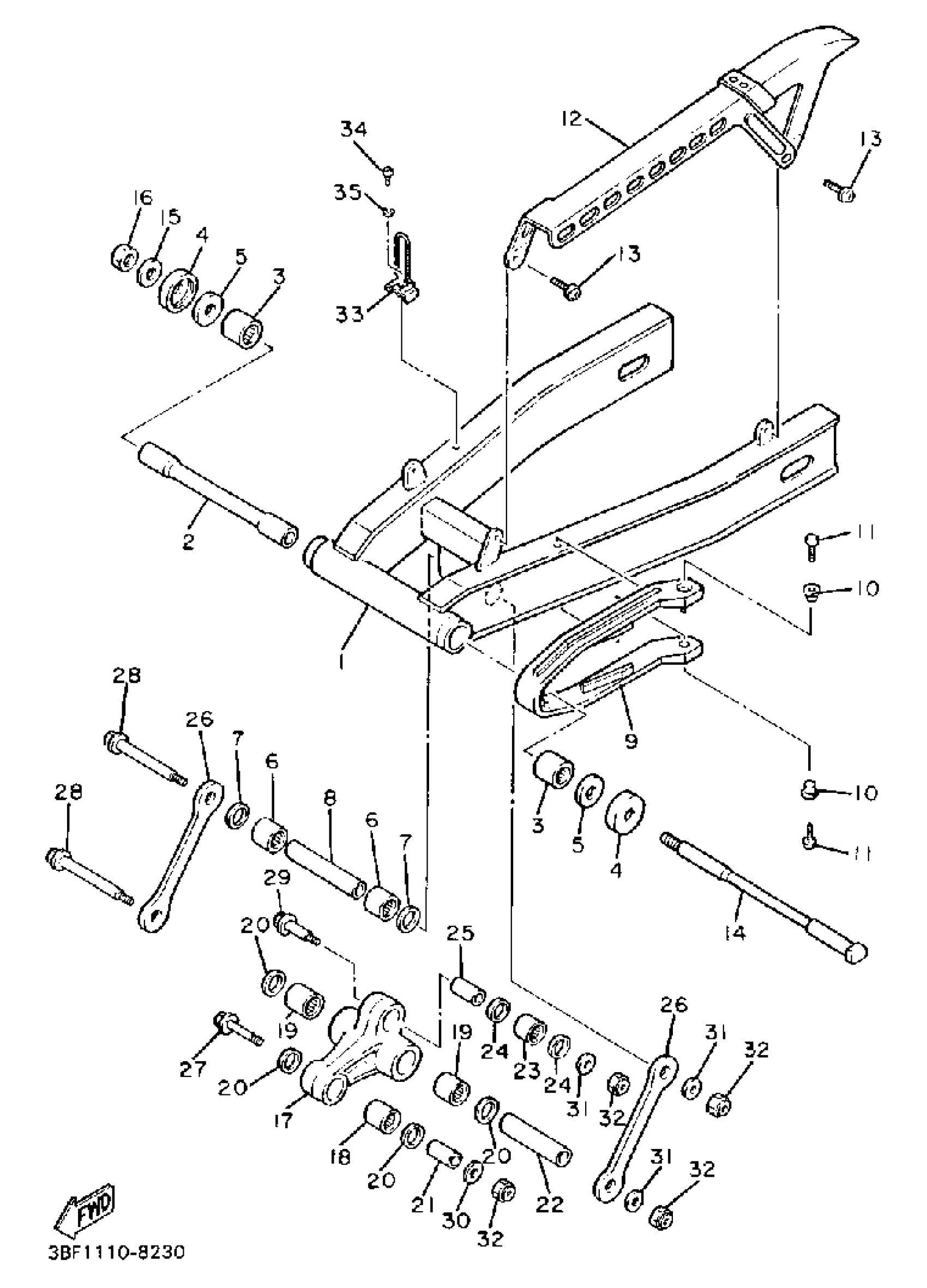

Yamaha FZR400W (FZR400) 1989 SWING ARM Diagram

#

Description
Price

1

REAR ARM

3FH-22110-00-00

Unavailable

2

BUSH

33M-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$46.99

4

COVER, THRUST 2

47X-22129-00-00

$10.99

5

WASHER, PLATE(47X)

90201-161J2-00

Unavailable

6

BEARING, CYLINDRICAL(39K)

93317-21746-00

$34.99

7

OIL SEAL(38V)

93109-17048-00

$5.60

8

COLLAR(1WG)

90387-122R5-00

$20.99

9

SEAL, GUARD

1WG-22151-00-00

Unavailable

10

COLLAR (8G8)

90387-06681-00

$9.49

11

SCREW 256241430000

90149-06011-00

$5.60

12

CHAIN CASE ASSEMBLY

1WG-22310-00-00

Unavailable

13

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

14

SHAFT, PIVOT

46X-22141-00-00

Unavailable

15

WASHER PLATE (3L6)

90201-14740-00

$8.49

16

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

17

ARM, RELAY

(1WG-2217A-00-00)

Unavailable

18

BRG,CYL-CAL ROLLER 20G NT

93317-31701-00

Unavailable

19

BEARING, CYLINDRICAL(39K)

93317-21746-00

$34.99

20

OIL SEAL(38V)

93109-17048-00

$5.60

21

COLLAR(1WG)

90387-102R4-00

Unavailable

22

COLLAR(1WG)

90387-122R5-00

$20.99

23

BEARING(47X)

93399-99919-00

Unavailable

24

OIL SEAL(47X)

93101-16131-00

Unavailable

25

COLLAR

90387-124L0-00

Unavailable

26

ARM 1

1WG-2217M-00-00

Unavailable

27

BOLT, WASHER BASED(1FK)

90105-10376-00

Unavailable

28

BOLT(1WG)

90101-10658-00

Unavailable

29

BOLT(1WG)

90101-10659-00

Unavailable

30

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

31

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

32

NUT, U

95614-10100-00

Unavailable

33

HOLDER,BRKE HOSE 1

2GH-25875-50-00

Unavailable

34

SCREW PAN HEAD

98580-06020-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable
