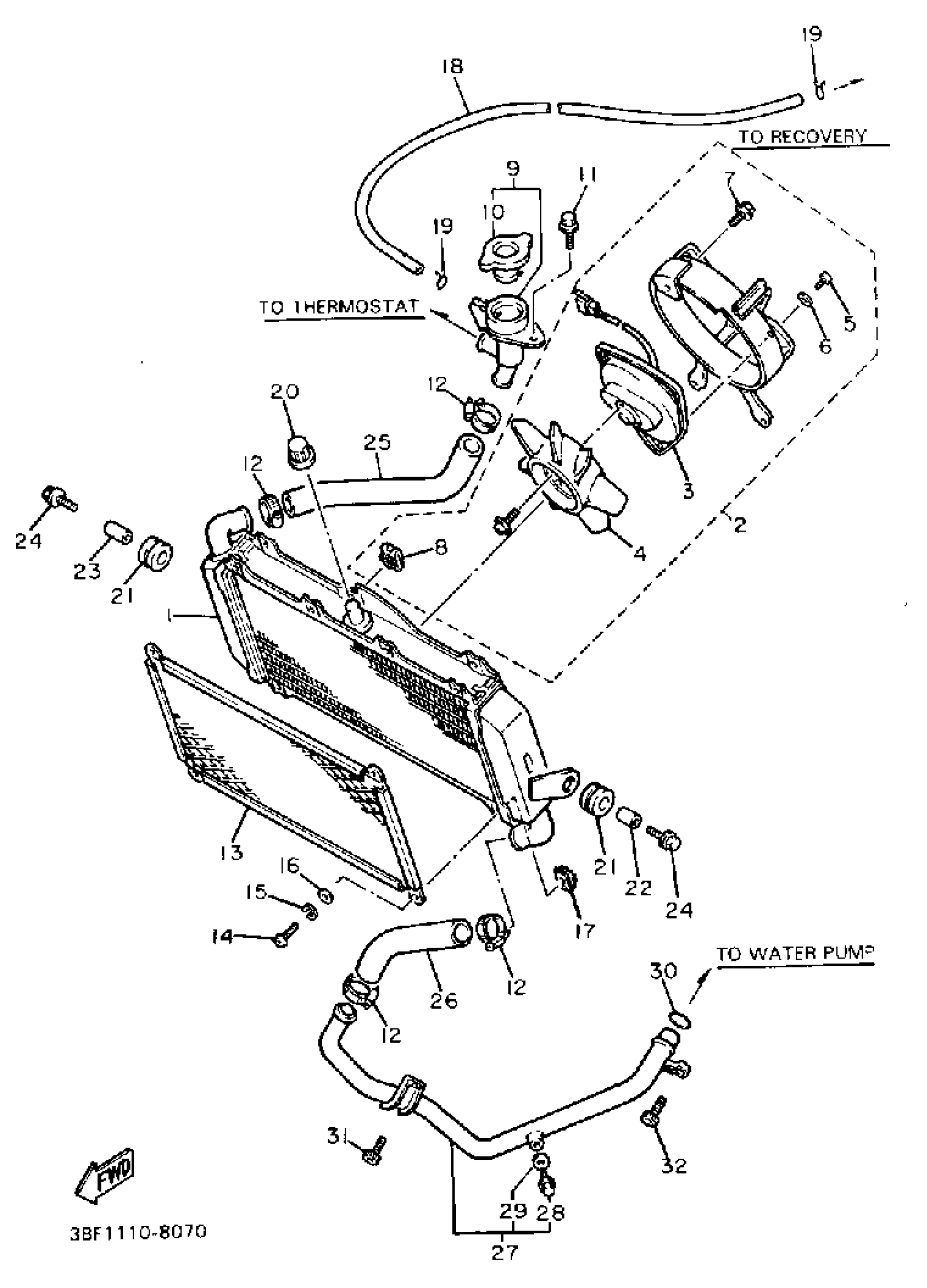

Yamaha FZR400W (FZR400) 1989 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

1WG-12461-00-00

Unavailable

2

BLOWER ASSEMBLY

1WG-12405-00-00

Unavailable

3

MOTOR ASSEMBLY

1AA-12630-00-00

Unavailable

4

FAN

1UF-12611-00-00

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

WASHER, PLAIN (646)

92990-05600-00

$0.80

7

BOLT, WITH WASHER

90119-06242-00

$7.49

8

PLATE

1AA-12535-00-00

$14.49

9

CONDUCTION ASSEMBLY

2TK-12590-00-00

Unavailable

10

CAP, RADIATOR

4FL-12462-00-00

$62.99

11

BOLT, FLANGE

95817-06016-00

$2.75

12

HOSE CLAMP ASSY

90450-32015-00

$17.99

13

PROTECTOR

46X-12498-00-00

Unavailable

14

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

15

WASHER(3SX)

92907-05100-00

$8.49

16

WASHER(1RW)

92907-05600-00

Unavailable

17

NUT, SPRING

90183-051A0-00

Unavailable

18

HOSE (L1500)

90445-090F6-00

Unavailable

19

CLIP 101235600

90467-08003-00

Unavailable

20

PLUG(1WG)

90338-20188-00

Unavailable

21

GROMMET(1WG)

90480-15483-00

Unavailable

22

COLLAR

90387-07020-00

Unavailable

23

COLLAR(2UJ)

90387-061V1-00

Unavailable

24

BOLT, FLANGE

95817-06025-00

Unavailable

25

HOSE 3

1WG-12578-00-00

Unavailable

26

HOSE 5

1WG-12588-00-00

Unavailable

27

PIPE 4

1WG-12484-00-00

Unavailable

28

SCREW

90153-06029-00

Unavailable

29

GASKET 256113960000

90430-06014-00

Unavailable

30

O-RING

93210-21190-00

Unavailable

31

BOLT,SOCKET

91317-06012-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06142-00

Unavailable
