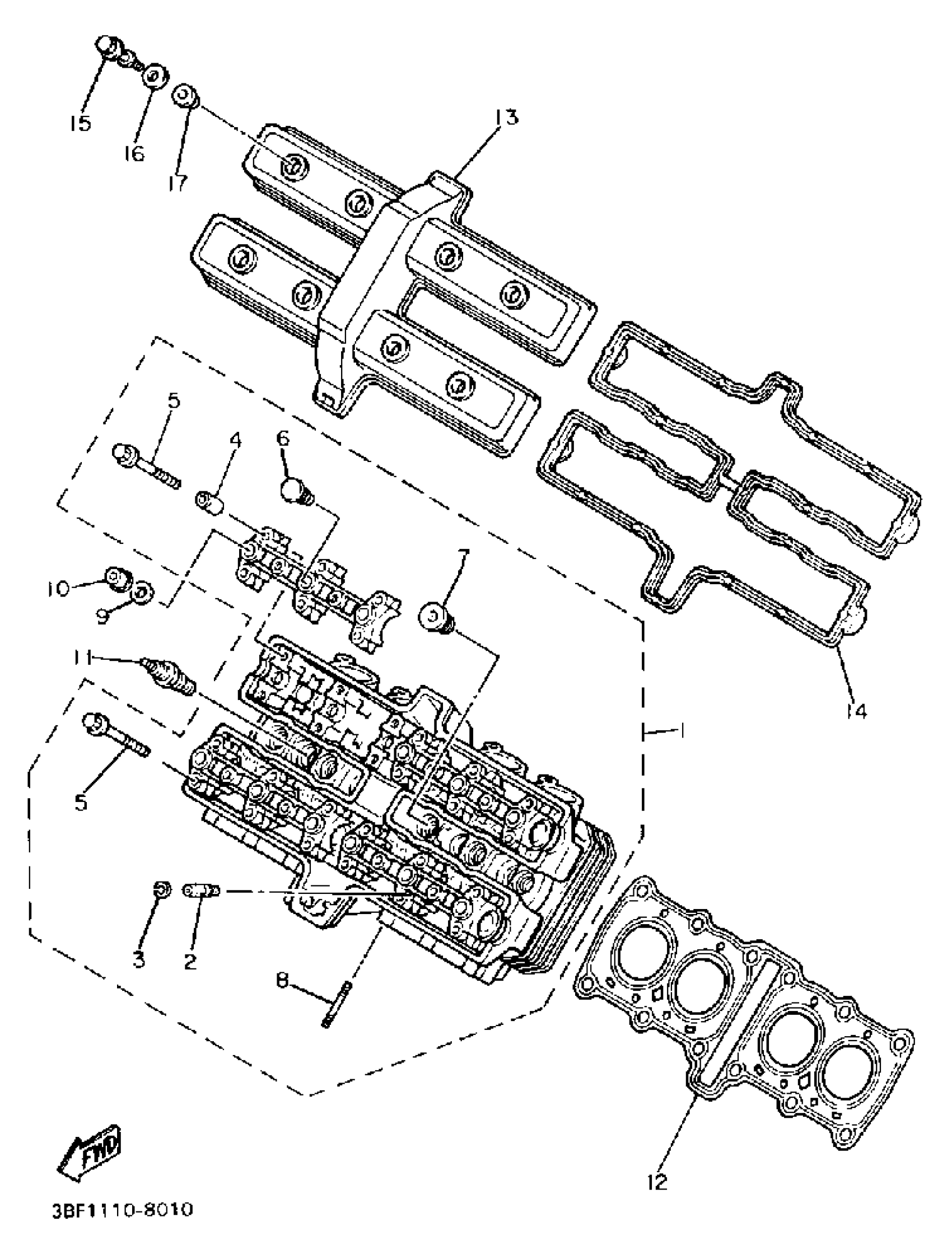

Yamaha FZR400W (FZR400) 1989 CYLINDER HEAD Diagram

CYLINDER HEAD ASSEMBLY

1WG-11101-00-00

Unavailable

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

CIRCLIP(1WG)

93440-10153-00

$2.39

PIN, DOWEL(3XW)

91808-16023-00

$8.49

. BOLT, FLANGE

90105-06026-00

Unavailable

PLUG (1HX)

90338-08174-00

$8.49

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

BOLT, STUD(1FW)

90116-06466-00

$4.51

WASHER, PLATE(3LN)

90201-086M0-00

$8.49

NUT

90179-08530-00

Unavailable

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

3TJ-11181-00-00

Unavailable

COVER, CYLINDER.HEAD 1

1WG-11191-00-00

Unavailable

GASKET, HEAD COVER 1

1WG-11193-01-00

$41.99

BOLT(3TJ)

90109-064F0-00

Unavailable

WASHER(46X)

90209-11262-00

Unavailable

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable
