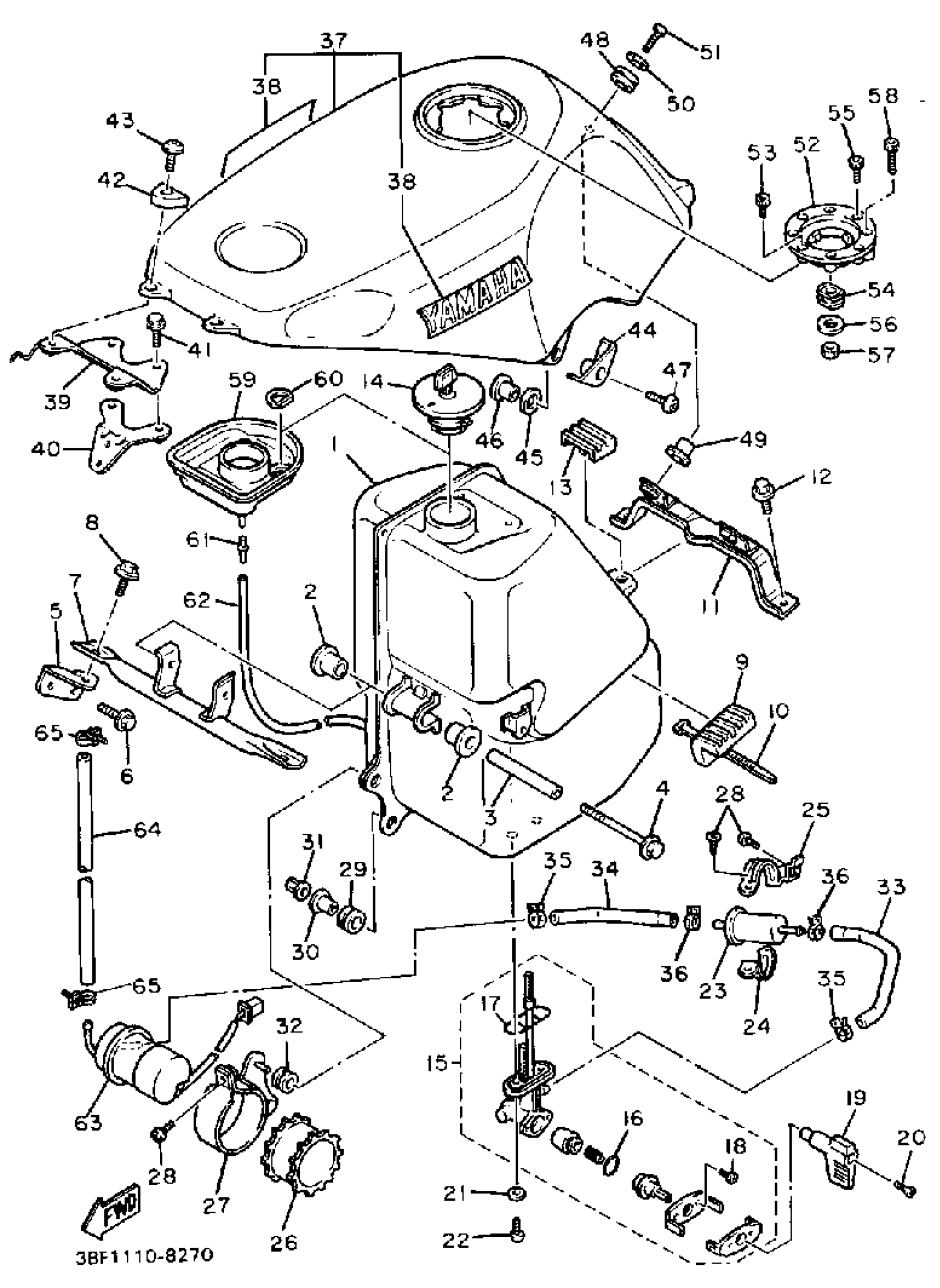

Yamaha FZR400U (FZR400) 1988 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

1WG-24110-01-00

Unavailable

2

DAMPER, LOCATING 1

1HX-24181-00-00

Unavailable

3

COLLAR

90387-06380-00

Unavailable

4

BOLT, FLANGE

95817-06080-00

$4.72

5

BRACKET, TANK FTNG

(1WG-21346-00-00)

Unavailable

6

BOLT, FLANGE

95817-06016-00

$2.75

7

BRACKET, TANK FITTING

1WG-21345-00-00

Unavailable

8

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

9

DAMPER, LOCATING 2

1HX-24182-00-00

Unavailable

10

BAND

1UA-82591-00-00

$4.78

11

BRACKET, TANK FITTING

1WG-21348-00-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

DAMPER, LOCATING 5

1WG-24185-00-00

Unavailable

14

CAP ASSEMBLY

1WG-24602-00-00

Unavailable

15

FUEL COCK ASSEMBLY 1

1WG-24500-00-00

Unavailable

16

O-RING

4X8-24534-00-00

Unavailable

17

O-RING

4X8-24512-00-00

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

LEVER, COCK

1WG-24524-00-00

Unavailable

20

SCREW, FLAT

98707-04016-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

FILTER ASSY

1FK-24560-10-00

Unavailable

24

BAND, FILTER

26H-24568-00-00

Unavailable

25

BRACKET, FILTER

1WG-24566-00-00

Unavailable

26

BAND 1

1WG-24398-01-00

Unavailable

27

BRACKET,FUEL PUMP

3HE-24491-00-00

Unavailable

28

SCREW, BINDING

98907-05014-00

Unavailable

29

GROMET (3X3)

90480-14229-00

Unavailable

30

COLLAR 437216330000

90387-07391-00

Unavailable

31

NUT (1AE)

90179-06500-00

Unavailable

32

GROMMET(1WG)

90480-11454-00

Unavailable

33

PIPE, FUEL 1

1WG-24311-00-00

Unavailable

34

PIPE 2

1WG-24312-00-00

Unavailable

35

CLIP(42X)

90467-10091-00

Unavailable

36

CLIP (7K7)

90467-11044-00

Unavailable

37

COVER, TOP

1WG-W217A-00-0X

Unavailable

38

EMBLEM, YAMAHA(3XV)

99224-00160-00

Unavailable

39

STAY

3FH-24364-00-00

Unavailable

40

STAY, FUEL TANK 2

3BF-24158-00-00

Unavailable

41

BOLT, FLANGE

95817-06012-00

Unavailable

42

DAMPER, LOCATING 3

1WG-24183-00-00

Unavailable

43

SCREW, BINDING

90154-06040-00

Unavailable

44

DAMPER, LOCATING 4

1WG-24184-00-00

Unavailable

45

TRIM, COVER PANEL

1WG-2414H-00-00

Unavailable

46

COLLAR

90387-112R6-00

Unavailable

47

SCREW, SPECL SHAPE

90149-06246-00

Unavailable

48

GROMMET(3AK)

90480-18495-00

Unavailable

49

COLLAR

90387-112R6-00

Unavailable

50

WASHER, PLATE (J10)

90201-06697-00

Unavailable

51

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

52

PLATE, CAP

1WG-24614-00-00

Unavailable

53

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06134-00

Unavailable

54

DAMPER

1WG-24665-00-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD

90110-06133-00

Unavailable

56

WASHER, PLATE

90201-06380-00

Unavailable

57

NUT, HEXAGON

95380-06600-00

Unavailable

58

BOLT, HEX SKT HEADSOCKET HEAD

90110-06132-00

Unavailable

59

COVER, FILLER

1WG-2414A-00-00

Unavailable

60

WASHER, RING

1WG-24622-00-00

Unavailable

61

SPACER

90560-03220-00

Unavailable

62

HOSE (L1050)

90445-072G8-00

Unavailable

63

FUEL PUMP COMP.

1WG-13907-00-00

Unavailable

64

HOSE (L300)

90445-126E7-00

Unavailable

65

HOSE CLAMP ASSY

90450-12002-00

Unavailable
