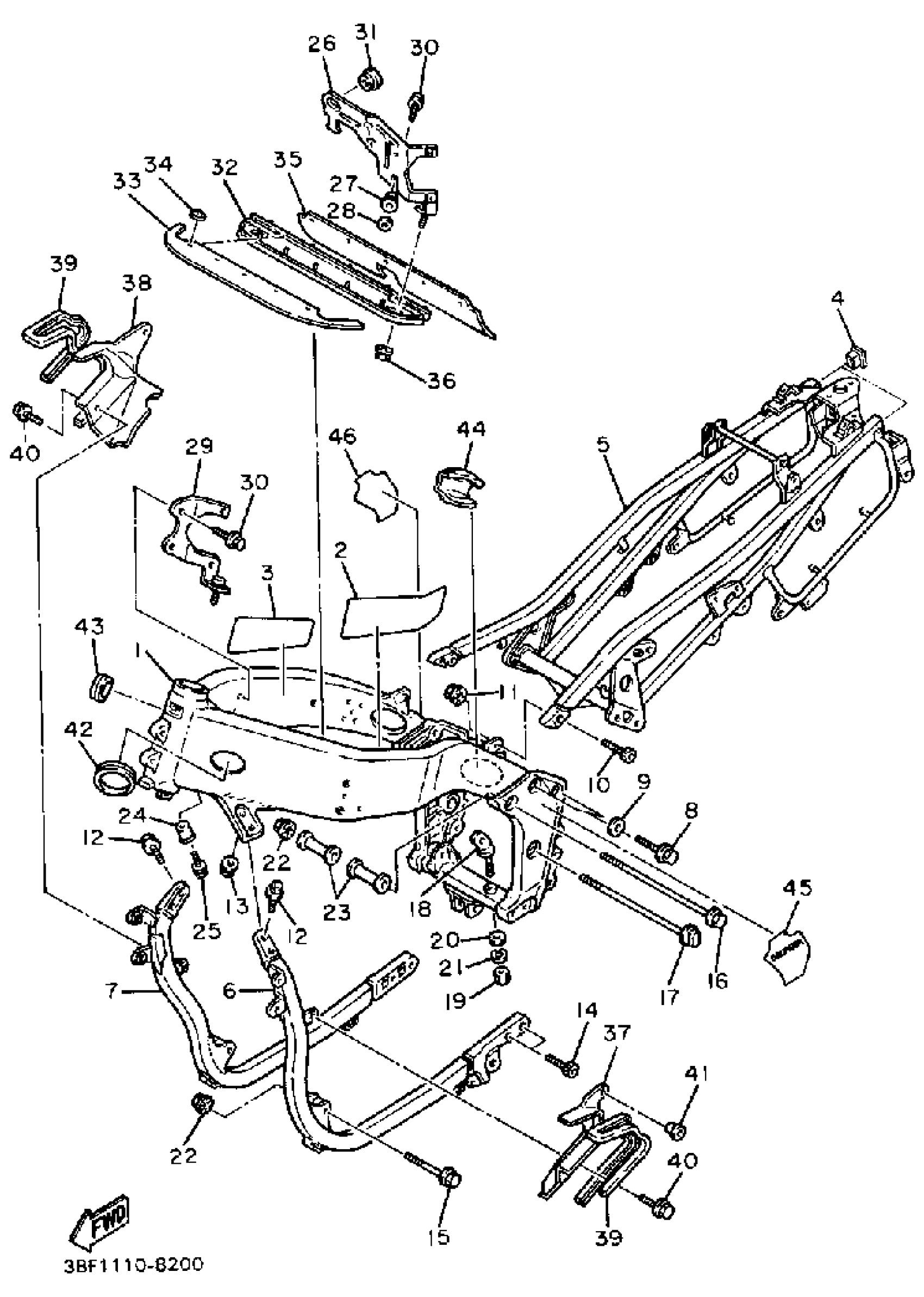

Yamaha FZR400U (FZR400) 1988 FRAME Diagram

FRAME

3FH-21110-00-00

Unavailable

SHEET 3

1WG-21277-00-00

Unavailable

SEAL

1WG-21268-00-00

Unavailable

CAP

1WG-2143A-00-00

$7.99

FRAME, REAR

1WG-21190-00-35

Unavailable

TUBE, DOWN

3FH-21140-00-35

Unavailable

DOWN TUBE COMP.2

1WG-21150-00-35

Unavailable

BOLT, FLANGE(JN5)

95817-12030-00

$8.99

WASHER, PLATE(51Y)

90201-120K4-00

$9.49

BOLT, SOCKET

91317-10030-00

$9.49

NUT, FLANGE(3BM)

95704-10500-00

$4.29

BOLT, FLANGE

95814-10040-00

$4.72

NUT, FLANGE(3BM)

95704-10500-00

$4.29

BOLT,SOCKET

91314-08025-00

$8.49

BOLT, FLANGE

95817-10080-00

$5.60

BOLT,FLANGE

95817-10295-00

Unavailable

BOLT,FLANGE

95817-10165-00

Unavailable

BRACKET, REAR LWR 1

1WG-21427-00-00

Unavailable

NUT(3DM)

95304-12600-00

Unavailable

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT, FLANGE(3BM)

95704-10500-00

$4.29

SPACER

1WG-21459-00-00

Unavailable

BRACKET, RADIATOR 3

1WG-2142M-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

BRACKET, AIR CLEANR

1WG-21147-00-00

Unavailable

C0LLAR

90387-062M9-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable

BRACKET, AIR CLEANR

1WG-21148-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

GROMMET (509)

90480-18171-00

Unavailable

GUIDE, AIR

1WG-2137Y-00-00

Unavailable

COVER 2

1WG-2139R-00-00

Unavailable

NUT 6504269100

90183-05003-00

Unavailable

COVER

1WG-2139W-00-00

Unavailable

NUT, W/ WASHER

95707-06600-00

Unavailable

SCOOP, AIR 1

1WG-2137W-00-00

Unavailable

SCOOP, AIR 2

1WG-2137X-00-00

Unavailable

DAMPER 2

1WG-2139U-00-00

Unavailable

BOLT, WITH WASHER

90119-06093-00

Unavailable

COLLAR (8G8)

90387-06681-00

Unavailable

COVER 2

1WG-2117M-00-00

Unavailable

COVER 3

1WG-2117N-00-00

Unavailable

COVER 6

1WG-2117U-00-00

Unavailable

EMBLEM 3

1WG-2119G-00-00

Unavailable

EMBLEM 4

1WG-2119H-00-00

Unavailable
