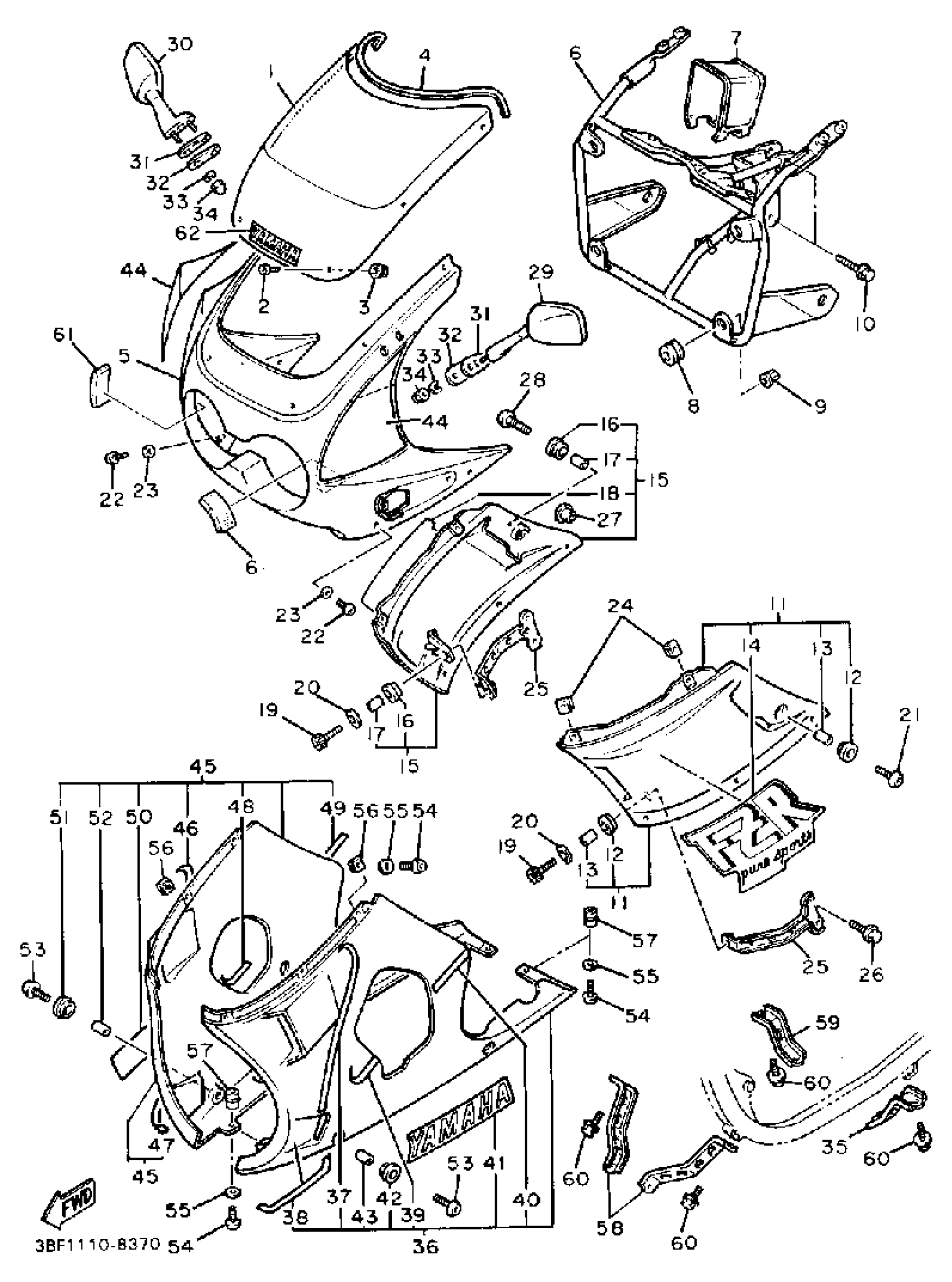

Yamaha FZR400U (FZR400) 1988 FAIRING COWLING Diagram

#

Description
Price

1

WINDSHIELD

2AX-28381-00-00

Unavailable

2

SCREW, ROUND HEAD(46X)

90150-05020-00

$9.49

3

NUT, FLANGE(3GM)

95707-05500-00

$8.49

4

TRIM

52E-28376-00-00

Unavailable

5

BODY, FRONT UPPER 1

3FH-2835G-00-GE

Unavailable

6

STAY 1

3FH-28356-00-00

Unavailable

7

COVER

1WG-28365-00-00

Unavailable

8

GROMET (3X3)

90480-14229-00

$8.49

9

NUT (1AE)

90179-06500-00

$7.49

10

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

11

PANEL ASSEMBLY 1

1WG-Y283U-00-GE

Unavailable

12

GROMMET

90480-13014-00

$8.49

13

COLLAR(51L)

90387-067K6-00

$10.49

14

. EMBLEM

1WG-28328-00-00

Unavailable

15

PANEL ASSEMBLY 2

1WG-Y283V-00-GE

Unavailable

16

GROMMET

90480-13014-00

$8.49

17

COLLAR(51L)

90387-067K6-00

$10.49

18

. EMBLEM

1WG-28338-00-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

23

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

24

NUT, SPRING

90183-051A0-00

Unavailable

25

STAY, SIDE 1

1WG-2831U-00-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

COLLAR 437216330000

90387-07391-00

Unavailable

28

BOLT, HEX SKT HEADSOCKET HEAD

90110-06135-00

Unavailable

29

MIRROR ASSEMBLY (WHITE)ASSEMBLY (L)

1KT-26280-00-00

Unavailable

30

MIRROR ASSEMBLY (WHITE)ASSEMBLY (R)

1KT-26290-00-00

Unavailable

31

DAMPER

1KT-28371-00-00

Unavailable

32

DAMPER

1KT-28372-00-00

Unavailable

33

WASHER, SPRING

92907-06100-00

Unavailable

34

NUT(4MY)

95307-06800-00

Unavailable

35

BRACKET 2

3FH-2836E-00-00

Unavailable

36

BODY, FRONT LOWER 1

1WG-Y283J-30-0X

Unavailable

37

. GRAPHIC 3

1WG-28393-00-00

Unavailable

38

. GRAPHIC 5

1WG-28398-00-00

Unavailable

39

. GRAPHIC 7

1WG-2839A-00-00

Unavailable

40

. GRAPHIC 9

1WG-2839F-00-00

Unavailable

41

EMBLEM, YAMAHA

99244-00280-00

Unavailable

42

GROMMET

90480-13014-00

$8.49

43

COLLAR(51L)

90387-067K6-00

$10.49

44

GRPHC SET, COWLING

1WG-28390-00-00

Unavailable

45

BODY, FRONT LOWER 2

1WG-Y283K-30-0X

Unavailable

46

. GRAPHIC 4

1WG-28394-00-00

Unavailable

47

. GRAPHIC 6

1WG-28399-00-00

Unavailable

48

. GRAPHIC 8

1WG-2839E-00-00

Unavailable

49

. GRAPHIC 10

1WG-2839G-00-00

Unavailable

50

EMBLEM, YAMAHA

99244-00280-00

Unavailable

51

GROMMET

90480-13014-00

$8.49

52

COLLAR(51L)

90387-067K6-00

$10.49

53

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

54

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

55

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

56

NUT, SPRING

90183-051A0-00

Unavailable

57

NUT(1KT)

90179-05523-00

Unavailable

58

BRACKET 1

1WG-2836A-00-00

Unavailable

59

BRACKET 2

1WG-2836E-00-00

Unavailable

60

BOLT, FLANGE

95817-06010-00

Unavailable

61

DAMPER 2

8K4-77374-00-00

Unavailable

62

EMBLEM, YAMAHA

99241-00100-00

Unavailable
