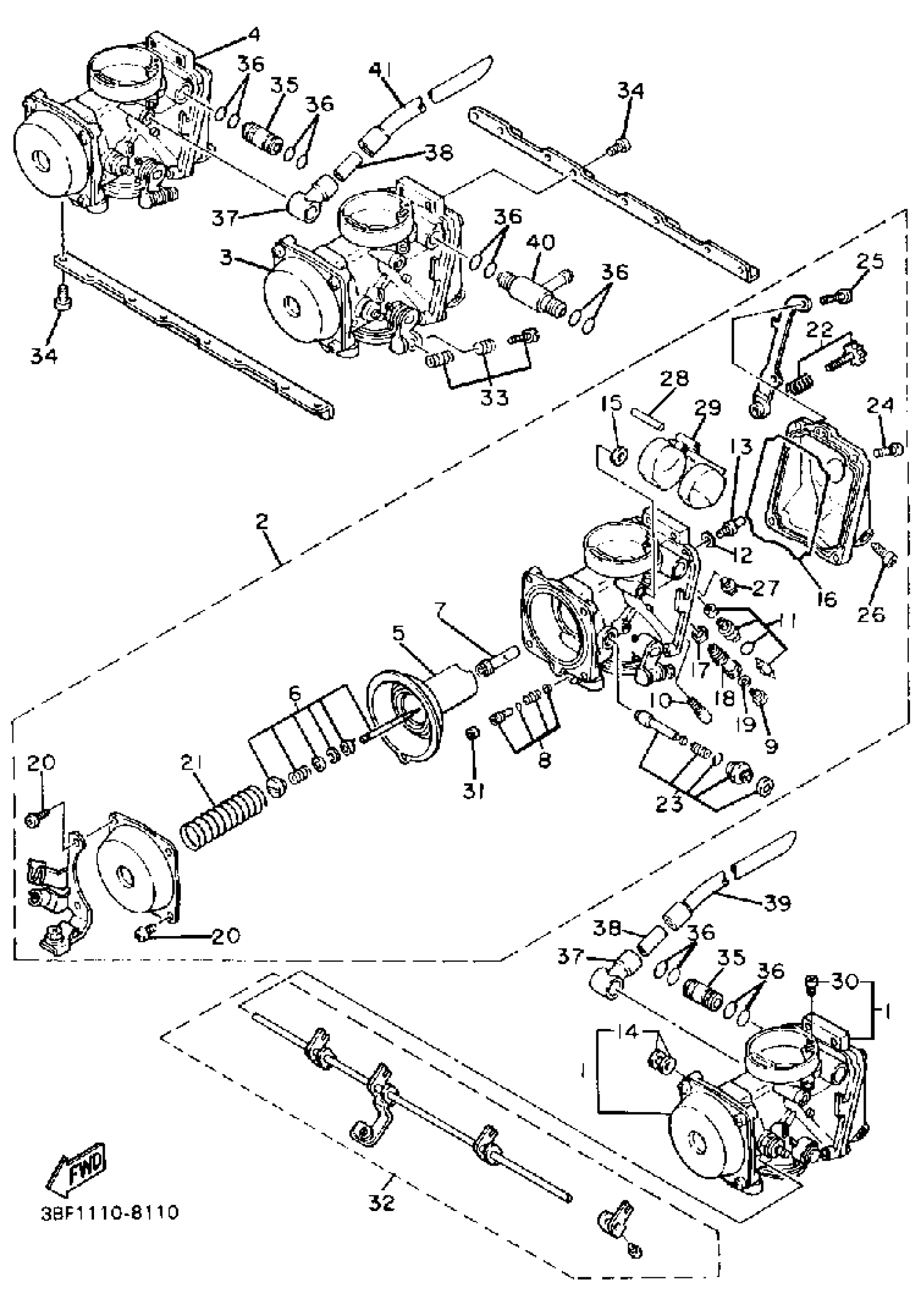

Yamaha FZR400U (FZR400) 1988 CARBURETOR Diagram

CARBURETOR ASSEMBLY 1

3FH-14901-00-00

Unavailable

CARBURETOR ASSY 2

3FH-14902-00-00

Unavailable

CARBURETOR ASSEMBLY 3

3BF-14903-00-00

Unavailable

CARBURETOR ASSY 4

3FH-14904-00-00

Unavailable

. DIAPHRAGM ASSEMBLY

1WG-14940-00-00

Unavailable

. NEEDLE SET

3BF-1490J-00-00

Unavailable

. NOZZLE, MAIN

1WG-14141-90-00

Unavailable

PILOT SCREW SET

12R-14105-00-00

$17.49

. JET, MAIN (#875)

620-1423A-68-00

Unavailable

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable

NEEDLE VALVE SET

3CF-14107-12-00

$68.99

WASHER,MAIN JET

137-14153-00-00

$7.99

SCREW

1AE-14565-00-00

$30.99

.. SEAL

256-14997-00-00

Unavailable

WASHER (3H1)

1A8-14953-00-00

$6.99

O-RING

1WG-14147-00-00

Unavailable

GASKET

1AE-14237-00-00

Unavailable

HOLDER

1AE-14261-00-00

Unavailable

O-RING

1AE-14227-00-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

.. SPRING, DIAPHRAGM

3H5-14933-00-00

Unavailable

THROTTLE SCREW SET

(3BF-14103-00-00)

Unavailable

. STARTER SET

1HX-1410A-00-00

Unavailable

SCREW, PAN HEAD

98511-04012-00

Unavailable

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

PLUG, DRAIN

12R-14191-00-00

Unavailable

SCREW

1FN-14565-00-00

Unavailable

PIN, FLOAT

353-14186-00-00

Unavailable

.. FLOAT

1WG-14985-00-00

Unavailable

.. JET, PILOT AIR #130

830-14231-26-00

Unavailable

CAP

3F9-14118-00-00

Unavailable

STARTER LEVR SET, 1

1WG-1490L-00-00

Unavailable

STOP SCREW SET

1WG-1490K-10-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

NIPPLE

1WG-14251-00-00

Unavailable

O-RING

36Y-14147-00-00

Unavailable

. PIPE

1AE-14197-00-00

Unavailable

. RING

1FN-14918-00-00

Unavailable

HOSE

50H-14987-00-00

Unavailable

. NIPPLE

1HX-14251-00-00

Unavailable

PIPE

1HX-14148-00-00

Unavailable
