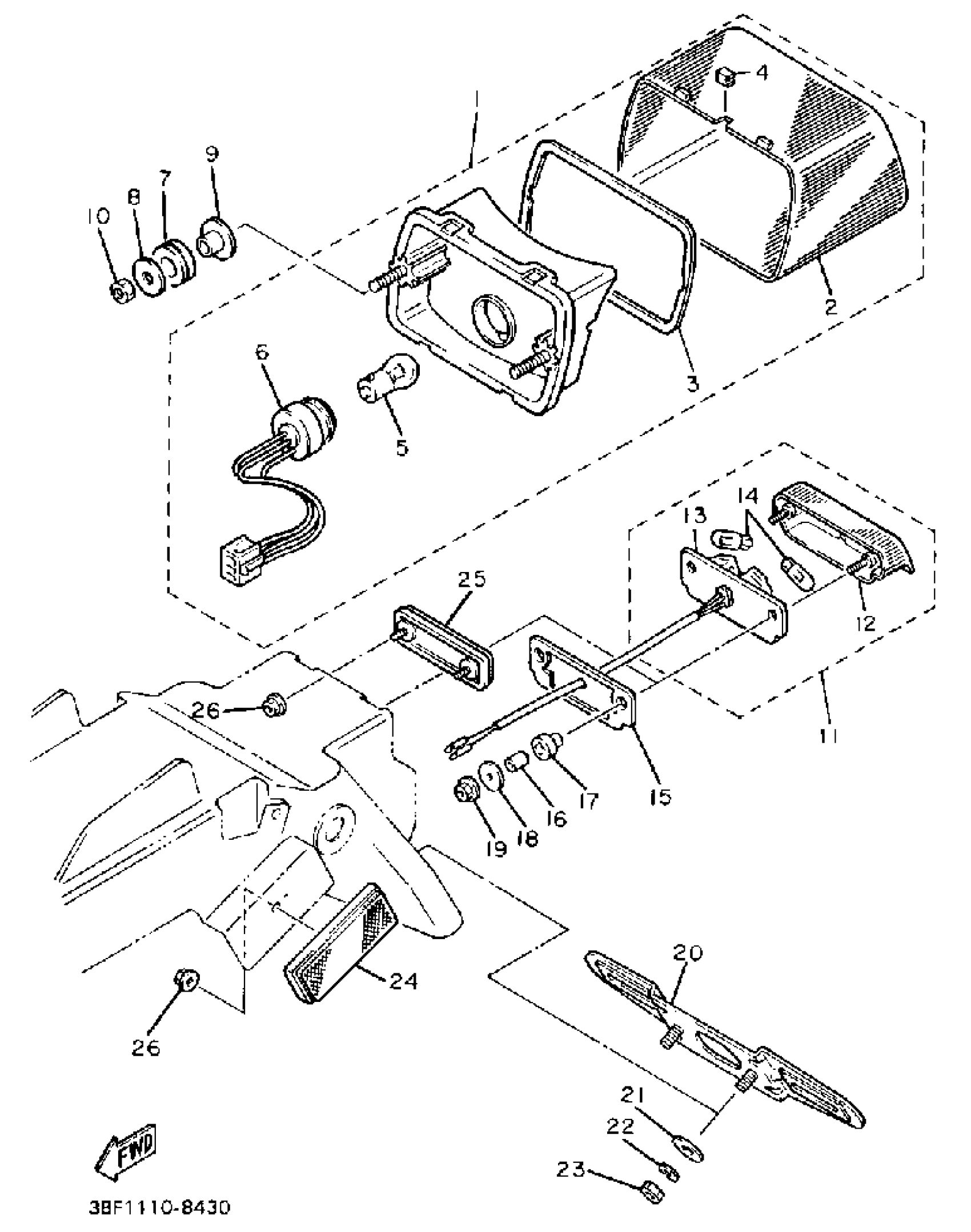

Yamaha FZR400SWC (FZR400 CA) 1989 TAILLIGHT Diagram
#
Description
Price
1
TAILLIGHT UNIT ASSEMBLY
1UJ-84710-A0-00
Unavailable
2
. LENS, TAILLIGHT
1FN-84721-E0-00
Unavailable
3
GASKET, TAIL LENS
47X-84723-00-00
Unavailable
4
. GROMMET
1A2-84718-40-00
Unavailable
6
. CORD ASSEMBLY
1UJ-84735-A0-00
Unavailable
10
NUT, HEXAGON
95380-06600-00
Unavailable
11
LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)
2AX-84745-00-00
Unavailable
12
. BODY, LICENSE LIGHT
2AX-84749-00-00
Unavailable
13
. BASE, LICENSE LIGHT
2AX-84741-00-00
Unavailable
14
. BULB, METER 12V 38W
3F9-84744-00-XX
Unavailable
16
COLLAR(53Y)
90387-066H9-00
Unavailable
17
DAMPER
3F9-84553-00-00
Unavailable
18
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
19
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
20
BRACKET, LICENSE
99999-02351-00
Unavailable
21
WASHER, PLATE
90201-06380-00
Unavailable
22
WASHER, SPRING
92907-06100-00
Unavailable
23
NUT(JN5)
95317-06700-00
Unavailable
24
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
25
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
26
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
