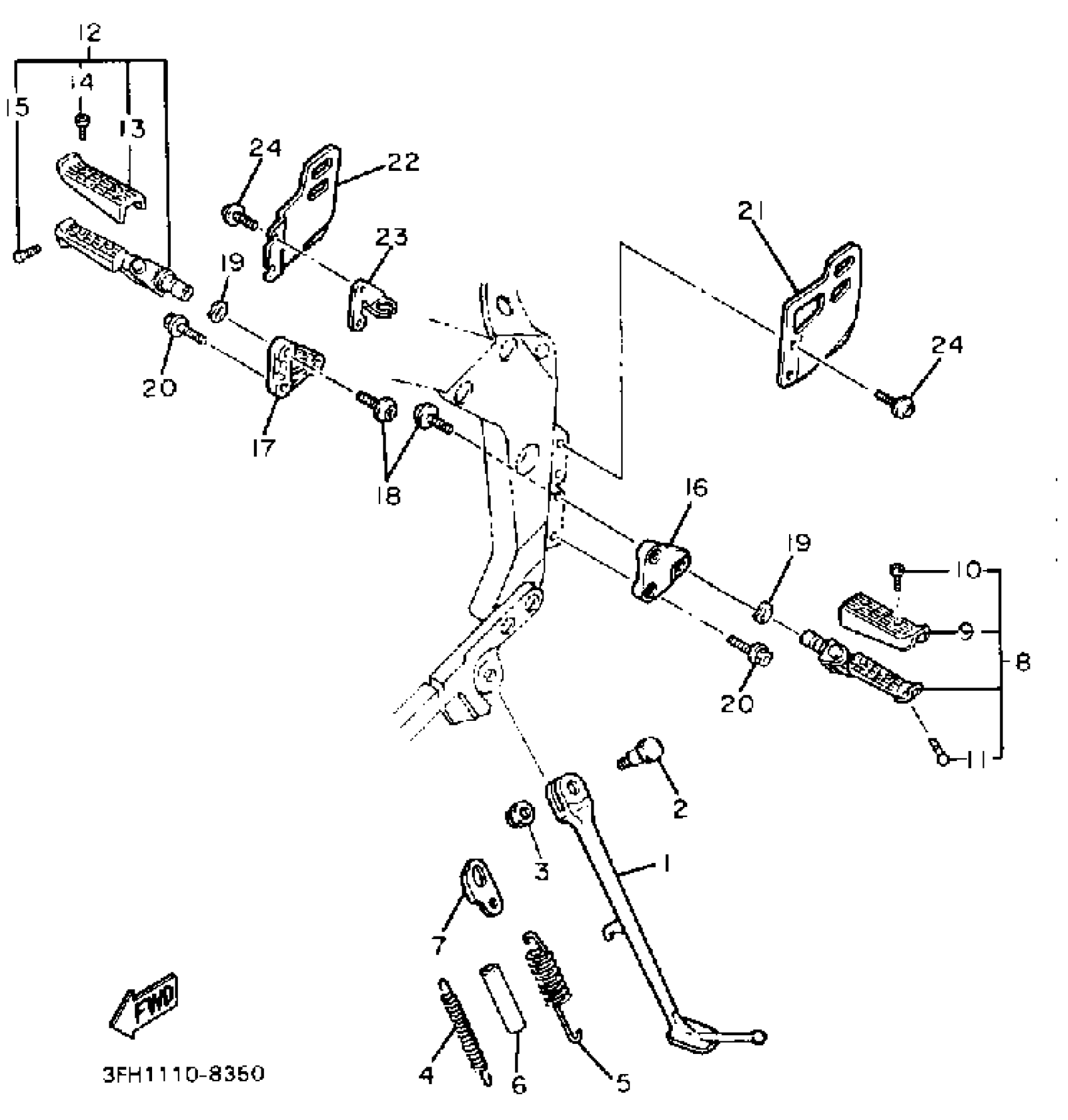

Yamaha FZR400SWC (FZR400 CA) 1989 STAND FOOTREST Diagram

#

Description
Price

1

STAND,SIDE

4BP-27311-00-00

Unavailable

2

BOLT(2GH)

90109-104E6-00

$9.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING, TENSION (4K0)

90506-18224-00

$5.60

5

SPRING, TENSION (4K0)

90506-26225-00

$11.49

6

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

7

LINK, SIDE STAND

3VD-27315-00-00

$7.99

8

FRT FOOTREST ASSEMBLY LASSEMBLY (L)

1WG-27410-00-00

Unavailable

9

COVER, FOOTREST

2GH-27413-00-00

$45.99

10

SCREW, PAN HEAD

98507-05014-00

$8.49

11

BOLT

90109-08224-00

$2.55

12

FRT FOOTREST ASSEMBLY RASSEMBLY (R)

1WG-27420-00-00

Unavailable

13

COVER, FOOTREST

2GH-27413-00-00

$45.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

90109-08224-00

$2.55

16

BRACKET 2

3HE-27442-00-00

Unavailable

17

BRACKET 3

3HE-27443-00-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

19

WASHER, WAVE(46X)

90206-17084-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

21

PLATE 1

1WG-27445-01-00

Unavailable

22

PLATE 2

1WG-27446-01-00

Unavailable

23

BRACKET, FOOTREST 2

1WG-27425-00-00

Unavailable

24

SCREW(4DN)

90149-06302-00

Unavailable
