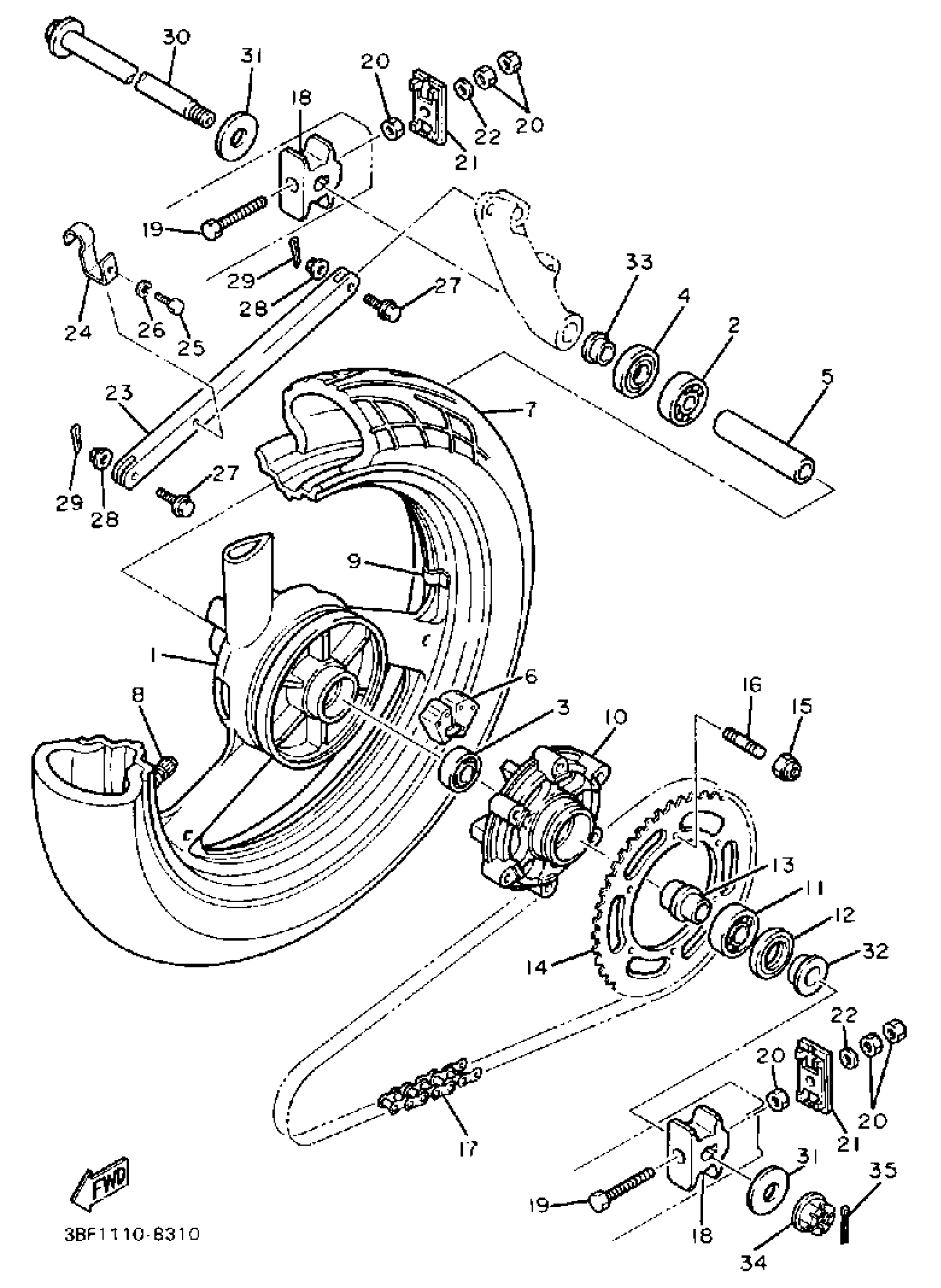

Yamaha FZR400SWC (FZR400 CA) 1989 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

1WG-25338-00-UA

Unavailable

2

BEARING(4HM)

93306-30317-00

$39.99

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

5

COLLAR(1FN)

90387-173M5-00

Unavailable

6

DAMPER

1KT-25364-00-00

Unavailable

7

140/60R-18 CY04ABS

94114-181U1-00

Unavailable

7

140/60R-18 CY04ABS

94114-181U1-00

Unavailable

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

CLUTCH, HUB

1KT-25366-03-00

Unavailable

11

BEARING (22K)

93306-20446-00

$41.99

12

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

13

COLLAR

90387-172J8-00

Unavailable

14

GEAR SPROCKET WHEEL (55T)

1HX-25455-20-00

Unavailable

15

NUT, SELF-LOCKING

90185-08169-00

Unavailable

16

BOLT, STUD(3TJ)

90116-08552-00

Unavailable

17

CHAIN

94582-34130-00

Unavailable

18

PULLER, CHAIN 1

1WG-25388-00-00

Unavailable

19

BOLT(1KT)

90101-08647-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

END 1

1KT-22174-00-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

BAR,TENSION

1WG-25371-00-00

Unavailable

24

HOLDER, BRKE HOSE 2

2GH-25876-00-00

Unavailable

25

BOLT(3JP)

97017-06010-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

28

NUT, FLANGE

95704-08500-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable

30

AXLE, WHEEL

3FH-25381-00-00

Unavailable

31

WASHER, PLATE(3HE)

90201-170T3-00

Unavailable

32

COLLAR

90387-172R7-00

Unavailable

33

COLLAR (3HE)

90387-177Y4-00

Unavailable

34

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable
