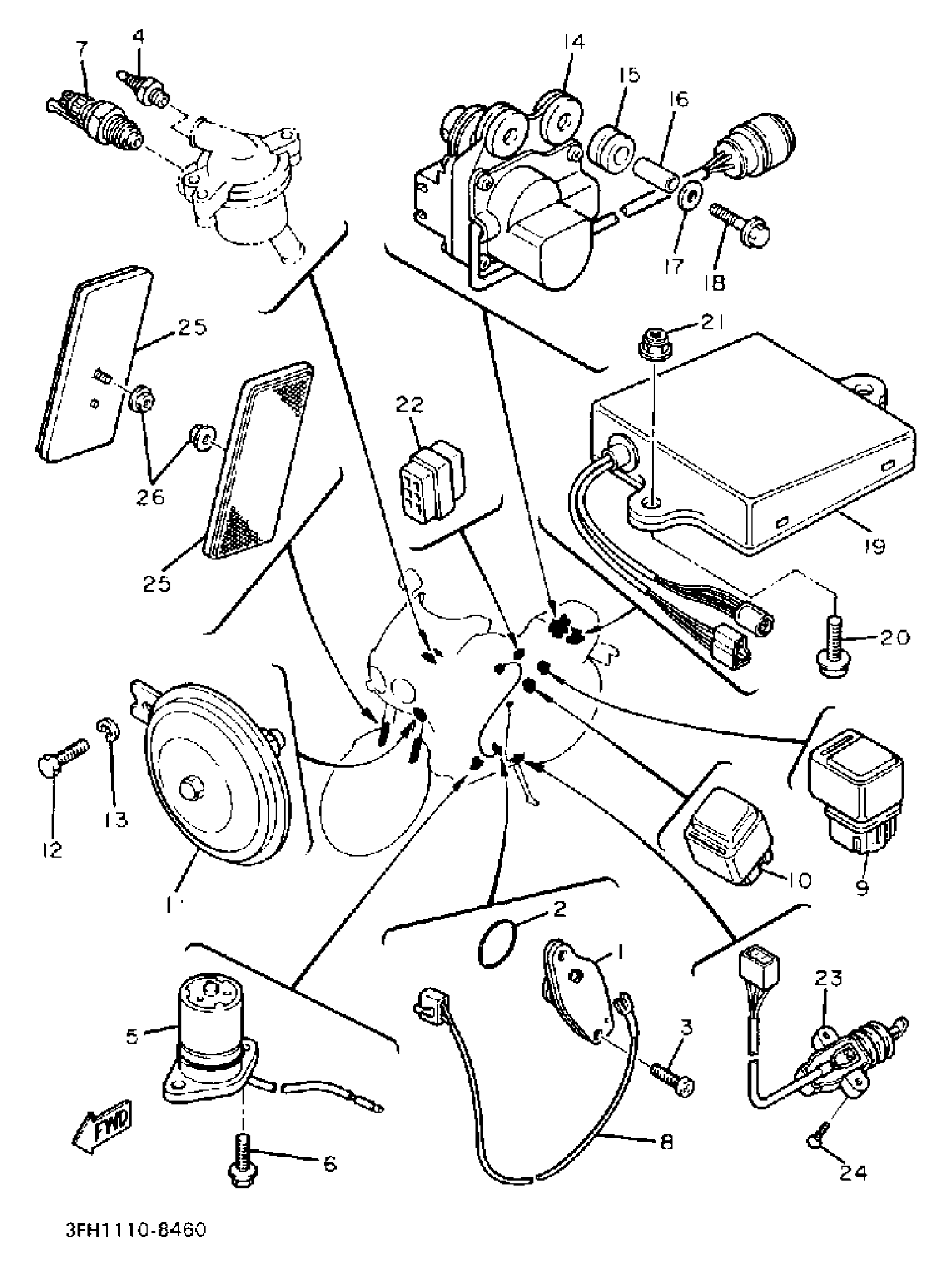

Yamaha FZR400SWC (FZR400 CA) 1989 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW, PAN

98507-06014-00

$8.49

4

THERMO UNIT

11H-83591-00-00

$105.99

5

OIL LEVEL GAUGE ASSEMBLY

1WG-85720-00-00

Unavailable

6

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

7

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

8

WIRE, LEAD

1WG-82541-00-00

Unavailable

9

RELAY ASSY

25G-81950-02-00

$47.99

10

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

11

HORN

4LR-83371-11-00

$49.99

12

BOLT(3JP)

97017-06010-00

$3.76

13

WASHER, SPRING

92907-06100-00

$4.25

14

SERVOMOTOR ASSEMBLY

3FH-85820-00-00

Unavailable

15

GROMMET 839774310000

90480-14023-00

$7.49

16

COLLAR (1M1)

90387-06553-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

BOLT, FLANGE

95817-06030-00

Unavailable

19

CONTROL UNIT ASSEMBLY

2TK-85830-00-00

Unavailable

20

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

21

NUT, U FLANGE

95604-06200-00

Unavailable

22

RELAY ASSY

4U8-81950-03-00

Unavailable

23

SWITCH, SIDE STAND

3FH-82566-00-00

Unavailable

24

SCREW, FLAT

98707-05014-00

Unavailable

25

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

26

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
