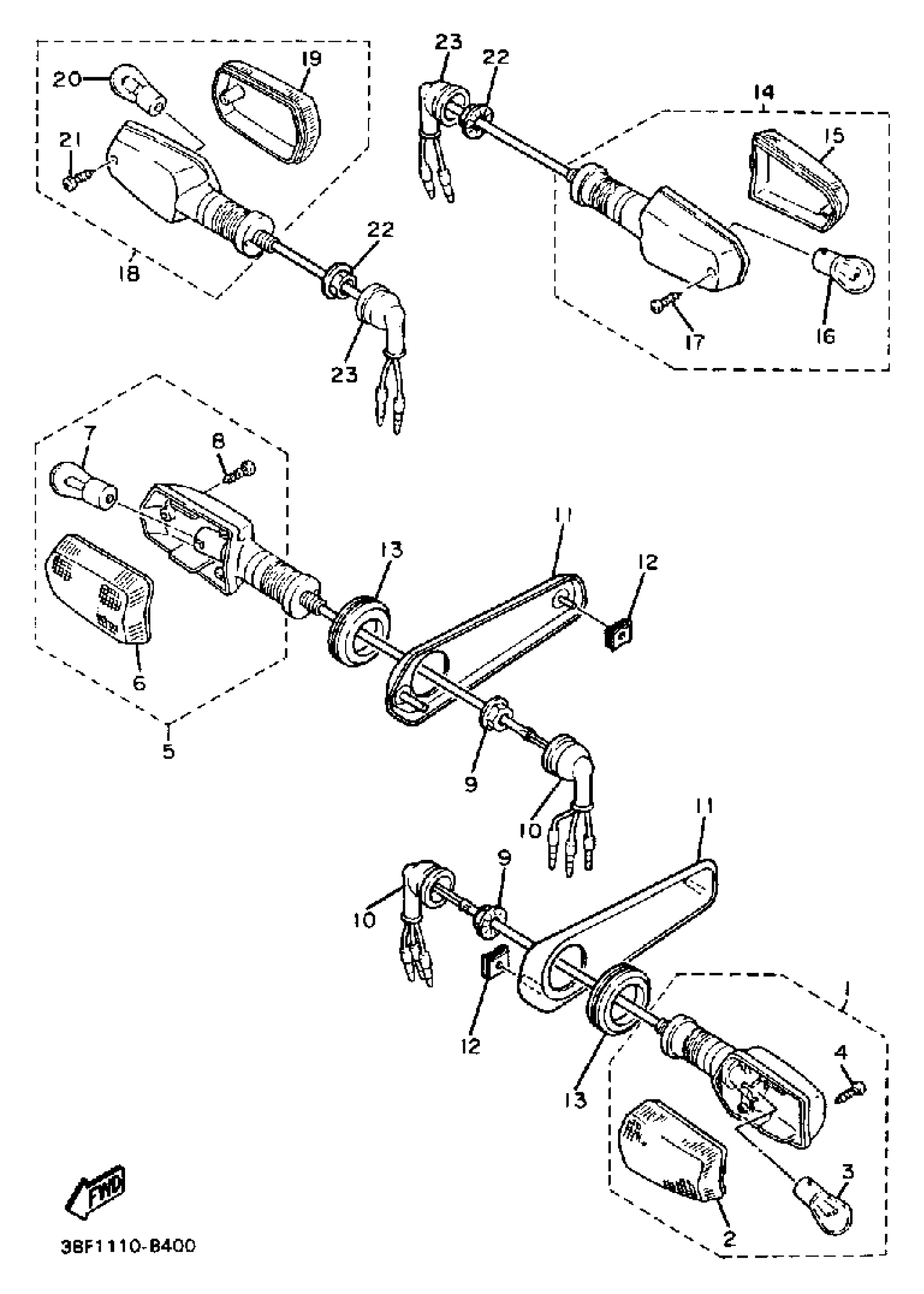

Yamaha FZR400SUC (FZR400 CA) 1988 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

$123.79

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

4

SCREW, PAN TAP.2

97707-40520-00

$6.65

5

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

6

LENS, FLASHER 2

51L-83342-01-00

$6.85

7

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

8

SCREW, PAN TAP.2

97707-40520-00

$6.65

9

NUT(3GG)

90179-12588-00

$5.25

10

CAP

46X-83365-00-00

Unavailable

11

COVER

2MA-28365-01-00

Unavailable

12

NUT, SPRING(2MA)

90183-04045-00

Unavailable

13

GROMMET(3GM)

90480-35526-00

$3.85

14

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

15

LENS, FLASHER 2

51L-83342-01-00

$6.85

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, PAN TAP.2

97707-40520-00

$6.65

18

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

Unavailable

19

LENS, FLASHER

51L-83332-01-00

Unavailable

20

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

21

SCREW, PAN TAP.2

97707-40520-00

$6.65

22

NUT(3GG)

90179-12588-00

$5.25

23

CAP

46X-83365-00-00

Unavailable
