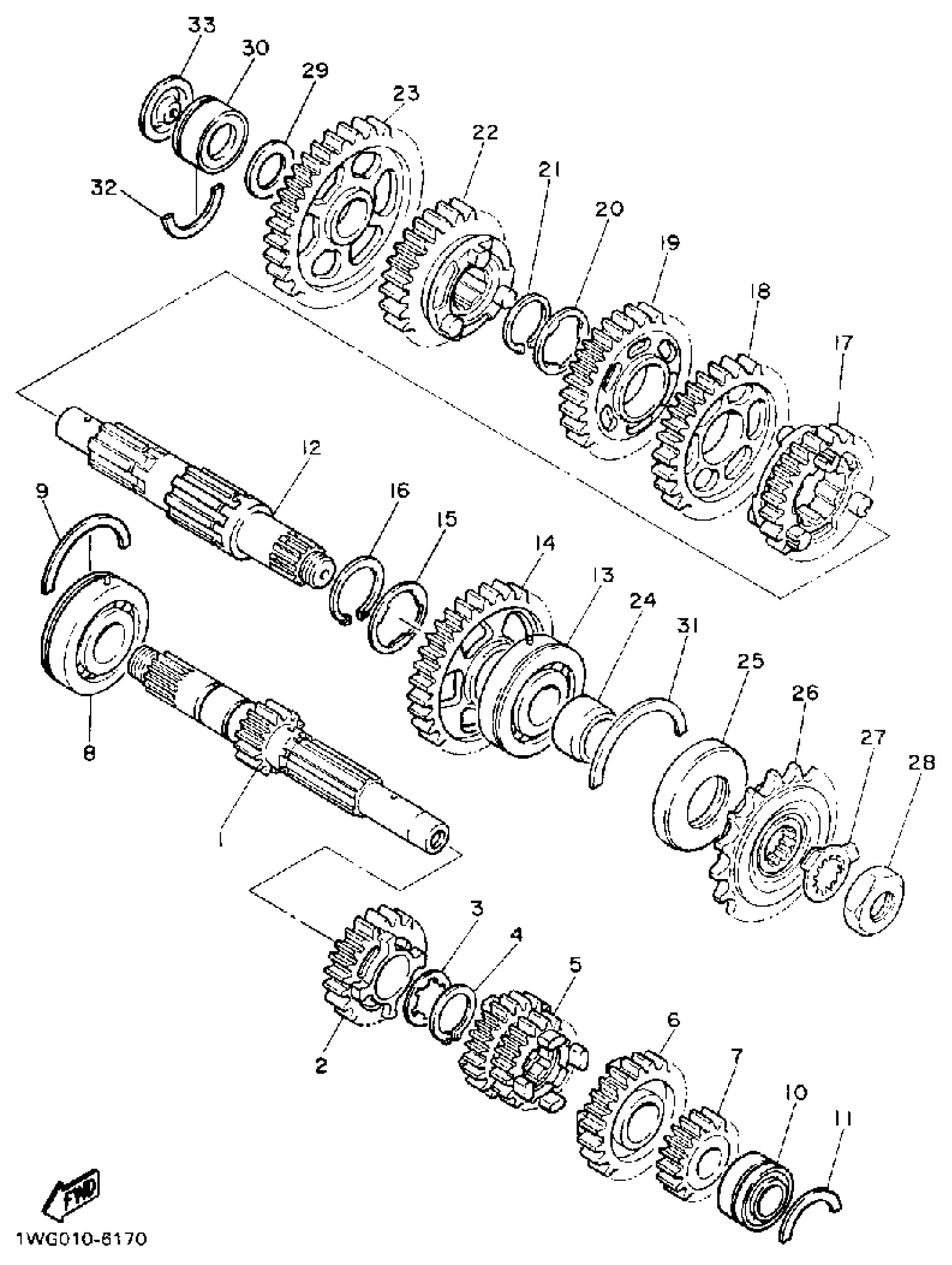

Yamaha FZR400SAC (FZR400 CA) 1990 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

1WG-17411-00-00

Unavailable

2

GEAR, 5TH PINION

1WG-17151-00-00

Unavailable

3

WASHER (5H0)

90209-18208-00

$8.49

4

CIRCLIP (537)

93410-22039-00

$8.49

5

GEAR, 3RD PINION (21T/23T)

3EN-17131-00-00

Unavailable

6

GEAR, 6TH PINION

1WG-17161-00-00

Unavailable

7

GEAR, 2ND PINION

1WG-17121-01-00

Unavailable

8

BEARING(1WG)

93306-37208-00

Unavailable

9

CIRCLIP(1WG)

93440-54152-00

$5.60

10

BEARING

93399-99933-00

Unavailable

11

CIR CLIP

278-17425-00-00

$8.99

12

AXLE,DRIVE

3HE-17421-00-00

Unavailable

13

BEARING(1WG)

93306-30550-00

$63.99

14

GEAR, 2ND WHEEL

1WG-17221-00-00

Unavailable

15

WASHER (3J3)

90209-27192-00

$8.49

16

CIRCLIP (3J3)

93440-30077-00

Unavailable

17

GEAR, 6TH WHEEL

1WG-17261-00-00

Unavailable

18

GEAR, 3RD WHEEL

1WG-17231-00-00

Unavailable

19

GEAR, 4TH WHEEL

3EN-17241-00-00

Unavailable

20

WASHER (3J3)

90209-22191-00

Unavailable

21

CIRCLIP (4L0)

93440-25084-00

Unavailable

22

GEAR, 5TH WHEEL

1WG-17251-00-00

Unavailable

23

GEAR, 1ST WHEEL

1WG-17211-00-00

Unavailable

24

COLLAR(1WG)

90387-252R2-00

Unavailable

25

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

26

SPROCKET, DRIVE

3FH-17460-00-00

Unavailable

27

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

28

NUT 152174630000

90179-18020-00

Unavailable

29

WASHER PLATE 328171160000

90201-20276-00

Unavailable

30

BEARING, CYL.#11

93311-42045-00

Unavailable

31

CIRCLIP

278-17424-01-00

Unavailable

32

CIR CLIP

278-17425-00-00

$8.99

33

NOZZLE

4G0-17433-01-00

Unavailable
