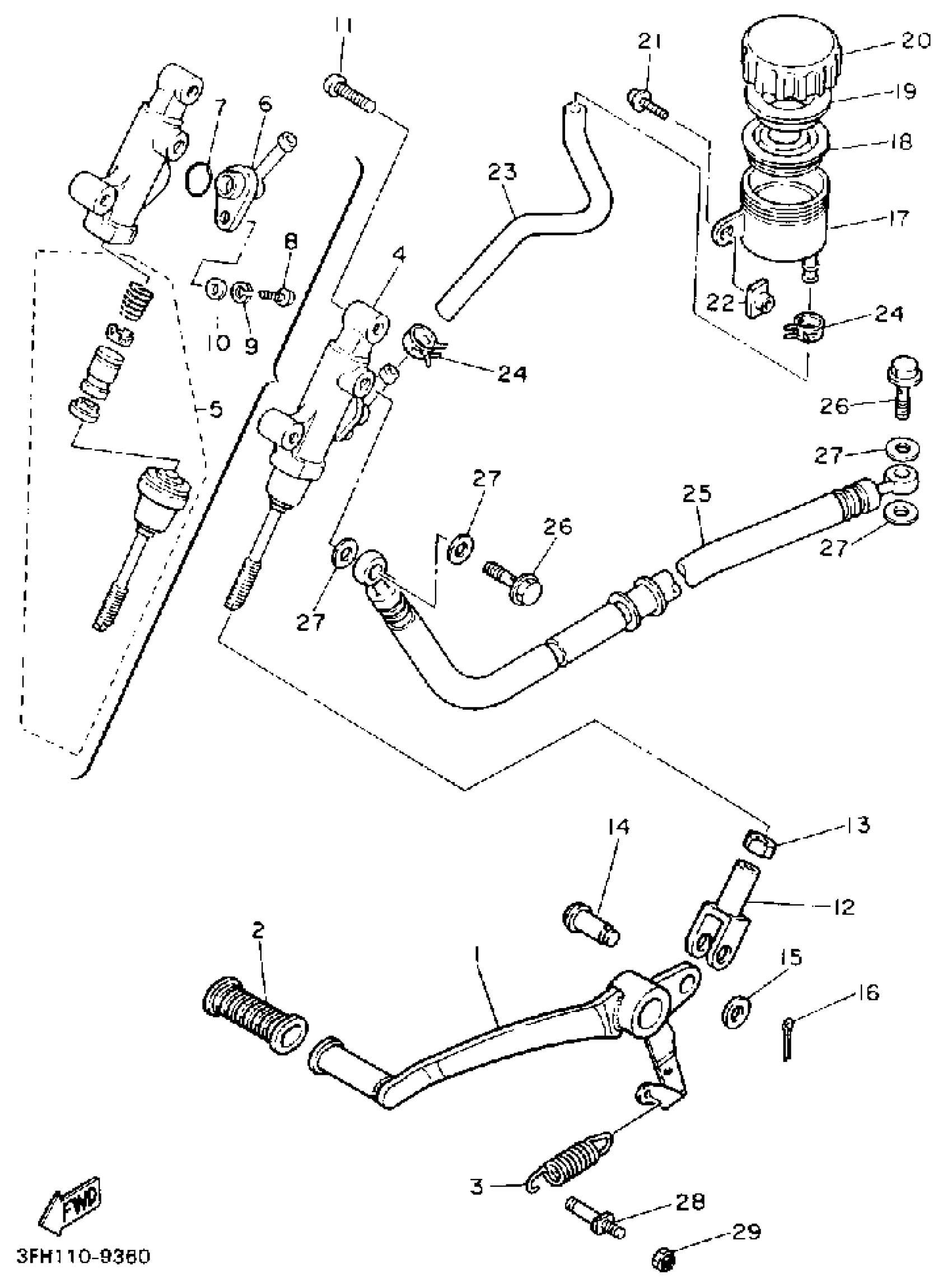

Yamaha FZR400SAC (FZR400 CA) 1990 REAR MASTER CYLINDER Diagram

PEDAL, BRAKE

3FH-27211-50-00

Unavailable

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

SPRING, TENSION

90506-20306-00

Unavailable

MASTER CYLINDER ASSEMBLY

1WG-25850-50-00

Unavailable

CYL KIT,MASTER

1WG-W0042-50-00

Unavailable

CONNECTOR

29L-2582A-50-00

Unavailable

O-RING (22U)

93210-15566-00

$7.49

SCREW, PAN HEAD

98511-04012-00

Unavailable

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

WASHER, PLAIN (646)

92990-04600-00

$5.99

BOLT, BUTTON

92017-08030-00

$9.49

JOINT

31A-27222-00-00

$43.99

. NUT

95380-08700-00

Unavailable

PIN W/HOLE 307181180000

90240-08013-00

$8.49

WASHER, PLATE 1562722600

90201-08083-00

$9.49

PIN, COTTER

91490-20025-00

Unavailable

TANK, RESERVOIR

31A-25894-01-00

Unavailable

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

UNAVAILABLE IN PRICE BOOK

90150-60560-0

Unavailable

PLATE

31A-14477-10-00

Unavailable

HOSE, RESERVOIR

1WG-25895-00-00

Unavailable

CLIP (5K4)

90467-14057-00

Unavailable

BRAKE HOSE SET(3EN)

99999-02507-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

PIN, PEDAL CRANK

(3FH-27813-00-00)

Unavailable

NUT, U

95617-05100-00

Unavailable
