1990 Yamaha FZR400 (FZR400A) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

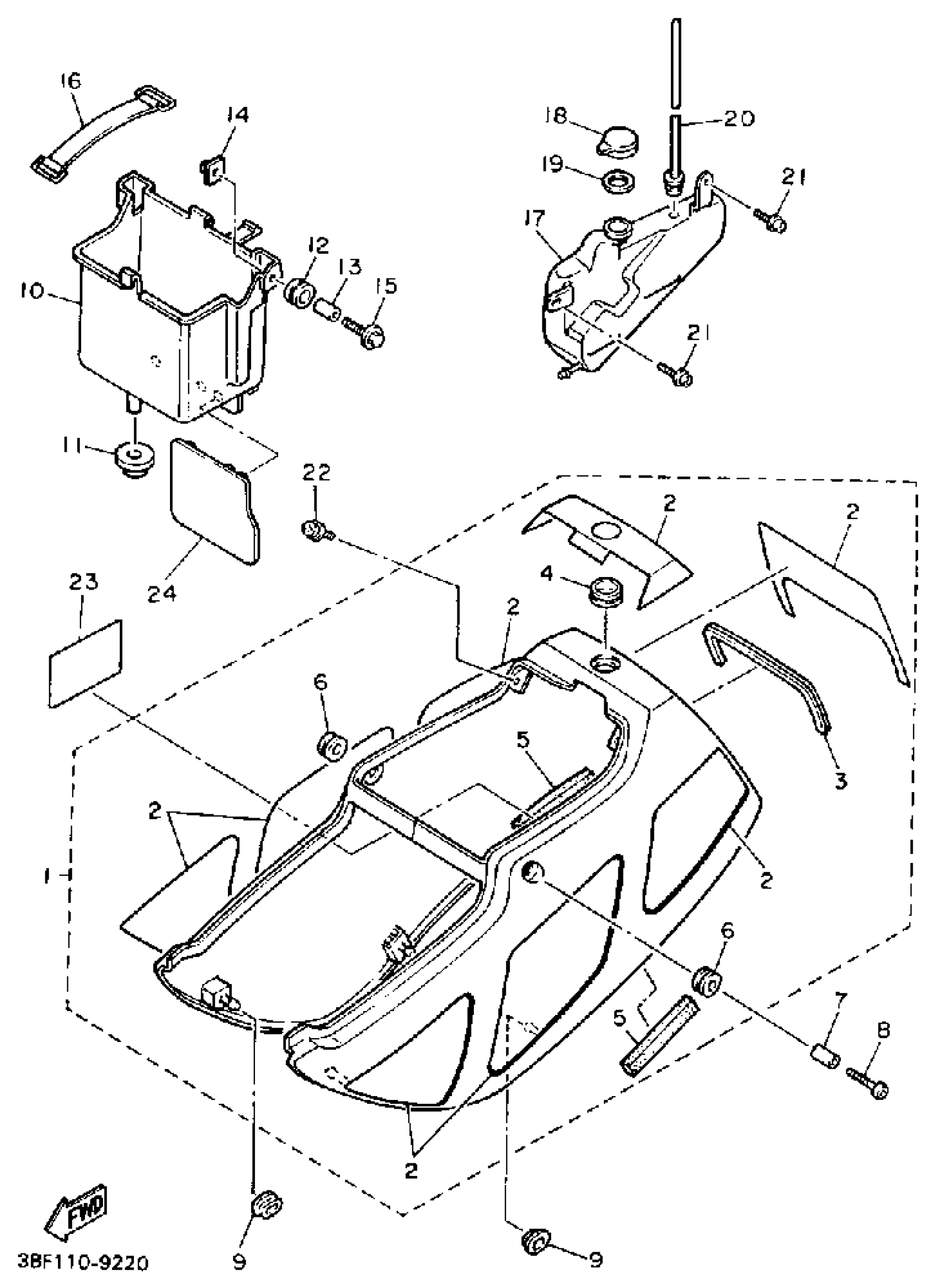

1990 Yamaha FZR400 (FZR400A) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

1WG-Y2171-30-KM

1
Out of stock

2

. GRAPHIC SET 1

3BF-2173L-00-00

1
Out of stock

3

MOLD 2

36Y-28346-00-00

1
Out of stock

4

. GROMMET

14T-21773-00-00

1
Out of stock

5

DAMPER

3RW-21639-00-00

1
Out of stock

6

GROMMET(3AK)

90480-18495-00

1
Out of stock

7

COLLAR

90387-1005P-00

1
Out of stock

8

BOLT, HEX SKT HEADSOCKET HEAD

90110-06135-00

1
Out of stock

9

GROMMET(41Y)

90480-01401-00

1
Out of stock

10

BOX, BATTERY

1WG-2177G-00-00

1
Out of stock

11

GROMMET (31A)

90480-22362-00

1
Out of stock

12

GROMET (3X3)

90480-14229-00

1
Out of stock

13

COLLAR 437216330000

90387-07391-00

—
Out of stock

14

PLATE

31A-14477-10-00

1
Out of stock

15

BOLT, WITH WASHER(2WG)

90119-06172-00

1
Out of stock

16

BAND,BATTERY

7H3-82131-00-00

—
Out of stock

17

TANK, RECOVERY

1WG-21871-00-00

1
Out of stock

18

CAP

1AA-21815-00-00

—
Out of stock

19

GASKET

1AA-21874-00-00

—
Out of stock

20

PIPE, OVERFLOW (L1400)

4BH-21877-00-00

—
Out of stock

21

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock

22

SCREW, W/WASHER (4L0)

90159-06060-00

—
Out of stock

23

PLATE, EPA U49

3BF-2179V-50-00

1
Out of stock

24

FLAP

34X-21691-00-00

—
Out of stock
