1990 Yamaha FZR400 (FZR400A) Frame Diagram

← All diagrams

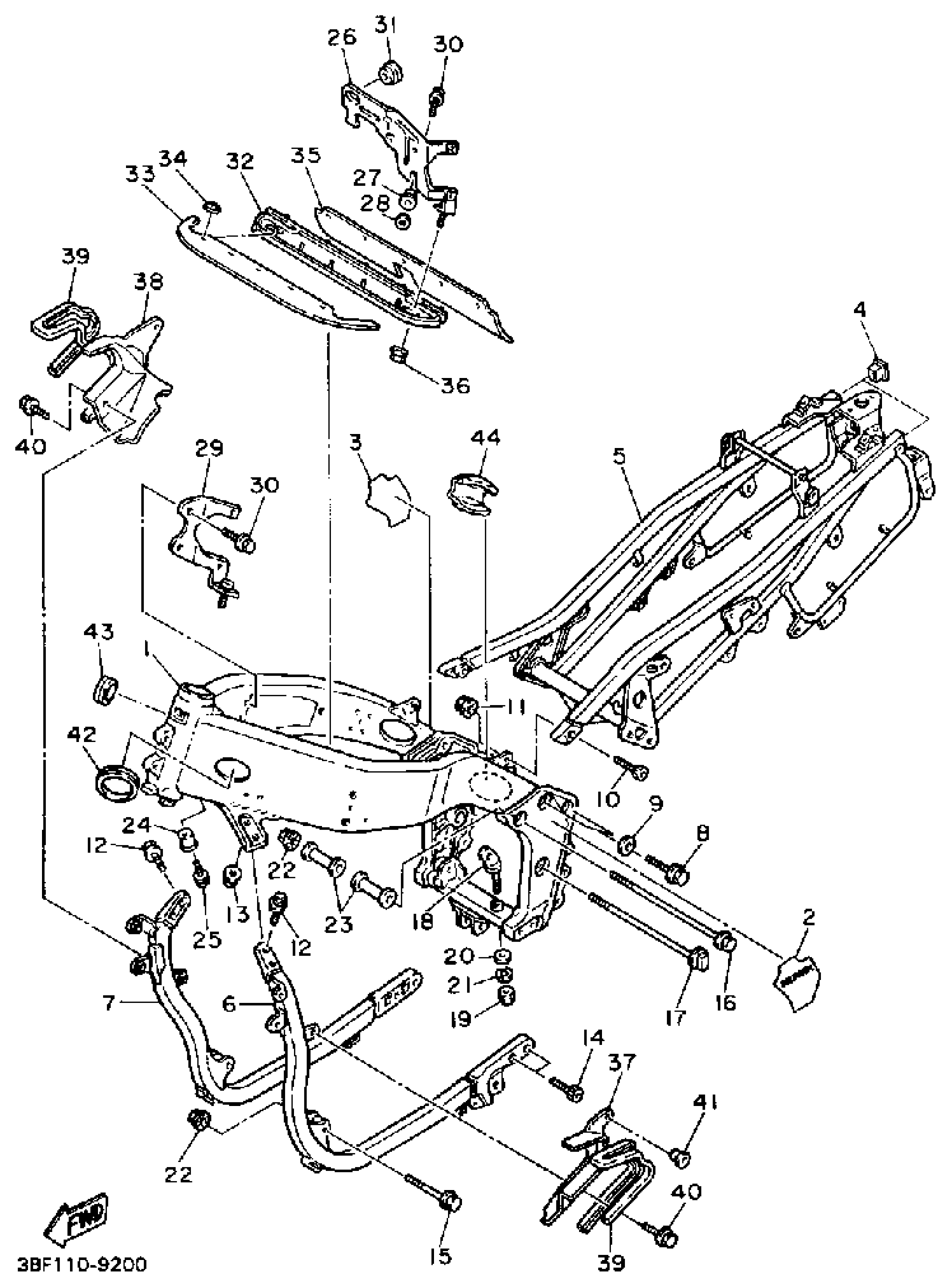

Find the part on the Frame diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha FZR400 (FZR400A) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

3FH-21110-00-00

1
Out of stock

2

EMBLEM 3

1WG-2119G-00-00

1
Out of stock

3

EMBLEM 4

1WG-2119H-00-00

1
Out of stock

4

CAP

1WG-2143A-00-00

1

$6.55

In stock

5

FRAME, REAR

1WG-21190-00-35

1
Out of stock

6

TUBE, DOWN

3FH-21140-00-35

1
Out of stock

7

DOWN TUBE COMP.2

1WG-21150-00-35

1
Out of stock

8

BOLT, FLANGE(JN5)

95817-12030-00

1

$7.02

In stock

9

WASHER, PLATE(51Y)

90201-120K4-00

1
Out of stock

10

BOLT, SOCKET

91317-10030-00

1

$6.85

In stock

11

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

12

BOLT, FLANGE

95814-10040-00

1

$3.69

In stock

13

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

14

BOLT,SOCKET

91314-08025-00

1

$6.17

In stock

15

BOLT, FLANGE

95817-10080-00

1

$5.00

In stock

16

BOLT,FLANGE

95817-10295-00

1
Out of stock

17

BOLT,FLANGE

95817-10165-00

—
Out of stock

18

BRACKET, REAR LWR 1

1WG-21427-00-00

1
Out of stock

19

NUT(3DM)

95304-12600-00

—

$6.68

In stock

20

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

21

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

22

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

23

SPACER

1WG-21459-00-00

1
Out of stock

24

BRACKET, RADIATOR 3

1WG-2142M-00-00

1
Out of stock

25

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

26

BRACKET, AIR CLEANR

1WG-21147-00-00

1
Out of stock

27

C0LLAR

90387-062M9-00

—
Out of stock

28

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

29

BRACKET, AIR CLEANR

1WG-21148-00-00

1
Out of stock

30

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

31

GROMMET (509)

90480-18171-00

—

$6.55

In stock

32

GUIDE, AIR

1WG-2137Y-00-00

1
Out of stock

33

COVER 2

1WG-2139R-00-00

1
Out of stock

34

NUT 6504269100

90183-05003-00

—
Out of stock

35

COVER

1WG-2139W-00-00

1
Out of stock

36

NUT, W/ WASHER

95707-06600-00

—

$5.86

In stock

37

SCOOP, AIR 1

1WG-2137W-00-00

1
Out of stock

38

SCOOP, AIR 2

1WG-2137X-00-00

1
Out of stock

39

DAMPER 2

1WG-2139U-00-00

1
Out of stock

40

BOLT, WITH WASHER

90119-06093-00

1
Out of stock

41

COLLAR (8G8)

90387-06681-00

—

$6.62

In stock

42

COVER 2

1WG-2117M-00-00

1
Out of stock

43

COVER 3

1WG-2117N-00-00

1
Out of stock

44

COVER 6

1WG-2117U-00-00

1
Out of stock
