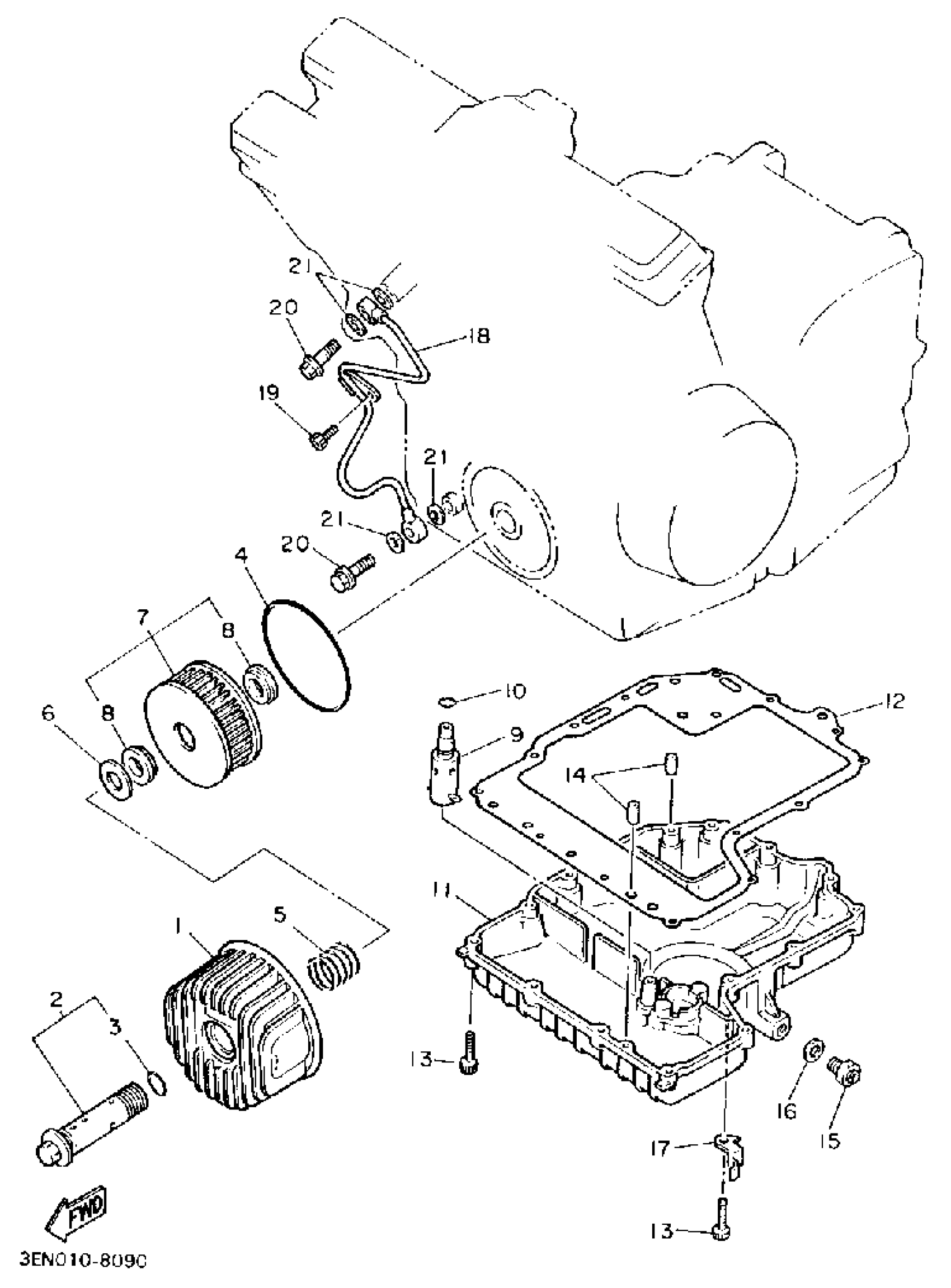

Yamaha FZR400A (FZR400) 1990 OIL FILTER Diagram

#

Description
Price

1

COVER, OIL ELEMENT

4H7-13447-00-00

Unavailable

2

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

3

O-RING (26H)

93210-16629-00

$7.49

4

O-RING(1KF)

93210-87723-00

Unavailable

5

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

6

WASHER, PLATE (1L9)

90201-21608-00

$8.49

7

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

8

GROMMET (1L9)

90480-23193-00

Unavailable

9

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

10

O-RING (611)

93210-10096-00

$3.76

11

COVER, STRAINER

1WG-13417-00-00

Unavailable

12

GASKET, STRAINER COVER

4TV-13414-00-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$5.60

14

PIN, DOWEL(3XW)

91808-16023-00

$8.49

15

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

16

GASKET

214-11198-01-00

Unavailable

17

CLAMP

90465-10306-00

Unavailable

18

PIPE, DELIVERY 1

1WG-13161-00-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

BOLT, UNION(1HX)

90401-10106-00

Unavailable

21

GASKET (5R6)

90430-10171-00

Unavailable
