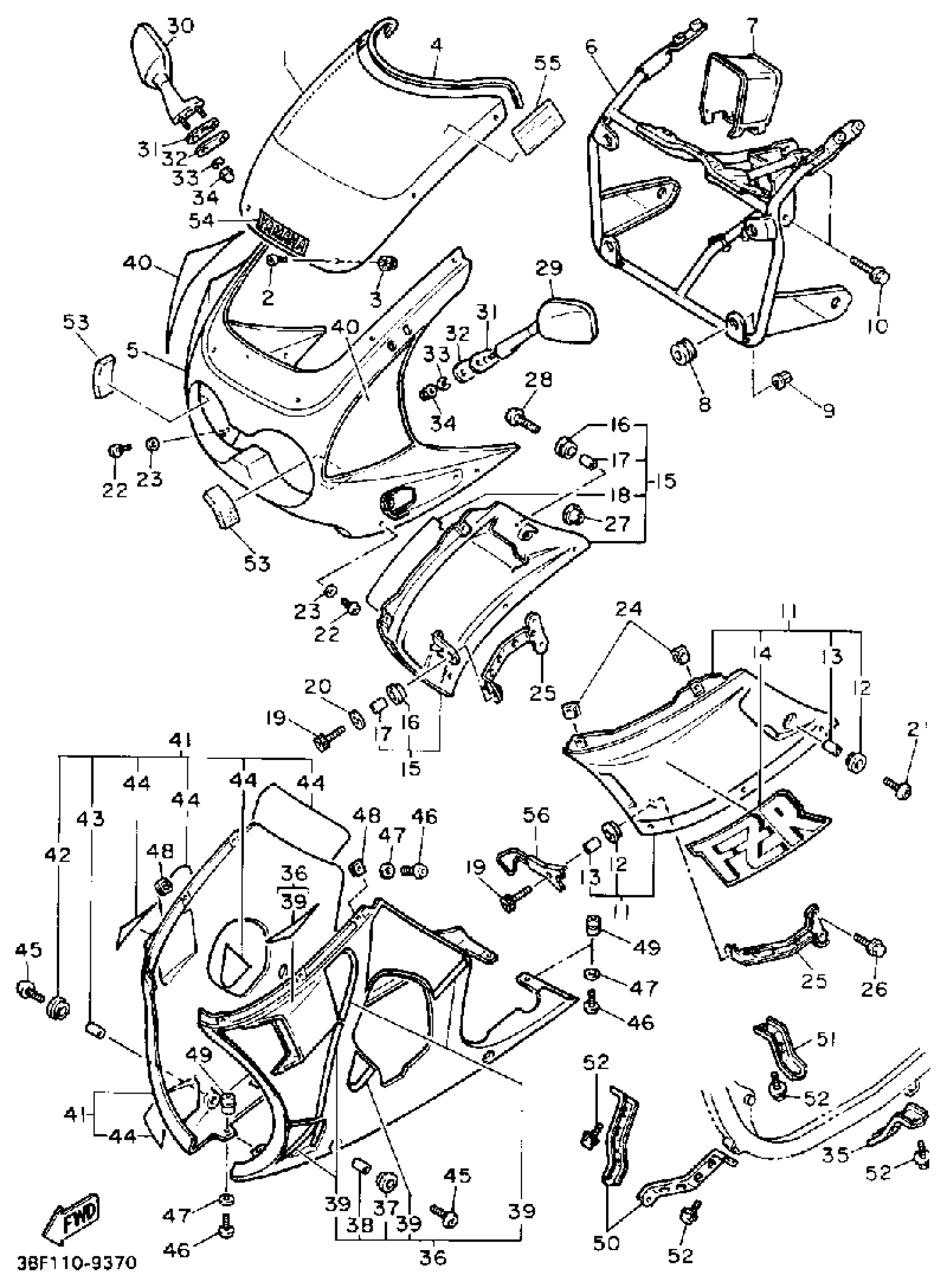

Yamaha FZR400A (FZR400) 1990 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

2AX-28381-00-00

Unavailable

2

SCREW, ROUND HEAD(46X)

90150-05020-00

$9.49

3

NUT, FLANGE(3GM)

95707-05500-00

$8.49

4

TRIM

52E-28376-00-00

Unavailable

5

BODY, FRONT UPPER 1

3FH-2835G-00-KM

Unavailable

6

STAY 1

3FH-28356-00-00

Unavailable

7

COVER

1WG-28365-00-00

Unavailable

8

GROMET (3X3)

90480-14229-00

$8.49

9

NUT (1AE)

90179-06500-00

$7.49

10

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

11

PANEL ASSEMBLY (LEFT)

1WG-Y283U-30-KM

Unavailable

12

GROMMET

90480-13014-00

$8.49

13

COLLAR(51L)

90387-067K6-00

$10.49

14

. EMBLEM

3BF-28328-00-00

Unavailable

15

PANEL ASSEMBLY (RIGHT)

1WG-Y283V-30-KM

Unavailable

16

GROMMET

90480-13014-00

$8.49

17

COLLAR(51L)

90387-067K6-00

$10.49

18

. EMBLEM

3BF-28338-00-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

23

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

24

NUT, SPRING

90183-051A0-00

Unavailable

25

STAY, SIDE 1

1WG-2831U-00-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

COLLAR 437216330000

90387-07391-00

Unavailable

28

BOLT, HEX SKT HEADSOCKET HEAD

90110-06135-00

Unavailable

29

MIRROR ASSEMBLYASSY (LEFT)

2KR-26280-00-00

Unavailable

30

MIRROR ASSEMBLYASSY (RIGHT)

2KR-26290-00-00

Unavailable

31

DAMPER

1KT-28371-00-00

Unavailable

32

DAMPER

1KT-28372-00-00

Unavailable

33

WASHER, SPRING

92907-06100-00

Unavailable

34

NUT(4MY)

95307-06800-00

Unavailable

35

BRACKET 2

3FH-2836E-00-00

Unavailable

36

BODY, FRT LOWER LFT

1WG-Y283J-40-KM

Unavailable

37

GROMMET

90480-13014-00

$8.49

38

COLLAR(51L)

90387-067K6-00

$10.49

39

. GRAPHICSET3 COWLINCOWLING

3BF-2836V-00-00

Unavailable

40

GRPHC SET, COWLINGCOWLING

3BF-28390-00-00

Unavailable

41

BODY, FRT LOWER RT

1WG-Y283K-40-KM

Unavailable

42

GROMMET

90480-13014-00

$8.49

43

COLLAR(51L)

90387-067K6-00

$10.49

44

. GRAPHICSET4 COWLINCOWLING

3BF-2836W-00-00

Unavailable

45

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

47

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

48

NUT, SPRING

90183-051A0-00

Unavailable

49

NUT(1KT)

90179-05523-00

Unavailable

50

BRACKET 1

1WG-2836A-00-00

Unavailable

51

BRACKET 2

1WG-2836E-00-00

Unavailable

52

BOLT, FLANGE

95817-06010-00

Unavailable

53

DAMPER 2

8K4-77374-00-00

Unavailable

54

EMBLEM, YAMAHA

99246-00100-00

Unavailable

55

LABEL, CAUTION

3CK-2835Y-00-00

Unavailable

56

HOLDER

3BF-21596-00-00

Unavailable
