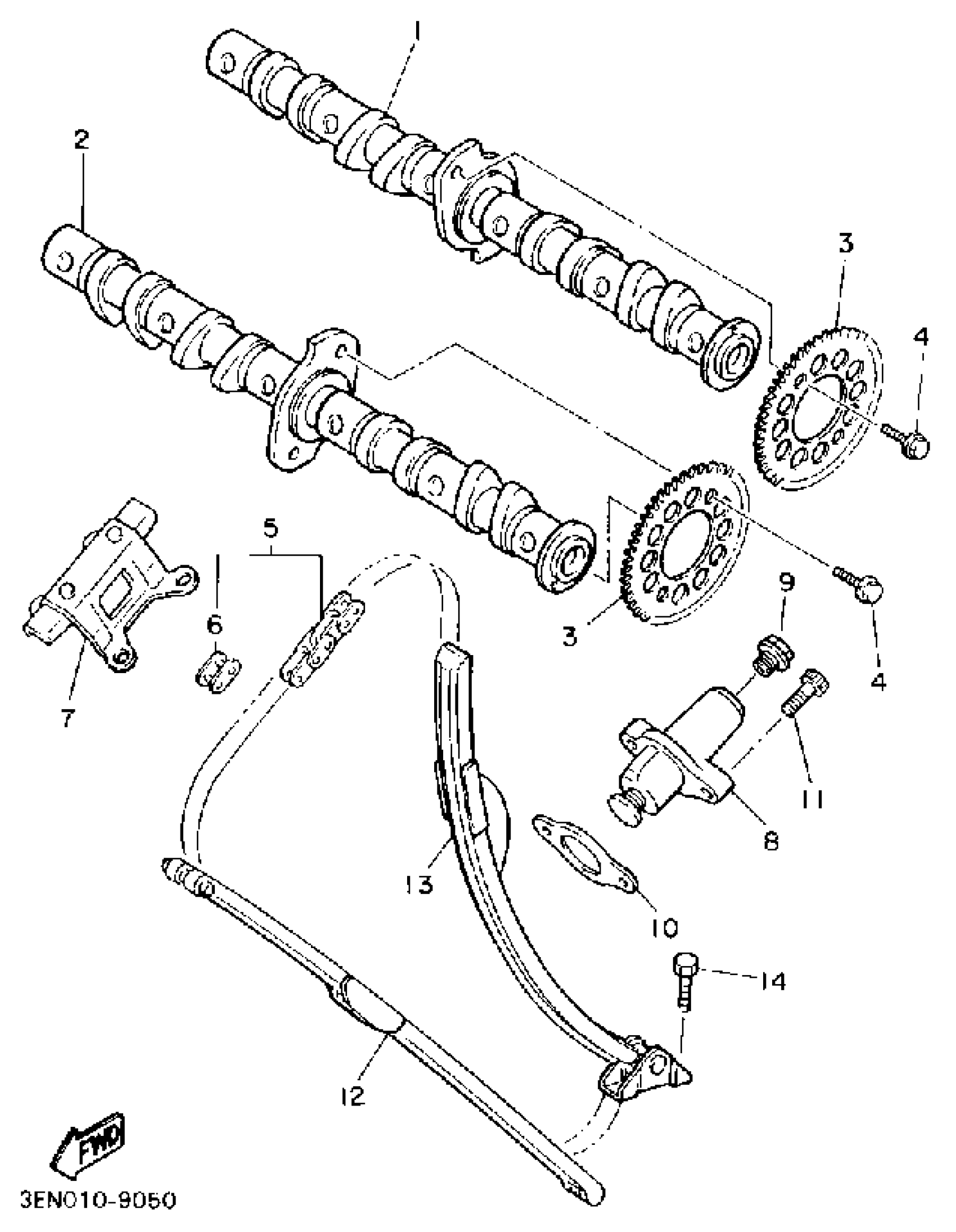

Yamaha FZR400A (FZR400) 1990 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

3BF-12171-00-00

Unavailable

2

CAMSHAFT 2

3BF-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

1WG-12176-00-00

Unavailable

4

BOLT, WASHER BASED(1HX)

90105-07385-00

Unavailable

5

CHAIN BF04MA

94590-95112-00

Unavailable

6

. MASTER LINK

94690-95021-00

Unavailable

7

GUIDE, STOPPER 2

1WG-12241-00-00

Unavailable

8

TENSNR ASSEMBLY, CAM CHNCAM CHAIN

2TK-12210-01-00

Unavailable

9

BOLT(1WG)

90109-112F1-00

Unavailable

10

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

11

BOLT,SOCKET

91317-06025-00

$5.60

12

DAMPER, CHAIN 1

1WG-12251-00-00

Unavailable

13

DAMPER, CHAIN 2

1WG-12252-00-00

Unavailable

14

BOLT(1FN)

90109-065A8-00

Unavailable
